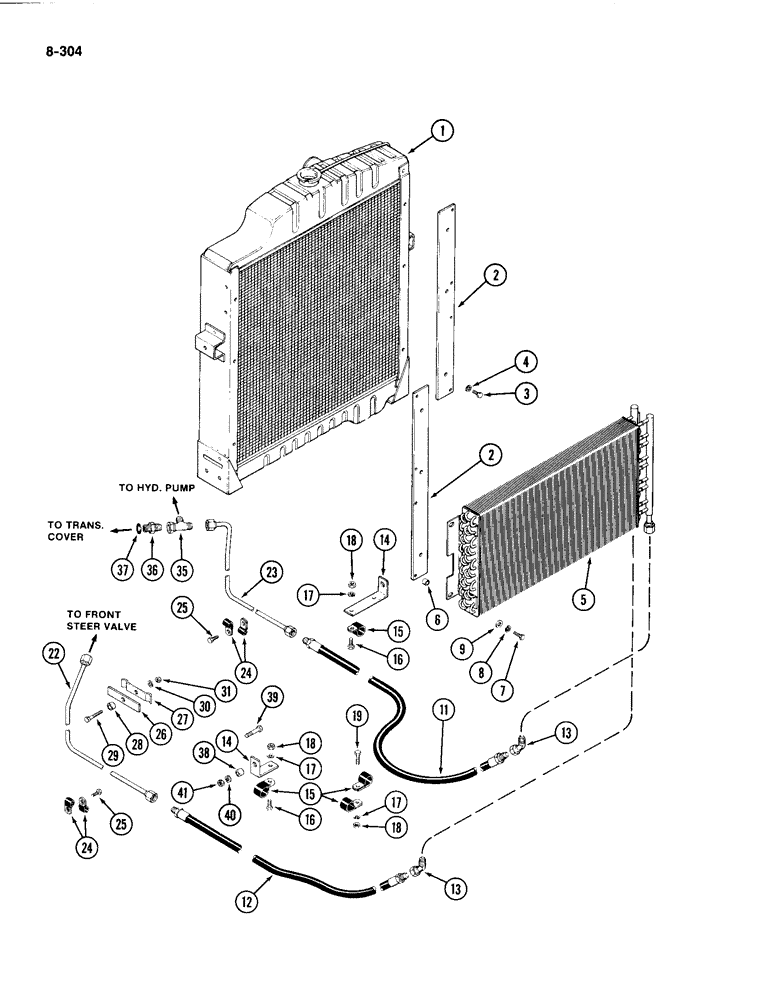

Запчасти Case IH 4494 (8-304) - HYDRAULIC OIL COOLER (08) - HYDRAULICS

1

REF

INSTRUCTION

RADIATOR - engine coolant (See Figure 2-4)

1шт.

2

A149680

SUPPORT

-, Serial Range: cooler-radiator

2шт.

3

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

A151159

COOLER

- hydraulic oil

1шт.

6

A37418

SPACER

- cooler mounting

4шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

1шт.

11

A162280

HYDRAULIC HOSE,0.50" ID x 69.00", SAE 100R2 per SAE J517

- Return, Oil cooler 0.50" ID x 69.00", SAE 100R2 per SAE J517

1шт.

12

A162281

HOSE

- inlet, oil cooler

1шт.

13

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

ASSEMBLY - 90 degree 1/2 tube x 3/4-16 inch

2шт.

14

A138761

SUPPORT

- hose clamp

2шт.

15

R14668

CLAMP

- hose

4шт.

16

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

19

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

22

A167002

TUBE

- inlet hose, oil cooler

1шт.

23

A169976

TUBE

- return hose, oil cooler

1шт.

24

49838

CLAMP

- tube

5шт.

25

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

26

A140431

SUPPORT

STRAP - clamp, 2 tube

1шт.

27

A140432

CLAMP

- 2 tube

1шт.

28

A140442

BUSHING

SPACER - clamp, 1 inch (25 mm) long

1шт.

29

113-640

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

30

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

1шт.

31

129-106

NUT,9/16"-12, G5

- hex, 3/8 inch NC

1шт.

35

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- swivel, 1/2 tube 3/4-16 inch thread

1шт.

36

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - 1/2 tube 3/4-16 thread, Incl. Ref 37

1шт.

38

A76093

BUSHING

SPACER - inled tube clamp, 1/2 inch (13 mm) long

1шт.

39

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

40

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

41

9635082

NUT,5/16" - 18, Gr 5

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch width (16 ID x 2 mm width)

1шт.
