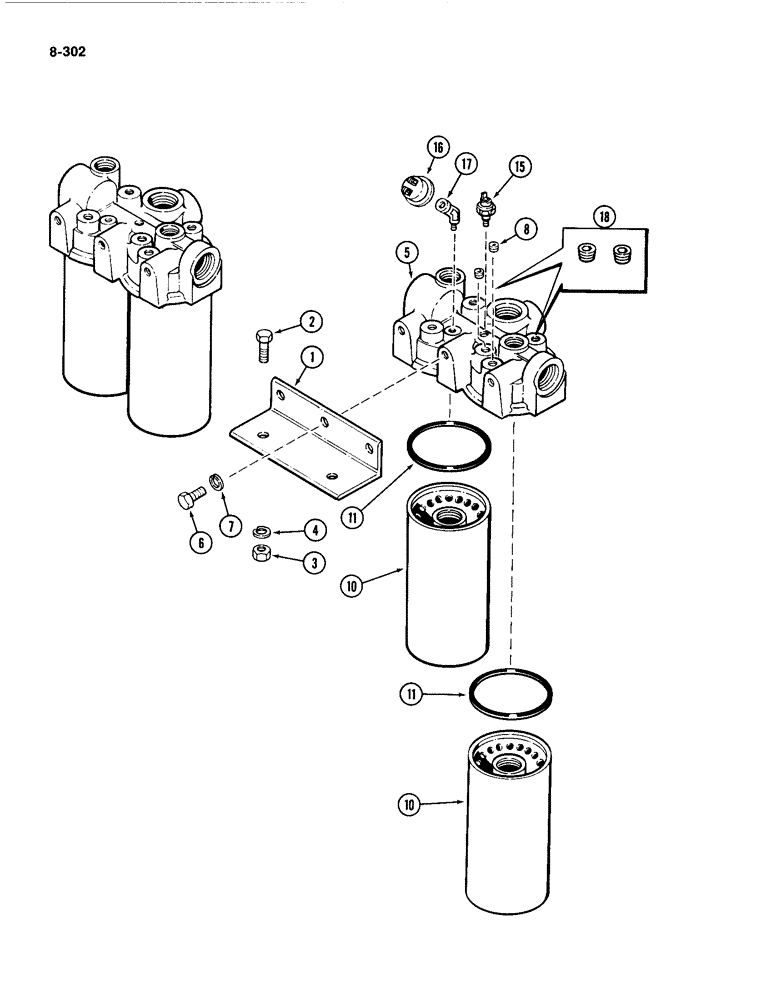

Запчасти Case IH 4494 (8-302) - HYDRAULIC OIL FILTER ASSEMBLY (08) - HYDRAULICS

1

A137952

BRACKET

- filter mounting

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

3

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

A177136

HOUSING

- filter (Replaces A143469)

1шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- hex, 1/2 NC x 1-3/4 inch

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

221-841

PLUG

- hex socket pipe, 1/4 inch PT

2шт.

A176594

HYDRAULIC OIL FILTER

KIT - replacement, hydraulic filter element

1шт.

A161846

FILTER

KIT - replacement, hydraulic filter element

1шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT - filter, 11-3/16 inch long (284 mm) (Order A176594), Includes: Ref. 10 and 11

2шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT - filter, 10-7/8 inch long (276 mm) (Order A161846)

2шт.

11

A139281

GASKET

- element

2шт.

15

A167895

SWITCH

- filter pressure sender

1шт.

16

A161461

SWITCH

- transmission differential pressure

1шт.

17

221-1401

ELBOW,45º, 1/8"-27, NPT

- 45 degree street, 1/8 inch PT

1шт.

18

221-841

PLUG

- hex socket, 1/4 inch PT (without PTO)

2шт.
