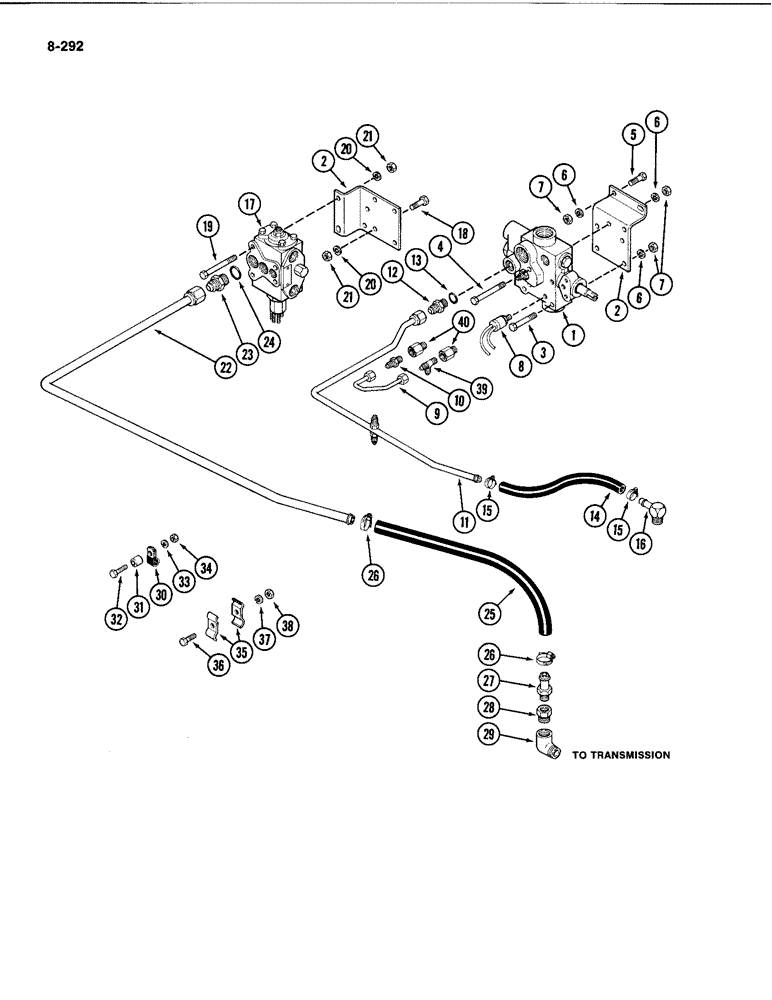

Запчасти Case IH 4494 (8-292) - HYDRAULIC PRESSURE REGULATOR AND RETURN (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator (See Figure 8-294)

1шт.

2

A161768

BRACKET

- mounting, regulator valve and rear stssring valve

2шт.

3

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

4

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

8

A162422

SWITCH

ASSEMBLY - transmission oil pressure

1шт.

9

A152299

TUBE

ASSEMBLY - sump bypass

1шт.

10

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, 1/4 tube 7/16 thread x 1/8 inch PT

1шт.

11

A162253

TUBE

ASSEMBLY - regulator valve to sump, Includes: Ref. 13

1шт.

14

L41213

HOSE

- regulator valve drain 28 inch

1шт.

15

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 (14 mm) to 1-1/16 inch (27 mm)

2шт.

16

217-335

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

ELBOW - 90 degree, 1/2 hose stem x 1/8 inch PT

1шт.

17

REF

INSTRUCTION

VALVE ASSEMBLY - rear steering (See Figure 5-136)

1шт.

18

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

19

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

22

A161878

TUBE

ASSEMBLY - rear steering, Serial Range: return-sump

1шт.

23

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR ASSEMBLY - straight, 5/8 tube 3/4 inch thread, Includes: Ref. 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32 inch width (19 ID x 3 mm width)

1шт.

25

A160209

HYDRAULIC HOSE,19 mm ID x 838.20 mm, SAE 30R2 TYPE 1 SAE J30

0.75" ID x 33.00", SAE 30R2 - Rear Steering Valve Return (With PTO)

1шт.

25

A160450

HOSE,0.75" ID x 45.00", SAE 30R2 TYPE 1 PER SAE J30

0.75" ID x 45.00", SAE30 R2 type 1 per J30 - Rear Steering Valve Return (Without PTO)

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 (30 mm) to 1-3/4 inch (45 mm)

2шт.

27

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

CONNECTOR - straight, 3/4 hose stem x 3/4 inch PT

1шт.

28

221-65

REDUCER,Hex, 1" x 3/4" NPT

FITTING - reducer, 1 PT to 3/4 inch PT

1шт.

29

221-1416

ELBOW,90 Degree, 1"-11 1/2, NPT

- 90 degree, 1 male PT x 1 inch female PT

1шт.

30

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- return tube

1шт.

31

A37418

SPACER

- tube clamp, 1/2 inch (13 mm) long

1шт.

32

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

35

A139065

CLAMP

- tube

2шт.

36

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

38

9635082

NUT,5/16" - 18, Gr 5

1шт.

39

218-611

TEE,7/16"-20, 37 Degree x 1/8"-27, NPTF Run

- connector, 1/4 tube 7/16-20 thread x 1/8 inch PT

1шт.

40

217-1

ADAPTER

ADAPTOR - 1/8 PT x 1/8 inch PT

2шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch width (16 ID x 2 mm width)

1шт.
