Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION

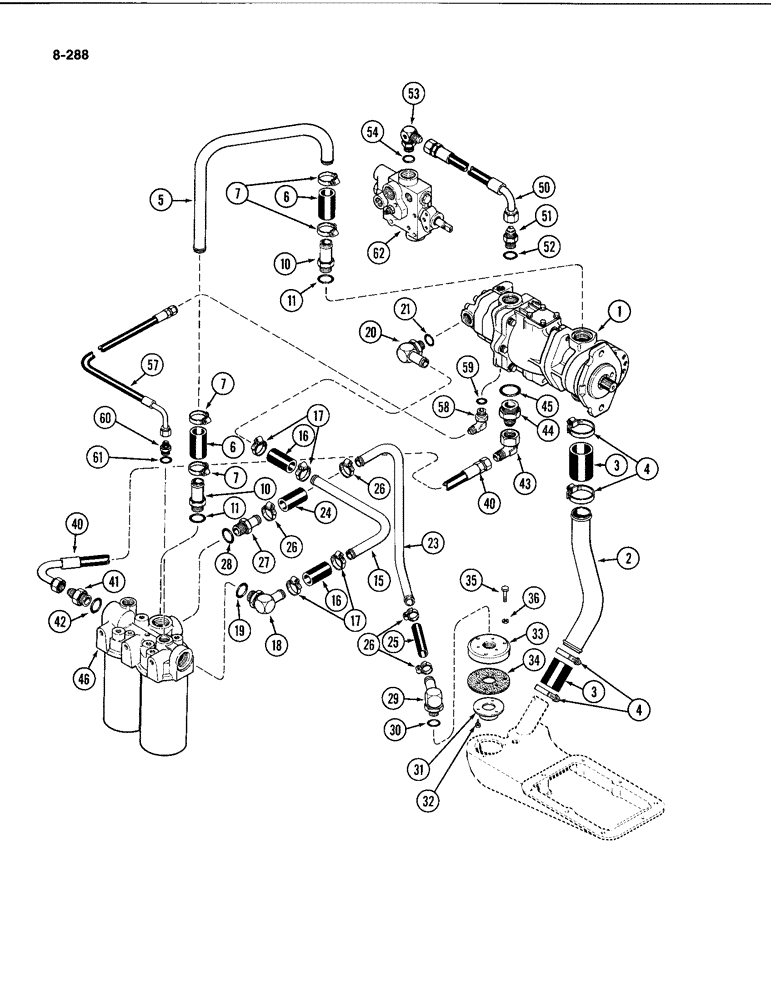

PUMP ASSEMBLY - hydraulic (See Figure 8-308)
1шт.
2
A160168
TUBE
- suction, Serial Range: sump-pump
1шт.
3
A144526
HOSE
- suction tube, 2 inch ID x 3-1/32 inch long (51 x 77 mm)
2шт.
4
214-261
HOSE CLAMP,#40, 2.06" - 3", Type F Worm
CLAMP - hose, 2-1/16 inch to 3 inch
4шт.
5
A163040
TUBE
- outlet, Serial Range: pump-filter
1шт.
6
D36350
HOSE
- outlet tube (Order R13911 and, Serial Range: cut-length)
2шт.
R13911
HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3
- outlet 31.80 mm ID x 101.60 mm ID, SAE 100R3
1шт.
7
214-258
HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm
4шт.
10
217-178
FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB
CONNECTOR ASSEMBLY - 1-1/4 hose x 1-5/8-12 inch thread, Incl. Ref. 11
2шт.
11
218-5012
O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro
- 1-23/32 ID x 1/8 inch width (44ID x 3mm width)
1шт.
15
A160213
TUBE
- filter to gear pump
1шт.
16
A160211
HOSE,1.00" ID x 3.00", SAE 30R2 TYPE 2 PER SAE J30
1.00" ID x 3.00", SAE 30R2 - Gear Pump Tube
2шт.
17
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose, 1-3/16 to 1-3/4 inch
4шт.
18
217-354
FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB
ELBOW ASSEMBLY - 90 degree, 1 hose x 1-5/8-12 inch thread, Includes: Ref. 19
1шт.
19
18-5012
O-ring - 1-23/32 ID x 1/8 inch width (44 ID x 3 mm width)
1шт.
20
217-366
FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB
ELBOW, 90°, 1" Hose x 1 1/16"-12 ORB Beaded, Assy, Includes Ref. 21
1шт.
21
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- plug, 15/16 ID x 7/64 inch width (23 id x 3 mm width)
1шт.
23
A160214
TUBE
- filter to pressure relief valve
1шт.
24
A16211
TUBE
HOSE - tube to filter, 1 ID x 3 inch long (25 x 76 mm)
1шт.
25
L60332
HOSE
- tube to relief valve, 1 ID x 5 inch long (25 x 128 mm)
1шт.
26
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose, 1-3/16 to 1-3/4 inch
4шт.
27
217-173
FITTING,1" Hose Barb x 1-5/8" - 12 Male ORB
Includes Ref. 28 1" Hose x 1 5/8"-12 ORB, Beaded
1шт.
28
218-5012
O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro
- 1-23/32 ID x 1/8 inch width (44 ID x 3 mm width)
1шт.
29
217-352
FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB
ELBOW ASSEMBLY - 90 degree, 1 hose x 1-5/16-12 inch thread, Includes: Ref. 30
1шт.
30
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- 1-11/64 x 7/64 inch (30 x 3 mm width)
1шт.
31
A152794
VALVE
- relief, filter oil pressure (In transmission sump)
1шт.
32
113-37
BOLT,Locking, 1/4" - 20 x 3/4", Gr 5, Full Thd
- hex lock, 1/4 NC x 3/4 inch
3шт.
33
A152779
HOUSING
- pressure relief valve
1шт.
34
A152826
GASKET
-, Serial Range: housing-sump
1шт.
35
113-157
BOLT,Locking, 5/16" - 18 x 1-1/2", Gr 5
- hex lock, 5/16 NC x 1-1/2 inch
3шт.
36
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
3шт.
40
L101916
HOSE,1.00" ID x 28.00"
Filter to Piston Pump 1.00" ID x 28.00"
1шт.
41
218-5086
HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring
CONNECTOR ASSEMBLY - 1 tube x 1-5/8-12 inch thread, Includes: Ref. 42
1шт.
42
218-5012
O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro
- 1-23/32 ID x 1/8 inch width (44 ID x 3 mm width)
1шт.
43
218-5234
ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw
ASSEMBLY - 90 degree swivel, 1 inch tube 1-5/16-12 inch thread
1шт.
44
A147128
CONNECTOR, ELEC
CONNECTOR ASSEMBLY - elbow to pump, 1-5/16-12 x 1-7/8-12 inch thread, Includes: Ref. 45
1шт.
45
218-5349
O-RING,1.364" ID x 1.504" OD x 0.07"
- 2-3/32 ID x 1/8 inch width (53 ID x 3 mm width)
1шт.
46
REF
INSTRUCTION
FILTER ASSEMBLY - hydraulic oil (See Figure 8-302)
1шт.
50
H377762
HOSE
- outlet, piston pump to regulator valve (Replaces A148749)
1шт.
51
218-5077
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
CONNECTOR ASSEMBLY - 3/4 tube x 1-5/16-12 inch thread, Incl. Ref. 52
1шт.
52
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- 1-11/64 ID x 7/64 inch width (30 ID x 3 mm width)
1шт.
53
A169036
FITTING
ELBOW ASSEMBLY - 90 degree, 3/4 tube 1-1/16-12 inch thread, Includes: Ref. 54
1шт.
54
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- plug, 15/16 ID x 7/64 inch width (23 ID x 3 mm width)
1шт.
57
A151831
HOSE
- gear, Serial Range: pump-filter
1шт.
58
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
ASSEMBLY - 90 degree, 1/2 tube x 3/4-16 inch thread, Includes: Ref. 59
1шт.
60
218-5070
HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB
CONNECTOR ASSEMBLY - 1/2 tube 1-1/16 inch thread, Includes: Ref. 61
1шт.
61
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- plug, 15/16 ID x 7/64 inch (23 ID x 3 mm width)
1шт.
62
REF
INSTRUCTION
VALVE ASSEMBLY - regulator (See Figure 8-294)
1шт.
59
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 41/64 ID x 3/32 inch width (16 ID x 2 mm width)
1шт.
Выбрано товаров: 49
