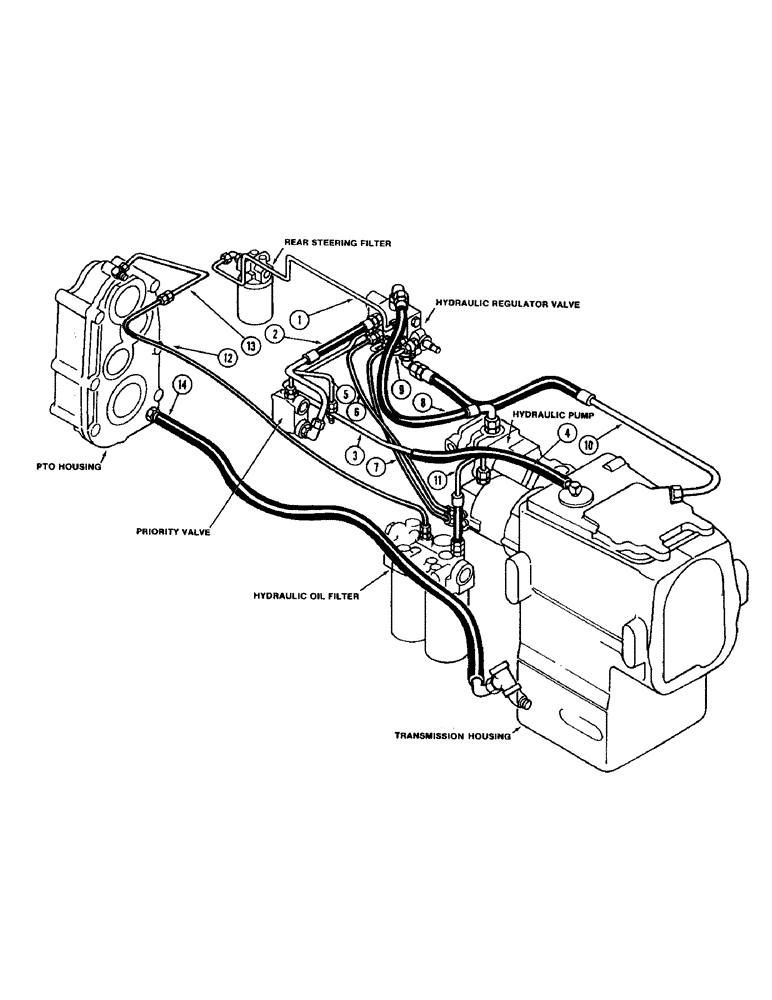

Запчасти Case IH 4494 (1-013) - PICTORIAL INDEX, PTO HYDRAULICS (00) - PICTORIAL INDEX

1

Steering filter inlet tube, Page 5-127

1шт.

2

Regulator to priority valve hose, Page 5-121

1шт.

3

Regulator to reservoir tube, Page 5-121

1шт.

4

Regulator valve drain hose, Page 8-293

1шт.

5

Priority valve drain tube, Page 5-121

1шт.

6

Regulator valve to PTO clutch hose, Page 8-283

1шт.

7

Regulator valve to PTO clutch hose, Page 8-283

1шт.

8

Hydraulic pump to regulator valve hose, Page 5-121

1шт.

9

Sump bypass tube, Page 8-293

1шт.

10

Pressure regulator valve to top cover hose, Page 8-307

1шт.

11

PTO clutch lubrication hose, Page 8-285

1шт.

12

PTO front lubrication tube, Page 8-283

1шт.

13

PTO rear lubrication tube, Page 8-283

1шт.

14

PTO drain hose, Page 8-283

1шт.
