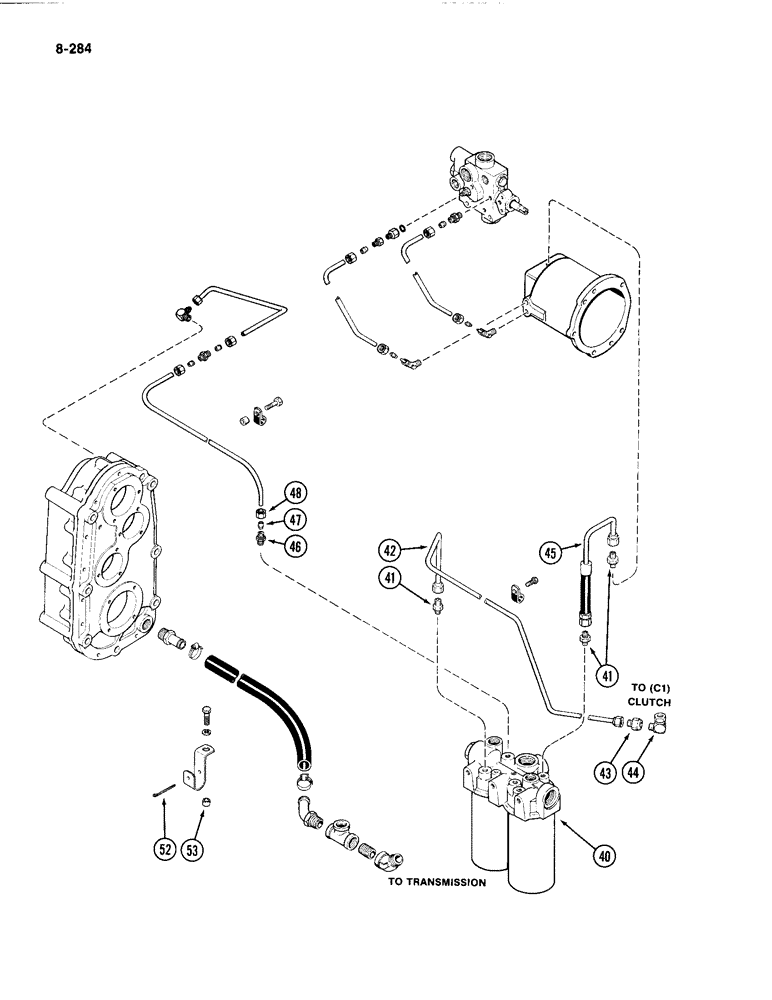

Запчасти Case IH 4494 (8-284) - PTO HYDRAULICS AND LUBE TUBES (08) - HYDRAULICS

40

REF

INSTRUCTION

FILTER ASSEMBLY - (See Figure 8-302) (Continued from Figure 8-283)

1шт.

41

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, 3/8 tube 9/16-18 thread x 1/4 inch PT

3шт.

42

A144867

TUBE

ASSEMBLY - (C1) clutch lube

1шт.

43

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

- 1/2 tube 3/4-16 thread to 3/8 tube 9/16-18 thread

1шт.

44

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

ASSEMBLY - 90 degree swivel, 1/2 tube 3/4-16 inch thread

1шт.

45

A144891

TUBE

HOSE ASSEMBLY - lube, PTO clutch

1шт.

46

222-2626

FITTING,17/32"-24 x 1/4" NPT, Comp

CONNECTOR ASSEMBLY - straight, 3/8 tube 17/32-24 thread x 1/4 inch PT

1шт.

47

222-2611

SLEEVE

- flanged, 3/8 inch tube, Includes: Ref. 48

1шт.

48

222-2601

NUT

NUT - 3/8 tube 17/32-274 inch thread

1шт.

52

132-187

COTTER PIN,5/16" x 3"

Pin, Split (Cotter), 5/16" x 3"

1шт.

53

T30946

BUSHING

SPACER - PTO drain support

1шт.
