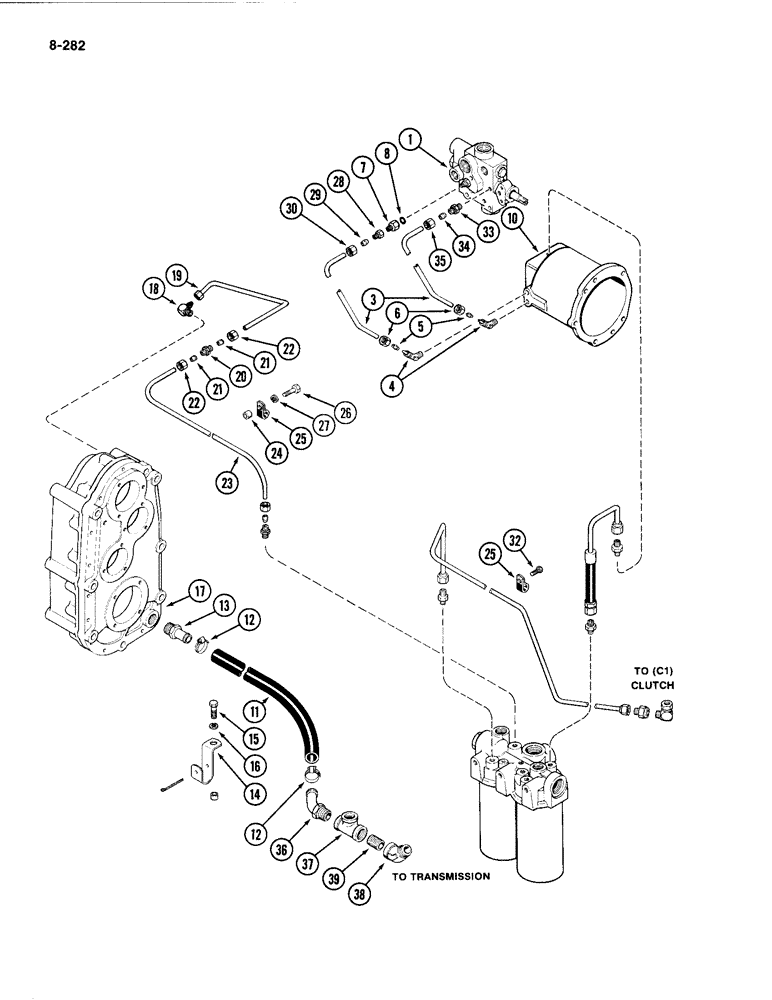

Запчасти Case IH 4494 (8-282) - PTO HYDRAULICS AND LUBE TUBES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - regulator, hydraulic (See Figures 8-294 and 296)

1шт.

3

A75811

TUBE

HOSE - regulator valve to PTO clutch and brake housing (Order A67323 and, Serial Range: cut-length)

2шт.

A67323

TUBE

HOSE - bulk, 132 inch (3 353 mm)

1шт.

4

222-2726

ELBOW,45 Degree, 17/32"-24 x 1/4" NPT, Comp

ASSEMBLY - 45 degree, 3/8 tube 17/32-24 thread x 1/4 inch PT, Includes: Ref. 5 and 6

2шт.

5

222-2611

SLEEVE

- flanged, 3/8 inch tube

1шт.

6

222-2601

NUT

NUT - 3/8 tube, 17/32-24 inch thread

1шт.

7

218-5425

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - straight, 3/8 inch tube 9/16-18 thread x 1/4 inch PT, Includes: Ref. 8

2шт.

8

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

10

REF

INSTRUCTION

HOUSING - PTO clutch (See Figure 6-266)

1шт.

11

A139756

HOSE,1.00" ID x 68.25", SAE 30R2 TYPE 1

1.00" ID x 68.20", SAE 30R2 - Drain, PTO (Order A160026 and cut to length)

1шт.

A160026

HOSE,1.00" ID x 77.00", SAE 30R2 TYPE 1 PER SAE J30

1.00" ID x 77.00", SAE30R2 - Bulk

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 (30 mm) to 1-3/4 inch (45 mm)

2шт.

13

217-156

FITTING,1" Hose Barb x 1" Male NPTF

CONNECTOR - straight, 1 hose x 1 inch PT

1шт.

14

A169271

BRACKET

SUPPORT - PTO drain hose

1шт.

15

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

17

REF

INSTRUCTION

HOUSING - pto drop box (See Figure 6-272)

1шт.

18

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree, 3/8 tube x 9/16-18 thread x 3/8 inch PT

1шт.

19

A169971

TUBE

ASSEMBLY - PTO lube

1шт.

20

222-2651

HYD CONNECTOR,17/32"-24

CONNECTOR ASSEMBLY - straight, 3/8 tube 17/32-24 inch thread, Includes: Ref. 21 and 22

1шт.

21

222-2611

SLEEVE

- flanged, 3/8 inch tube

2шт.

22

222-2601

NUT

NUT - 3/8 tube, 17/32-24 thread

2шт.

23

A61107

TUBE

- PTO lube (Order A67323 and, Serial Range: cut-length)

1шт.

A67323

TUBE

HOSE - bulk, 132 inch (3353 mm)

1шт.

24

A76093

BUSHING

SPACER - tube clamp, 1/2 inch (13 mm)

3шт.

25

49845

CLAMP

- lube tube

4шт.

26

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

5шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

28

222-2666

FITTING,17/32"-24 x 1/4" NPT Fem, Comp

CONNECTOR ASSEMBLY - straight, 3/8 tube 17/32-24 thread x 1/4 inch PT, Includes: Ref. 29 and 30

1шт.

29

222-2601

NUT

SLEEVE - tapered, 3/8 inch tube

1шт.

30

222-2611

SLEEVE

NUT - hex, 3/8 tube 17/32-24 inch thread

1шт.

32

187-1300

SELF-TAP SCREW,Hex, 3/8" - 18 x 1"

SCREW - hex taptite, 3/8 x 1 inch

2шт.

33

222-2626

FITTING,17/32"-24 x 1/4" NPT, Comp

CONNECTOR ASSEMBLY - straight, 3/8 tube 17/32-24 thread x 1/4 inch PT, Includes: Ref. 34 and 35

1шт.

34

222-2601

NUT

SLEEVE - tapered, 3/8 inch tube

1шт.

35

222-2611

SLEEVE

NUT - hex, 3/8 tube 17/32-24 inch thread

1шт.

36

A76171

TUBE

- elbow, 1 hose stem x 1 inch PT

1шт.

37

221-426

FITTING,1" NPT

CONNECTOR - tee, 1 inch PT

1шт.

38

221-406

FITTING,90 Degree, 1"-11 1/2, NPT

ELBOW - 45 degree, 1 inch PT

1шт.

39

221-236

PIPE,Nipple, 1" NPT x 1 1/2"

NIPPLE - 1 PT x 1-1/2 inch long

1шт.
