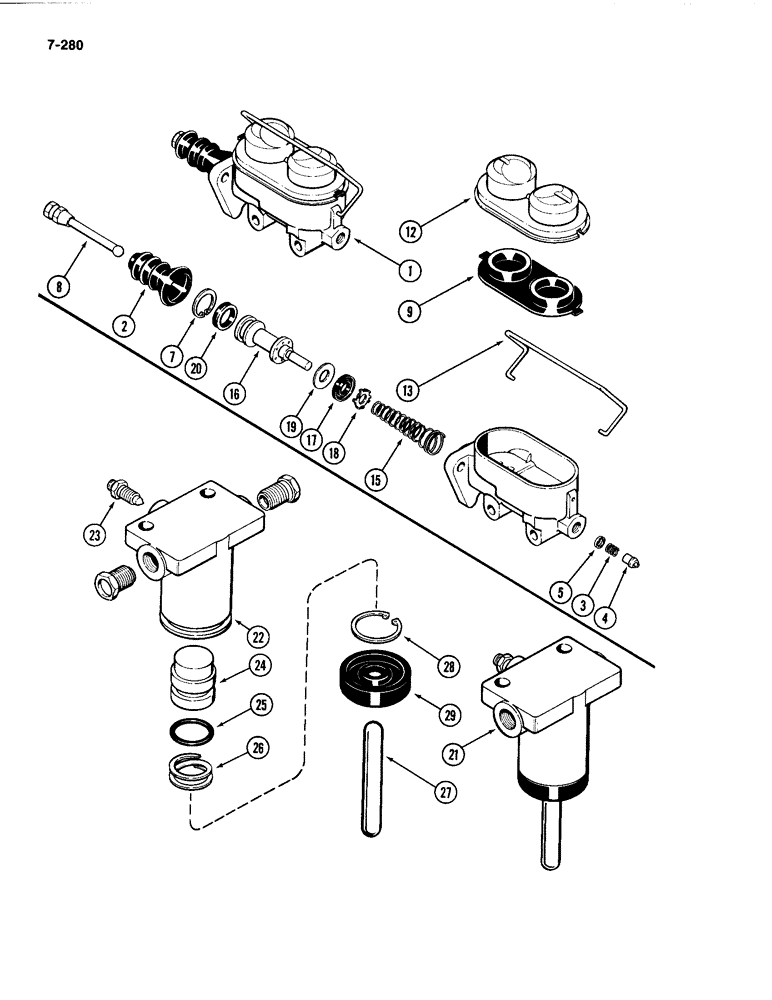

Запчасти Case IH 4494 (7-280) - BRAKE MASTER CYLINDER (07) - BRAKES

1

A169965

CYLINDER

ASSEMBLY - master, Includes: Ref. 2 - 20

1шт.

2

L32136

BOOT

- master cylinder

1шт.

3

N6824

SPRING

- piston

1шт.

4

A48980

BREATHER

VALVE - residual

1шт.

5

N6825

SEAT

- residual valve

1шт.

7

A15110

SNAP RING,0.812", Int, #81

Ring, Snap, 0.812", Int, #81

1шт.

8

L32137

ROD

- push

1шт.

9

A48981

GASKET

- cover

1шт.

12

A48982

COVER

- master cylinder

1шт.

13

N6831

BAIL

- cover retaining

1шт.

A48973

PISTON

KIT - master cylinder, Includes: Ref. 15 - 20

1шт.

15

NSS

NOT SOLD SEPARAT

SPRING - piston

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

17

NSS

NOT SOLD SEPARAT

CUP - piston

1шт.

18

NSS

NOT SOLD SEPARAT

RETAINER - piston cup

1шт.

19

NSS

NOT SOLD SEPARAT

PROTECTOR - piston cup

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston sealing

1шт.

21

A51976

CYLINDER

ASSEMBLY - slave, brake

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - slave cylinder (Order A51976) (Ref. No. A42251), brake, Includes: Ref. 22 - 29

1шт.

23

A41491

BLEEDER,1/4" - 28 x 23.37mm

BLEEDER - brake, slave cylinder

1шт.

24

A45383

PISTON

ASSEMBLY - cylinder, brake slave, Includes: Ref. 25 and 26

1шт.

25

L38132

O-RING - piston (Order L32132), brake slave cylinder

1шт.

Part of Piston Kit, P/N A45387

1шт.

26

A42252

SEALING RING

RING - back-up, brake slave cylinder

1шт.

Part of Piston Kit, P/N A45387

1шт.

27

A42254

ROD

- push, brake slave cylinder

1шт.

Part of Piston Kit, P/N A45387

1шт.

28

A42256

SNAP RING,0.901", Int, #90

brake slave cylinder 0.901", Int, #90

1шт.

Part of Piston Kit, P/N A45387

1шт.

29

A45382

COVER

- dust, brake slave cylinder

1шт.

Part of Piston Kit, P/N A45387

1шт.

A45387

KIT

- piston (Includes Refs. 25 - 29), brake slave cylinder

1шт.
