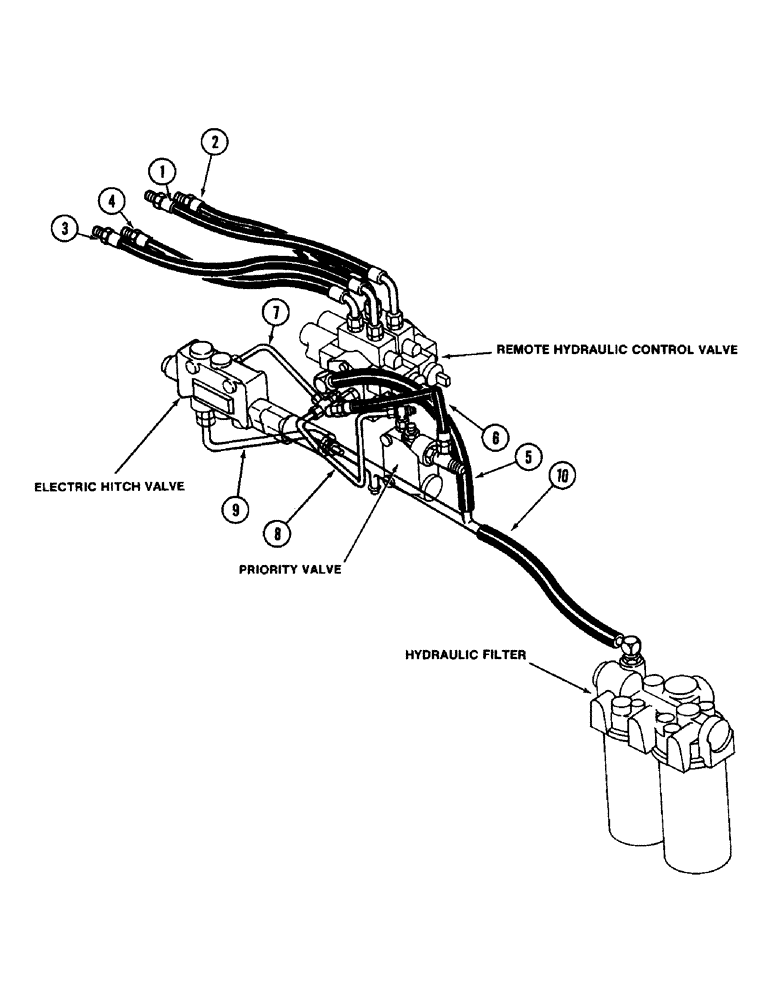

Запчасти Case IH 4494 (1-011) - PICTORIAL INDEX, REMOTE HYDRAULICS (00) - PICTORIAL INDEX
9
6
4
3
1
8
5
7
10
2
№
Артикул
Название
Примечание
Количество
1
Remote valve to coupling hose, Page 8-329
1шт.
2
Remote valve to coupling hose, Page 8-329
1шт.
3
Remote valve to coupling hose, Page 8-329
1шт.
4
Remote valve to coupling hose, Page 8-329
1шт.
5
Remote valve drain hose, Page 8-327
1шт.
6
Remote to priority valve hose, Page 8-327
1шт.
7
Hitch valve sensing tube, Page 8-327
1шт.
8
Priority to hitch valve tube, Page 8-327
1шт.
9
Hitch valve drain tube, Page 8-327
1шт.
10
Drain tube to filter hose, Page 8-327
1шт.
Выбрано товаров: 10
