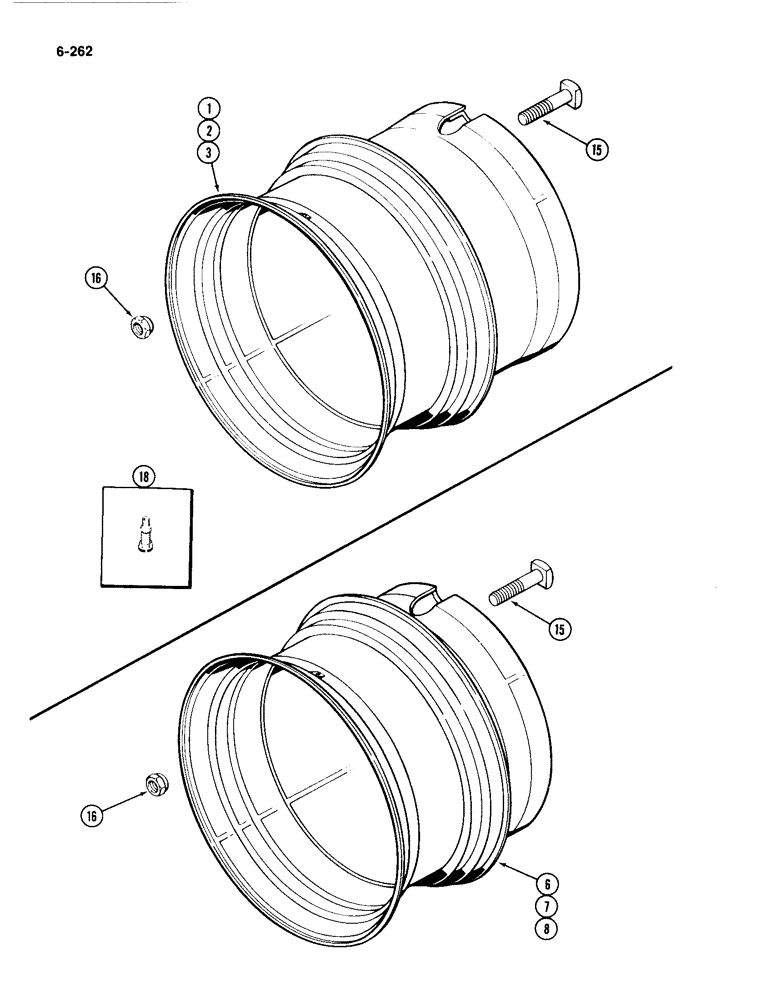

Запчасти Case IH 4494 (6-262) - DUAL WHEELS (06) - POWER TRAIN

1

A160663

WHEEL

- outer dual, wide spacing, 18.4 x 34 inch tire (467 x 864 mm)

4шт.

2

A162802

WHEEL

- outer dual, narrow spacing, 18.4 x 34 inch (467 x 864 mm) tire, for 120 inch (3048 mm) row crop

4шт.

2

A177451

WHEEL

- outer dual, 23.1 x 34 inch tire (587 x 864 mm)

4шт.

3

A160529

RIM

WHEEL - outer dual, wide spacing, 20.8 x 34 inch tire (528 x 864 mm)

4шт.

4

A148140

RIM

WHEEL - outer dual, narrow spacing, 20.8 x 34 inch (528 x 864 mm) (for 120 inch (3048 mm) row crop)

4шт.

4

A161512

SCREW

WHEEL - outer dual, for 18.4 x 38 tire (467 x 965 mm)

4шт.

4

A161513

WHEEL

- outer dual, for 20.8 x 38 inch tire (967 x 965 mm)

4шт.

5

A160853

SQUARE BOLT

- wheel

40шт.

6

A180471

NUT

- wheel bolt (Replaces A160864)

40шт.

7

A20058

VALVE STEM

VALVE STEM - Air, tubeless tire

1шт.

16

131-935

FLANGE NUT,Flg, 3/4"-10, G8

1шт.

16

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

1шт.
