Запчасти Case IH 4494 (6-254) - REAR AXLE DIFFERENTIAL AND CARRIER, AXLE SERIAL NO. 13015953 AND AFTER (06) - POWER TRAIN

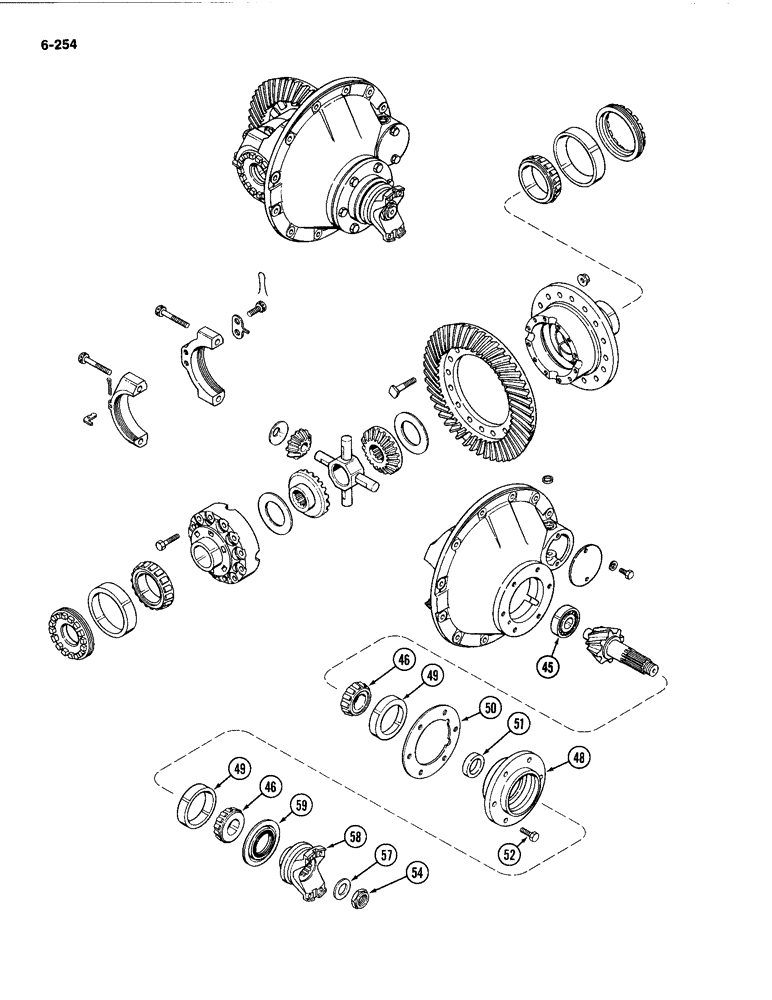

Схема запчастей Case IH 4494 - (6-254) - REAR AXLE DIFFERENTIAL AND CARRIER, AXLE SERIAL NO. 13015953 AND AFTER (06) - POWER TRAIN
51
46
52
57
58
48
46
59
50
54
45
49
49

Артикул

Название

Примечание

Количество

A176685

SWITCH

CARRIER ASSEMBLY - differential, rear axle, Includes: Ref. 45 - 59 and 2 - 41 on fig. 6-252

1шт.

45

L33062

ROLLER BEARING

BEARING - roller, drive pinion

1шт.

46

A52295

ROLLER BEARING,44.45 mm ID x 26.909 mm

CONE - bearing, pinion shaft

2шт.

A45671

CAGE ASSY.

CAGE ASSEMBLY - pinion bearing

1шт.

48

NSS

NOT SOLD SEPARAT

CAGE - bearing (Order A45671)

1шт.

49

A9840

BEARING CUP

CUP - bearing, pinion shaft

2шт.

50

S68370

SHIM,.003" Thk

Bearing cage (0.076 mm) .003" Thk

1шт.

50

S68371

SHIM,.005" Thk

Bearing cage (0.127 mm) .005" Thk

1шт.

50

S68372

SHIM,.010" Thk

Bearing cage (0.254 mm) .010" Thk

1шт.

50

S68373

SHIM,.020" Thk

Bearing cage (0.508 mm) .020" Thk

1шт.

50

S75901

SHIM,.030" Thk

Bearing cage (0.762 mm) .030" Thk

1шт.

51

A52317

SPACER

- pinion bearing, 0.623 inch (15.824 mm)

1шт.

51

A52318

SPACER

- pinion bearing, 0.624 inch (15.850 mm)

1шт.

51

A52319

SPACER

- pinion bearing, 0.625 inch (15.875 mm)

1шт.

51

A52320

SPACER

- pinion bearing, 0.626 inch (15.900 mm)

1шт.

51

A52321

SPACER

- pinion bearing, 0.627 inch (15.926 mm)

1шт.

51

A52322

SPACER

- pinion bearing, 0.628 inch (15.951 mm)

1шт.

51

A52323

SPACER

- pinion bearing, 0.629 inch (15.977 mm)

1шт.

51

A52324

SPACER

- pinion bearing, 0.630 inch (16.002 mm)

1шт.

51

NLS

NO LONGER SERVICED

- pinion bearing, 0.631 inch (16.027 mm)

1шт.

51

A52326

SPACER

- pinion bearing, 0.632 inch (16.053 mm)

1шт.

51

A52327

SPACER

- pinion bearing, 0.633 inch (16.078 mm)

1шт.

51

A52328

SPACER

- pinion bearing, 0.634 inch (16.104 mm)

1шт.

51

A52330

SPACER

- pinion bearing, 0.635 inch (16.129 mm)

1шт.

51

A52332

SPACER

- pinion bearing, 0.636 inch (16.154 mm)

1шт.

51

A52334

SPACER

- pinion bearing, 0.637 inch (16.180 mm)

1шт.

51

A52335

SPACER

- pinion bearing, 0.6375 inch (16.181 mm)

1шт.

51

A52336

SPACER

- pinion bearing, 0.638 inch (16.205 mm)

1шт.

51

A52338

SPACER

- pinion bearing, 0.639 inch (16.231 mm)

1шт.

51

A52340

SPACER

- pinion bearing, 0.640 inch (16.260 mm)

1шт.

51

A52342

SPACER

- pinion bearing, 0.641 inch (16.281 mm)

1шт.

51

A52344

SPACER

- pinion bearing, 0.642 inch (16.307 mm)

1шт.

51

A52345

SPACER - pinion bearing, 0.6425 inch (16.308 mm)

1шт.

51

A52346

SPACER

- pinion bearing, 0.643 inch (16.332 mm)

1шт.

51

A52348

- pinion bearing, 0.644 inch (16.358 mm)

1шт.

51

A52349

SPACER

- pinion bearing, 0.645 inch (16.383 mm)

1шт.

51

A52350

SPACER

- pinion bearing, 0.646 inch (16.408 mm)

1шт.

51

A52351

SPACER

- pinion bearing, 0.647 inch (16.433 mm)

1шт.

51

A52352

SPACER

- pinion bearing, 0.648 inch (16.459 mm)

1шт.

51

A52353

SPACER

- pinion bearing, 0.649 inch (16.485 mm)

1шт.

51

A52354

SPACER

- pinion bearing, 0.650 inch (16.510 mm)

1шт.

51

A52355

SPACER

- pinion bearing, 0.651 inch (16.535 mm)

1шт.

51

A52356

SPACER

- pinion bearing, 0.652 inch (16.561 mm)

1шт.

51

A52357

SPACER

- pinion bearing, 0.653 inch (16.586 mm)

1шт.

51

A52358

SPACER

- pinion bearing, 0.654 inch (16.612 mm)

1шт.

52

13-924

BOLT,Hex, 9/16" - 12 x 1-1/2", Gr 5

- bearing cage, 9/16 NC x 1-1/2 inch

6шт.

54

A45567

NUT

- yoke to pinion shaft

1шт.

57

A44209

WASHER

- yoke to pinion shaft

1шт.

58

A47568

YOKE

- drive shaft

1шт.

REF: 58 ECN C971234 IS RELEASING A 6C YOKE ASSY TO REPLACE A47568 YOKE. CUSTOMER WILL ALSO NEED NEW METRIC HWD. PARTS AS FOLLOWS: 317788A1 6 C YOKE WITH MUD SLING 253863A1 PINION GEAR SET 253988A1 PINION SHAFT WASHER AND 258056A1 DIFF PIN BEARING.

1шт.

59

A48856

SEAL

ASSEMBLY - oil, pinion shaft

1шт.
