Запчасти Case IH 4494 (6-252) - REAR AXLE DIFFERENTIAL AND CARRIER, AXLE SERIAL NO. 13015953 AND AFTER (06) - POWER TRAIN

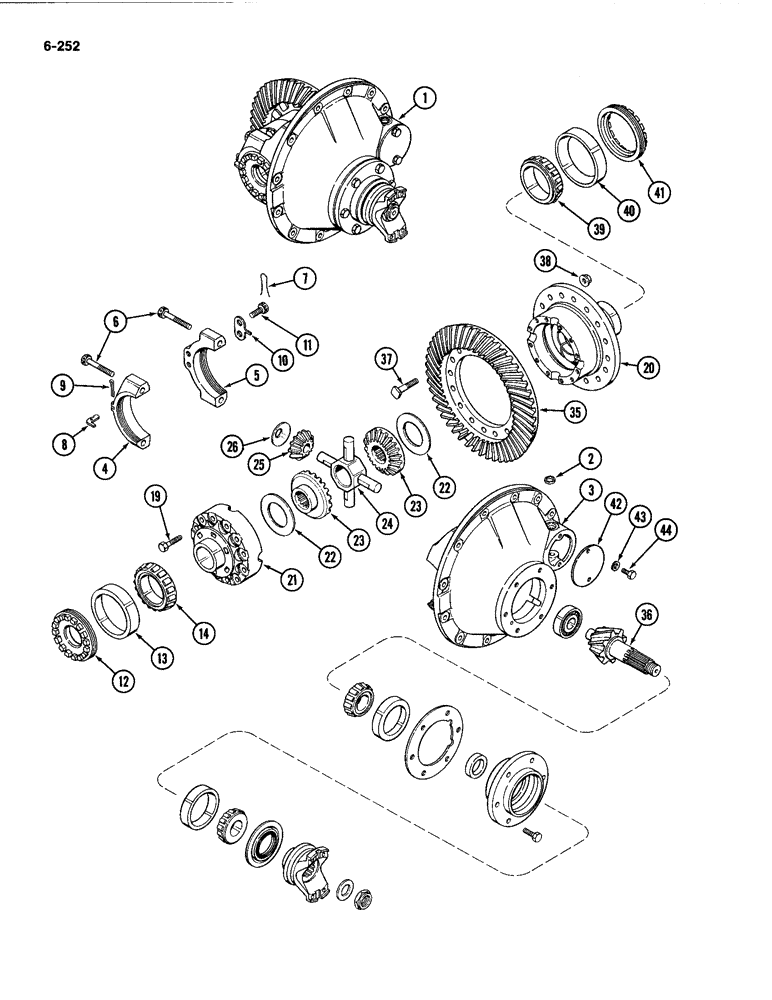

Схема запчастей Case IH 4494 - (6-252) - REAR AXLE DIFFERENTIAL AND CARRIER, AXLE SERIAL NO. 13015953 AND AFTER (06) - POWER TRAIN
24
21
26
12
3
7
22
43
38
36
35
8
22
42
4
14
13
37
19
20
25
5
5
41
41
38
1
11
23
2
6
10
23
40

Артикул

Название

Примечание

Количество

1

A179685

GEAR, BEVEL

CARRIER ASSEMBLY - differential, rear axle, Includes: Ref. 2 - 41 and 45 - 59 on fig. 6-254

1шт.

A52384

CASE

CARRIER ASSEMBLY - axle

1шт.

2

41-15

PLUG

- expansion, 15/16 inch (24 mm)

2шт.

3

NSS

NOT SOLD SEPARAT

CARRIER ASSEMBLY - differential (Order A52384), Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - bearing

1шт.

5

NSS

NOT SOLD SEPARAT

CAP - bearing

1шт.

6

A44227

BOLT

-, Serial Range: cap-carrier

4шт.

8

A45666

LOCK

- adjusting nut, right

1шт.

9

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

10

A52308

LOCK

- adjusting nut, left

1шт.

11

A52304

BOLT

- hex lock

2шт.

12

A52307

ADJUSTER

NUT - adjusting, left bearing

1шт.

13

A7892

BEARING, CUP

CUP - RH bearing

1шт.

14

A7893

ROLLER BEARING,3.375" ID x 1.172"

CONE - RH bearing

1шт.

A52386

DIFFERENTIAL

CASE HALVES SET - differential, Includes: Ref. 19 - 22

1шт.

19

A45680

LOCK BOLT

BOLT - hex lock

12шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - plain half (Order A52386)

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - flange half (Order A52386)

1шт.

A52385

KIT

SIDE PINION AND GEAR KIT - differential, Includes: Ref. 23 - 28

1шт.

23

S68331

WASHER

- thrust, side gear

4шт.

24

NSS

NOT SOLD SEPARAT

GEAR - side

2шт.

25

S68333

U-JOINT SPIDER

SPIDER - differential pinion

1шт.

26

NSS

NOT SOLD SEPARAT

PINION - drive gear

4шт.

27

S68335

WASHER

- thrust

4шт.

28

391-614

WIRE - lock, 18 gauge x 84 inch (1 x 2134 mm) roll

1шт.

A45113

GEAR-SET

GEAR SET - matched pinion and drive gear (Replaces A44260), Includes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

GEAR - drive, 39 teeth (Order A45113)

1шт.

36

NSS

NOT SOLD SEPARAT

PINION - drive, 8 teeth (Order A45113)

1шт.

37

A52291

SQUARE BOLT,1/2" - 20 x 27/32", Gr 8

BOLT - drive, Serial Range: gear-housing

16шт.

38

A44264

NUT

- gear bolt

16шт.

39

A52289

ROLLER BEARING,3.8125" ID x 1.1406"

CONE - left bearing

1шт.

40

L33255

BEARING, CUP

CUP - left bearing

1шт.

41

A52306

ADJUSTER

NUT - adjusting, right bearing

1шт.

42

A52310

COVER

- opening

1шт.

43

192-162

LOCK WASHER,7/16"

7/16"

2шт.

44

113-316

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5, Full Thd

Includes cage assembly, P/N A45671 Hex, 7/16"-14 x 7/8", G5, Full Thd

2шт.

A45671

CAGE ASSY.

CAGE ASSEMBLY - pinion bearing

1шт.

Выбрано товаров: 37
