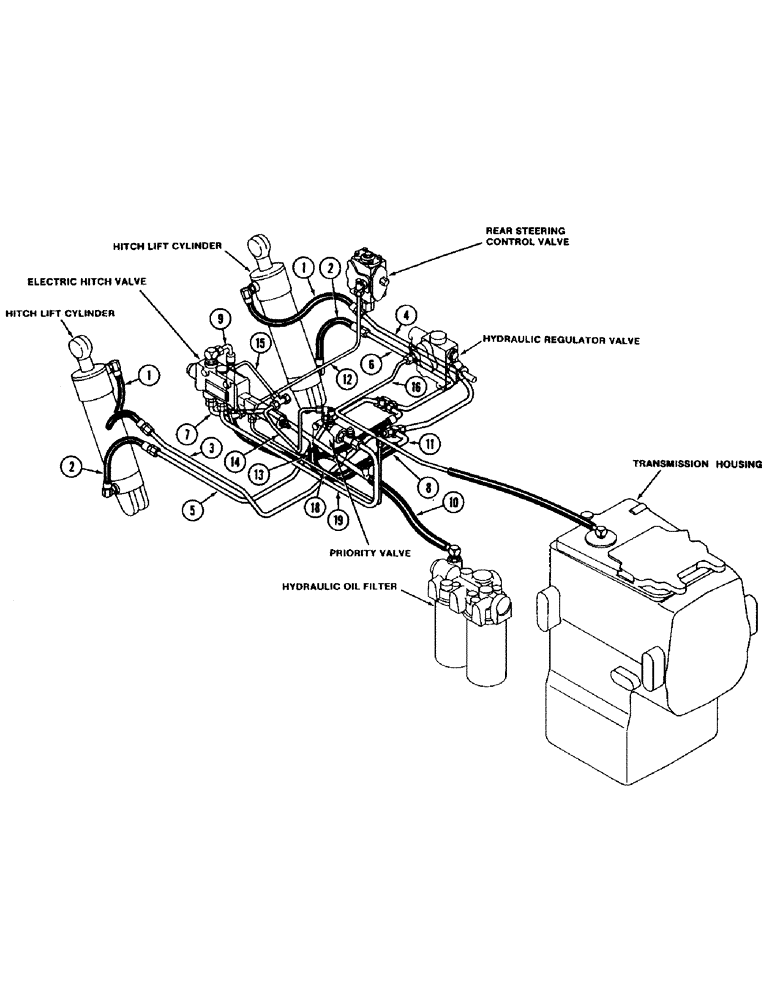

Запчасти Case IH 4494 (1-009) - PICTORIAL INDEX, HITCH HYDRAULICS (00) - PICTORIAL INDEX

1

Hitch cylinder upper hoses, Page 8-365

1шт.

2

Hitch cylinder lower hoses, Page 8-365

1шт.

3

Hitch cylinder RH return tube, Page 8-365

1шт.

4

Hitch cylinder LH return tube, Page 8-365

1шт.

5

Hitch cylinder RH pressure tube, Page 8-365

1шт.

6

Hitch cylinder LH pressure tube, Page 8-365

1шт.

7

Hitch valve drain tube, Page 8-363

1шт.

8

Hitch valve drain hose, Page 8-365

1шт.

9

Hitch valve pressure hose, Page 8-365

1шт.

10

Hitch drain hose, Page 8-363

1шт.

11

Return line junction tube, Page 8-365

1шт.

12

Hitch valve to steering valve tube, Page 5-121

1шт.

13

Hitch drain hose, Page 8-365

1шт.

14

Priority valve to hitch valve, Page 8-327

1шт.

15

Hitch valve sensing tube, Page 8-327

1шт.

16

Regulator valve tube to transmission cover, Page 8-293

1шт.

17

Regulator valve drain hose, Page 8-293

1шт.

18

Hitch valve drain tube, Page 5-121

1шт.

19

Hitch valve to priority valve, Page 8-325

1шт.
