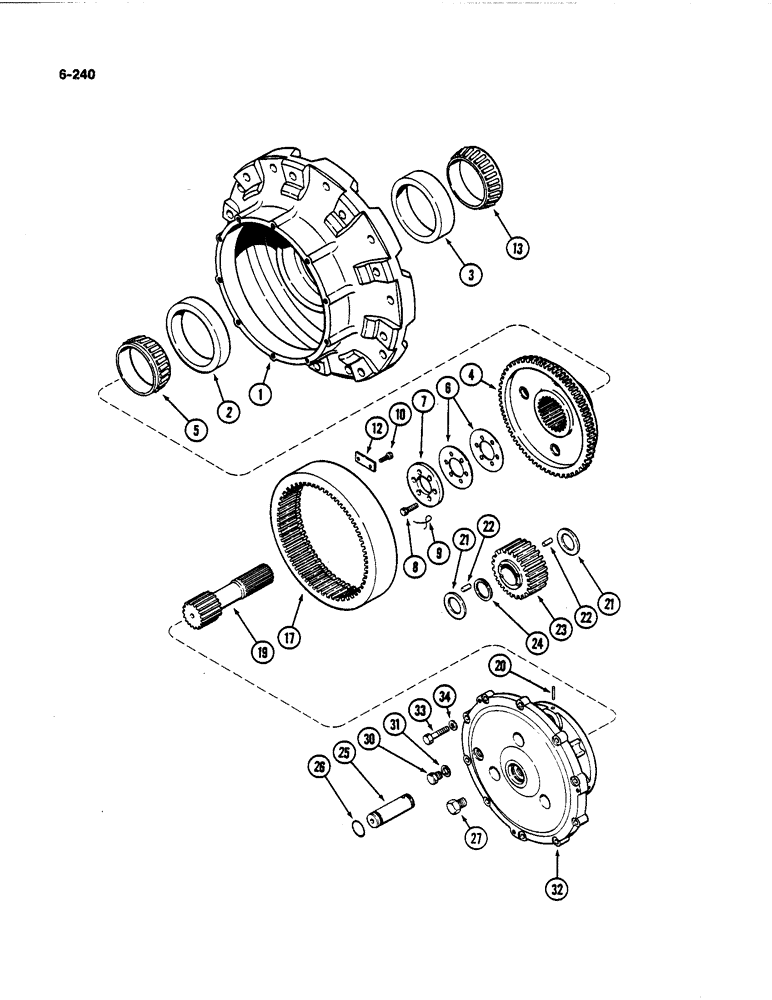

Запчасти Case IH 4494 (6-240) - REAR AXLE ASSEMBLY, WHEEL HUB AND AXLE PLANETARY, PRIOR TO AXLE SERIAL NO. 13015953 (06) - POWER TRAIN

1

A151255

HUB

ASSEMBLY - wheel drive, Includes: Ref. 2 and 3

2шт.

2

A75262

CUP

- outer bearing

1шт.

3

L31698

BEARING CUP

CUP - inner bearing, 7-3/16 O.D. x 1-15/16 inch wide (183 x 49 MM)

1шт.

4

A76461

HOLDER

ASSEMBLY - planetary ring gear, Includes: Ref. 5

2шт.

5

A75263

CONE

- outer bearing

1шт.

6

A75264

SHIM,.003" Thk

Wheel hub brg. (0.0762 mm) .003" Thk

1шт.

6

A75265

SHIM,.007" Thk

Wheel hub brg. (0.1778 mm) .007" Thk

1шт.

6

A75266

SHIM,.020" Thk

Wheel hub brg. (0.5080 mm) .020" Thk

1шт.

7

A75267

CAP

- retainer, bearing

2шт.

8

A75268

BOLT

- hex drilled, 3/8 NC x 1-1/4 inch

12шт.

9

391-636

ELECTRICAL WIRE

WIRE - safety

1шт.

10

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1 inch (Grade 8)

24шт.

12

A77291

PAWL

RETAINER - ring gear (Order A153458)

12шт.

13

306854C91

BEARING

CONE - inner bearing

2шт.

17

A76019

GEAR

- ring, planetary

2шт.

19

A168170

SHAFT

- planet sun gear

2шт.

20

138-2033

PIN,6.35mm OD x 34.92mm L, Coiled

6шт.

21

A63228

WASHER

- planet pin

12шт.

22

A46420

ROLLER BEARING

BEARING KIT - needle roller (Includes 38 bearings)

6шт.

23

A168269

PINION

GEAR - planet

6шт.

24

A63327

SPACER - bearing

6шт.

25

A76344

PIN,40.31mm OD x 122.17mm L

- planet gear

6шт.

26

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

- pin

6шт.

27

A168829

BOLT

- sun gear stop

2шт.

30

A140222

PLUG

- fill or drain

2шт.

31

A51759

GASKET

- plug

2шт.

32

A153253

CARRIER

- planetary

2шт.

33

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- hex, 1/2 NC x 1-7/8 inch (Grade 8)

20шт.

34

L30674

WASHER

- carrier bolt

20шт.
