Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION

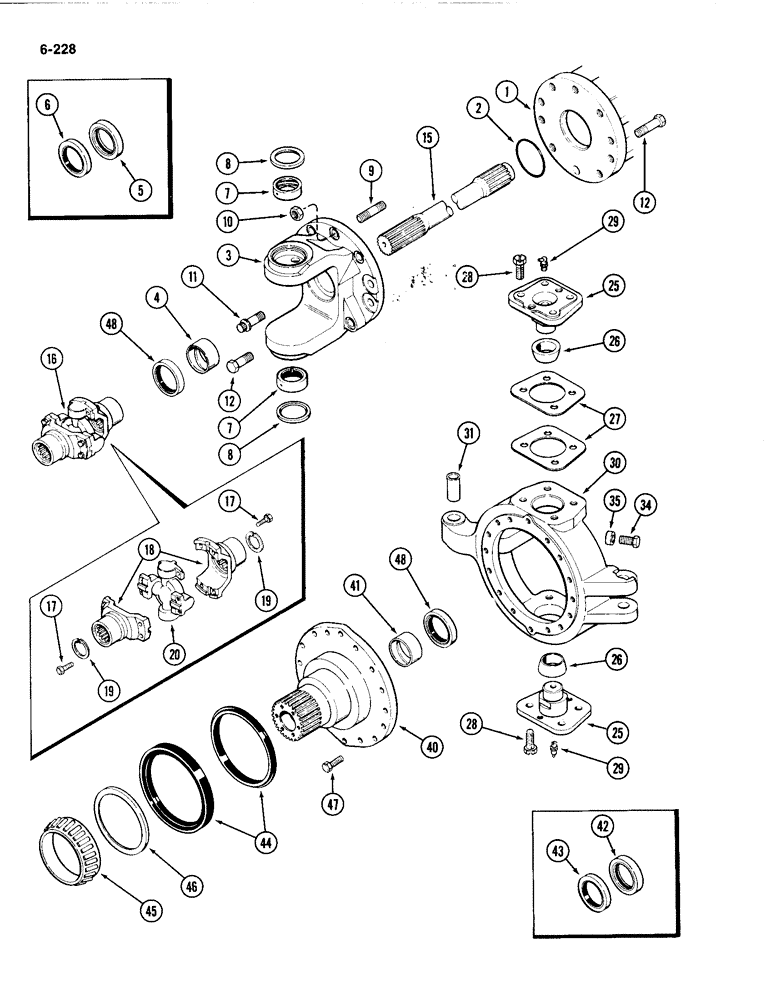

HOUSING - axle (See Figure 6-226)
1шт.
2
A21301
O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro
- housing
1шт.
3
A151030
AXLE
TRUNNION ASSEMBLY - axle, Includes: Ref. 4 - 7
1шт.
For repairs order 1 each of A152610 trunnion, 113-14 bolt, 13-1012 bolt, 219-41 fitting and 221-1849 plug
1шт.
4
A179704
BUSHING,63.55mm ID x 68.43mm OD x 38.1mm L
- universal joint, 2-11/16 O.D. x 1-1/2 inch wide
1шт.
5
NSS
NOT SOLD SEPARAT
SEAL - oil, 3/8 inch wide (Order A168810)
1шт.
6
NSS
NOT SOLD SEPARAT
SEAL - oil, 1/4 inch wide (Order A168810)
1шт.
7
A76570
BEARING WASHER,1.75" ID x 2.8122" OD x 1.07"
RING - bearing, king pin
2шт.
8
A142970
SEAL,63.88mm ID x 73.18mm OD x mm Thk
- grease, king pin
2шт.
9
A77281
STUD
- trunnion to axle housing, 3/4 NC x 2-7/8 inch
1шт.
10
25-1612
NUT,3/4"-10, G5, Hvy
- hex, 3/4 inch
1шт.
11
166-134
12 PT SCREW,Flg, 3/4" - 10 x 2", Gr 8
BOLT - 12 point head, 3/4 NC x 2 inch, Grade 8
2шт.
11
166-139
12 PT SCREW,Flg, 3/4" - 10 x 3 1/4", Gr 8
BOLT - 12 point head, 3/4 NC x 3-1/4 inch, Grade 8
2шт.
12
26-1232
BOLT,Hex, 3/4" - 10 x 2", Gr 8
4шт.
12
26-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8
- hex, 3/4 NC x 2-1/2 inch, Grade 8
1шт.
15
A75243
SHAFT
- axle, 32-1/2 inch long
1шт.
17
A12870
BOLT,Hex, 7/16" - 20 x 1 1/16"
- universal joint to slip yoke
8шт.
18
A44175
YOKE
- slip
2шт.
19
A44249
SNAP RING,1.812", Int, #181
Ring, Snap, 1.812", Int, #181
2шт.
20
D50866
SPIDER,49.28mm Cap Dia, 117.35mm L, Grease-able
U-joint - universal (Includes bearings)
1шт.
25
A152640
PIN
ASSEMBLY - king, upper and lower, Includes: Ref. 26
2шт.
26
A76576
BEARING WASHER,44.44mm ID x 63.88mm OD x 24.89mm Thk
RING - bearing
1шт.
27
A182553
SHIM,.002" Thk
King pin .002" Thk
1шт.
27
A136186
SHIM,82.96mm ID x 126.75mm OD x 0.13mm Thk
King pin .005" Thk
1шт.
27
A136187
SHIM,82.96mm ID x 126.75mm OD x 0.38mm Thk
King pin .015" Thk
1шт.
28
26-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8
- hex, 5/8 x 1-3/4 inch, Grade 8
8шт.
29
219-3
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight lube, 1/8 inch PT
2шт.
30
A152552
HOUSING
ASSEMBLY - spindle, Includes: Ref. 31
1шт.
31
A75239
BUSHING,22.28mm ID x 28.66mm OD x 56.34mm L
- tie rod pivot bolt
1шт.
35
A140011
BUSHING
SPACER - 21/32 x 1 x 5/16 inch
1шт.
40
A152503
SPINDLE
ASSEMBLY - wheel, Includes: Ref. 41 - 46
1шт.
41
A179704
BUSHING,63.55mm ID x 68.43mm OD x 38.1mm L
- universal joint, 2-11/16 O.D. x 1-1/2 inch wide
1шт.
42
NSS
NOT SOLD SEPARAT
SEAL - oil, 3/8 inch wide (Order A168810)
1шт.
43
NSS
NOT SOLD SEPARAT
SEAL - oil, 1/4 inch wide (Order A168810)
1шт.
44
A76272
OIL SEAL,174.22mm ID x 219.53mm OD x 20.95mm Thk
ASSEMBLY - oil, spindle
1шт.
45
306854C91
BEARING
CONE - bearing, wheel
1шт.
46
A75256
RING
- backup, bearing cone
1шт.
47
26-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8
14шт.
47
26-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8
2шт.
48
A168810
OIL SEAL,61.4mm ID x 89.31mm OD x 16mm Thk
- oil and dust
2шт.
Выбрано товаров: 42
