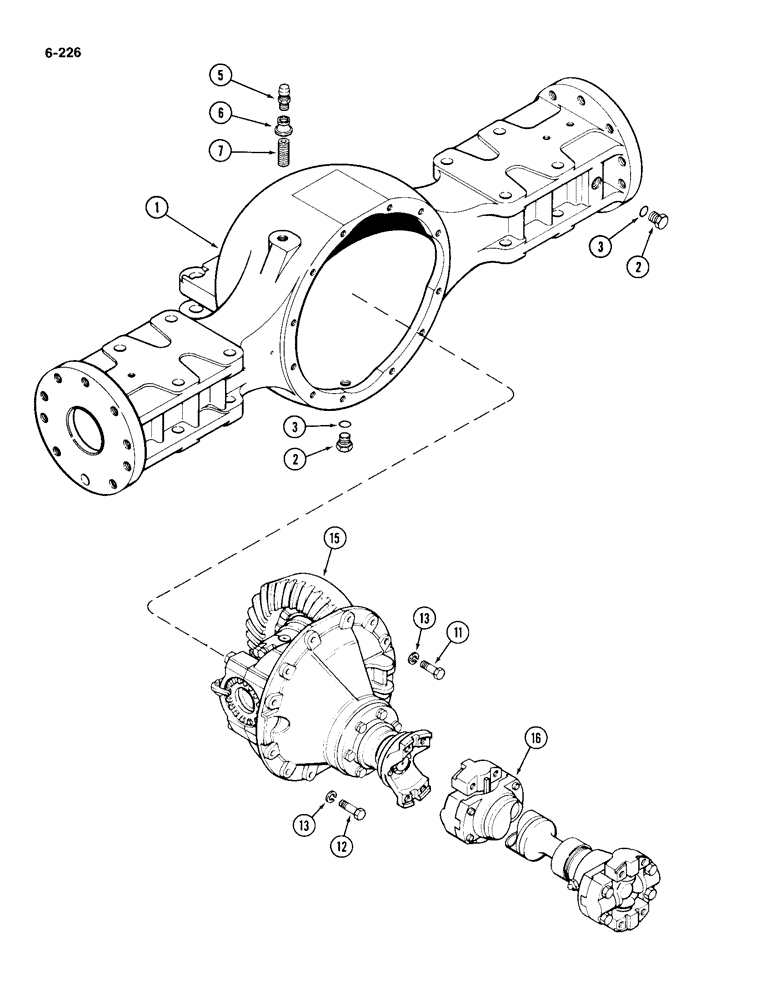

Запчасти Case IH 4494 (6-226) - REAR AXLE AND DIFFERENTIAL ASSEMBLY (06) - POWER TRAIN

1

A159510

HOUSING

- axle

1шт.

Axle Serial No. 13015953 and after

1шт.

1

A159509

HOUSING

OUSING - axle

1шт.

Prior to Axle serial No. 13015953

1шт.

2

A140222

PLUG

- drain, axle housing

2шт.

3

A517459

GASKET - drain plug

2шт.

5

A12928

BREATHER

- differential oil (If equipped)

1шт.

6

221-1345

COUPLING, BREAK AWAY

COUPLING - reducer, 1/8 x 1/8 inch PT (If equipped)

1шт.

7

221-1158

FITTING

NIPPLE - 3/8 PT x 1 inch long (If equipped)

1шт.

11

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

(Differential to Housing) Hex, 1/2"-13 x 1 1/2", G8, Full Thd

8шт.

12

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch (differential to housing)

4шт.

13

92-8

LOCK WASHER,1/2"

12шт.

15

REF

INSTRUCTION

DIFFERENTIAL ASSEMBLY - axle (See Figure 6-248 and 6-250)

1шт.

16

REF

INSTRUCTION

SHAFT ASSEMBLY - drive, rear axle (See Figure 6-244)

1шт.

A179221

CENTER AXLE

AXLE ASSEMBLY - rear (complete)

1шт.

Prior to Axle serial No. 13015953

1шт.

A179446

CENTER AXLE

AXLE ASSEMBLY - rear (complete)

1шт.

Axle Serial No. 13015953 and after

1шт.
