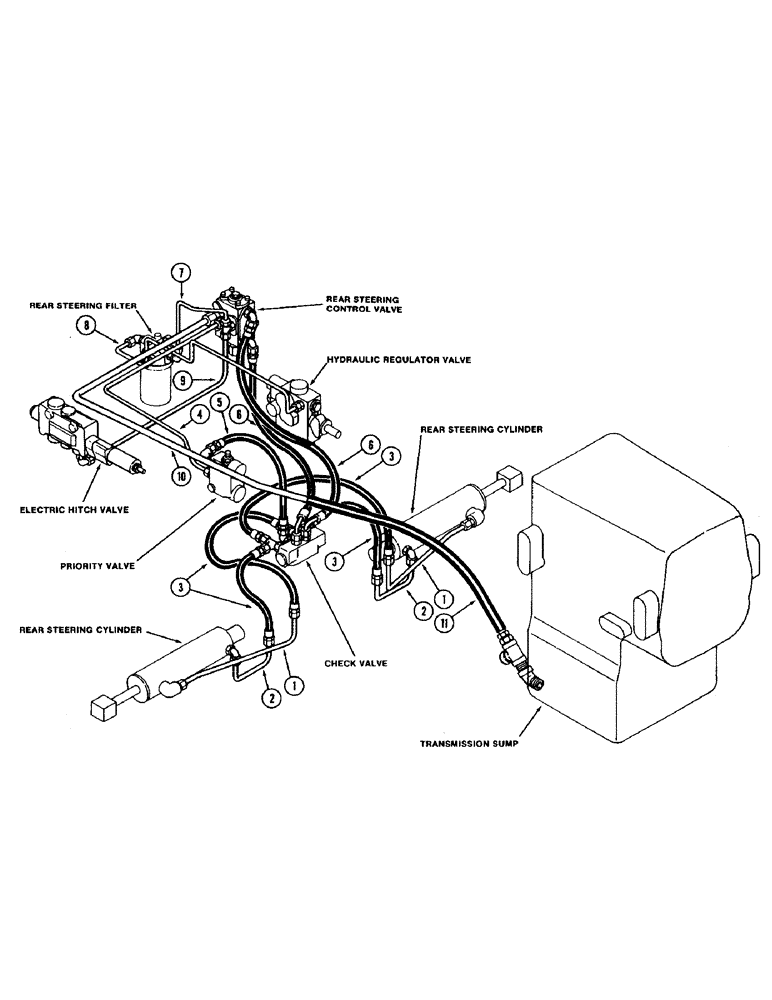

Запчасти Case IH 4494 (1-007) - PICTORIAL INDEX, REAR STEERING HYDRAULICS (00) - PICTORIAL INDEX

1

Steering cylinder tube to check valve hose (Long), Page 5-125

1шт.

2

Steering cylinder tube to check valve hose (Short), Page 5-125

1шт.

3

Steering cylinder hose to check valve, Page 5-125

1шт.

4

Steering valve to priority valve tube, Page 5-123

1шт.

5

Priority valve to check valve hose, Page 5-123

1шт.

6

Steering valve to check valve hose, Page 5-123, 125

1шт.

7

Steering filter outlet tube, Page 5-127

1шт.

8

Steerubg filter inlet tube, Page 5-127

1шт.

9

Steering valve to hitch valve tube, Page 5-127

1шт.

10

Steering valve to transmission sump tube, Page 8-293

1шт.

11

Steering valve to transmission sump hose, Page 8-293

1шт.
