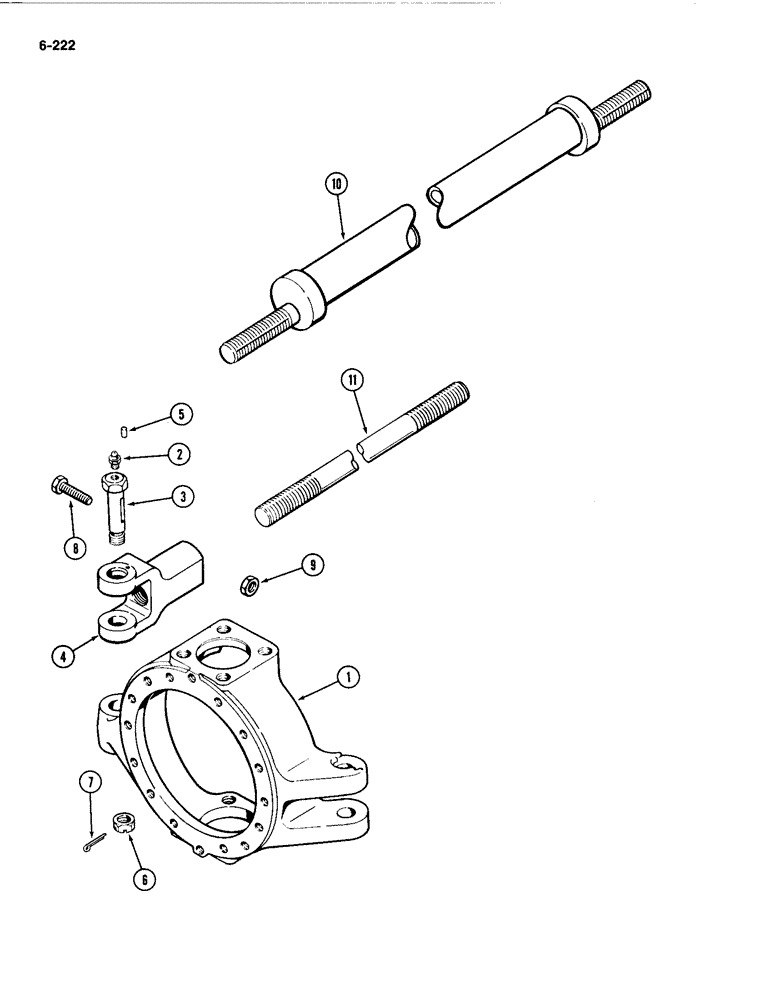

Запчасти Case IH 4494 (6-222) - FRONT AND REAR TIE RODS, PRIOR TO AXLE SERIAL NO. 13015953 (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING ASSEMBLY - spindle (See Figures 6-186, 6-188, 6-228 and 6-234)

4шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube

4шт.

3

A13107

BOLT

- pivot, tie rod yoke

4шт.

4

A182604

YOKE

- tie rod (Replaces A75253)

4шт.

5

138-324

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

2шт.

6

A13110

NUT

- tie rod pivot bolt

4шт.

7

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

4шт.

8

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

8шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

10

A155046

ROD

- tie, front axle, 58-5/16 inch (1481 mm)

1шт.

11

A76586

ROD

- tie, rear axle, 66-1/4 inch (1683 mm)

1шт.
