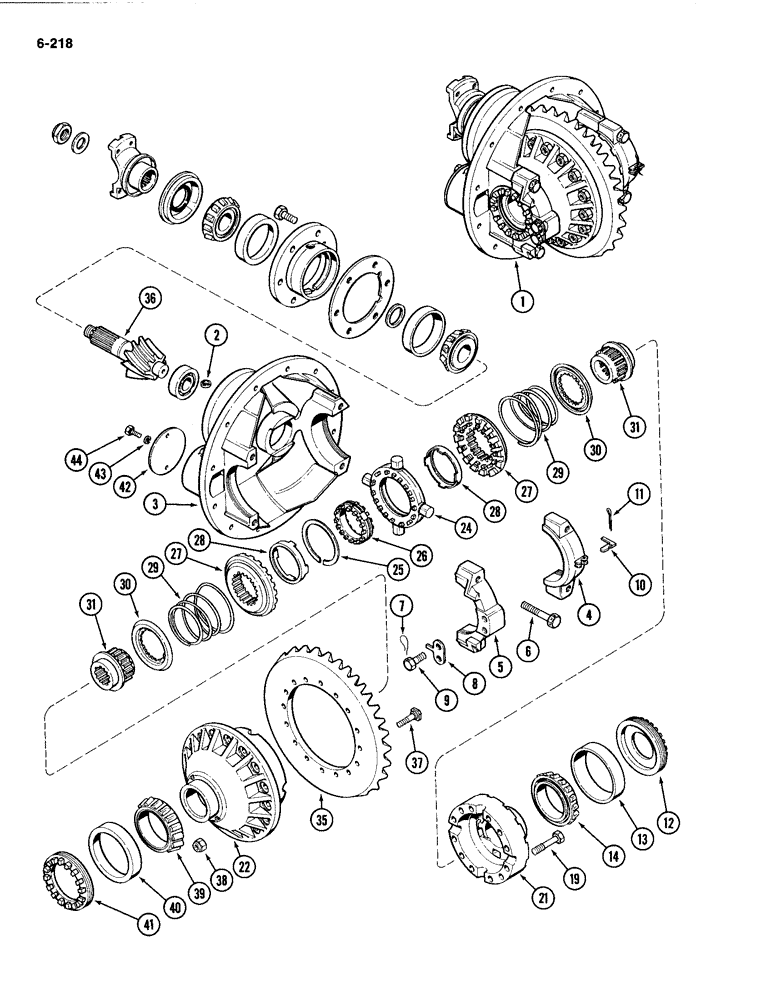

Запчасти Case IH 4494 (6-218) - FRONT AXLE DIFFERENTIAL AND CARRIER, NO SPIN DIFFERENTIAL, PRIOR TO AXLE SERIAL NO. 13015953 & AFTER (06) - POWER TRAIN

1

A179686

CARRIER

ASSEMBLY - no spin differential, front axle, Includes: Ref. 2 - 44 and 45 - 59 on Fig. 6-220

1шт.

A52384

CASE

HOUSING ASSEMBLY - differential pinion

1шт.

2

41-51

PLUG,Exp, 3 3/16"

- expansion, Includes: Ref. 3 - 6

2шт.

3

NSS

NOT SOLD SEPARAT

CARRIER - differential (Order A52384)

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - bearing, left

1шт.

5

NSS

NOT SOLD SEPARAT

CAP - bearing, right

1шт.

6

A44227

BOLT

-, Serial Range: cap-carrier

4шт.

7

391-614

WIRE - lock (Order 391-636)

2шт.

8

A52308

LOCK

- adjusting nut, left

1шт.

9

A52304

BOLT

- adjusting lock

2шт.

10

A45666

LOCK

- adjusting nut, right

1шт.

11

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

12

A52307

ADJUSTER

NUT - adjusting, left bearing

1шт.

13

A7892

BEARING, CUP

CUP - left bearing

1шт.

14

A7893

ROLLER BEARING,3.375" ID x 1.172"

CONE - left bearing

1шт.

A52386

DIFFERENTIAL

ASSEMBLY - no spin axle, Includes: Ref. 19 - 31

1шт.

19

A45680

LOCK BOLT

BOLT - hex lock, 9/16 NC x 2-3/4 inch

12шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - plain half (Order A52386)

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - flange half (Order A52386)

1шт.

A48391

CAM

SPIDER ASSEMBLY - no spin, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

SPIDER - no spin

1шт.

25

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

26

NSS

NOT SOLD SEPARAT

CAM ASSEMBLY - center

1шт.

A48393

CLUTCH ASSEMBLY

- differential, Includes: Ref. 27 and 28

2шт.

27

NSS

NOT SOLD SEPARAT

CLUTCH

1шт.

28

NSS

NOT SOLD SEPARAT

RING - hold out

1шт.

29

S105726

SPRING

- clutch

2шт.

30

S105727

COLLAR

RETAINER - clutch spring

2шт.

31

A528382

GEAR - side

2шт.

A45112

GEAR

SET - matched pinion and drive gear (Replaces A44220), Includes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

GEAR - drive, 39 teeth (Order A45112)

1шт.

36

NSS

NOT SOLD SEPARAT

PINION - drive, 8 teeth (Order A45112)

1шт.

37

A52291

SQUARE BOLT,1/2" - 20 x 27/32", Gr 8

BOLT - drive, Serial Range: gear-housing

16шт.

38

A44264

NUT

- gear bolt

16шт.

39

A52289

ROLLER BEARING,3.8125" ID x 1.1406"

CONE - right bearing

1шт.

40

L33255

BEARING, CUP

CUP - right bearing

1шт.

41

A52306

ADJUSTER

NUT - adjusting, right bearing

1шт.

42

A52310

COVER

- opening

1шт.

43

192-162

LOCK WASHER,7/16"

7/16"

2шт.

44

113-316

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5, Full Thd

- hex, 7/16 NC x 1 inch

2шт.
