Запчасти Case IH 4494 (6-210) - FRONT AXLE DIFFERENTIAL & CARRIER, STANDARD AXLE DIFFERENTIAL & CARRIER, AXLE S/N 13015953 & AFTER (06) - POWER TRAIN

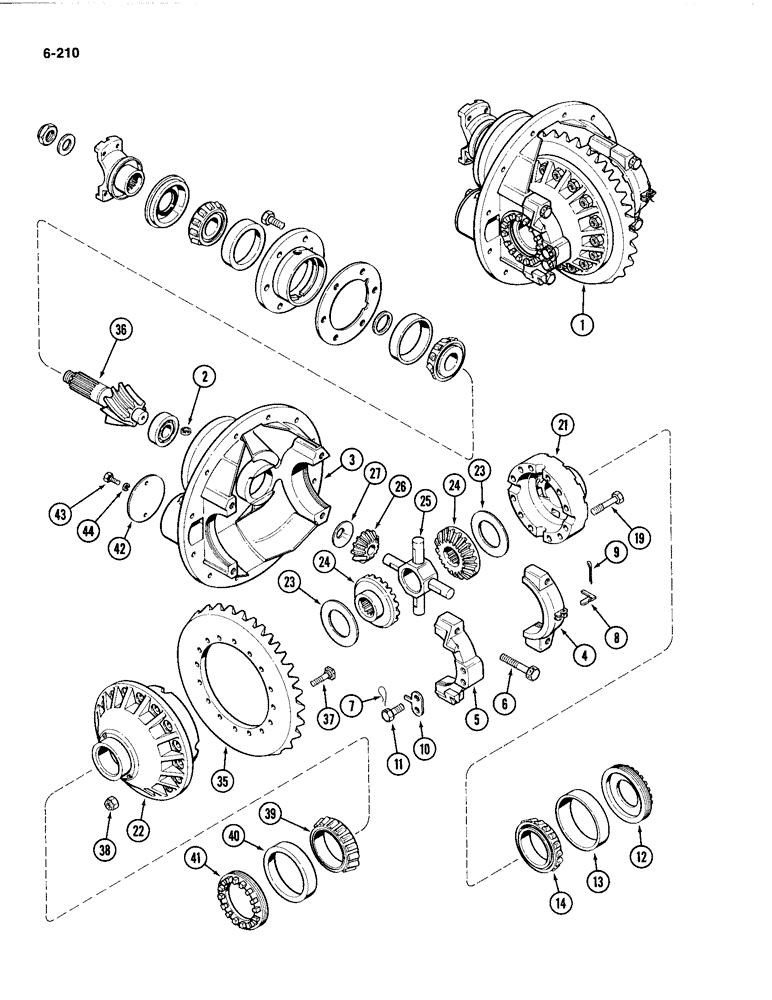

Схема запчастей Case IH 4494 - (6-210) - FRONT AXLE DIFFERENTIAL & CARRIER, STANDARD AXLE DIFFERENTIAL & CARRIER, AXLE S/N 13015953 & AFTER (06) - POWER TRAIN
24
1
42
23
39
24
44
40
26
41
36
7
11
8
43
2
3
13
35
6
12
9
10
14
4
27
23
37
38
19
5
22
25
21

Артикул

Название

Примечание

Количество

1

A179684

CARRIER

ASSEMBLY - standard differential, front axle, Includes: Ref. 2 - 44 and 45 - 59 on Fig. 6-212

1шт.

A52384

CASE

CARRIER ASSEMBLY - differential, Includes: Ref. 2 - 6

1шт.

2

41-15

PLUG

- expansion, 15/16 inch

2шт.

3

NSS

NOT SOLD SEPARAT

CARRIER - differential (Order A52384)

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - bearing

1шт.

5

NSS

NOT SOLD SEPARAT

CAP - bearing

1шт.

6

A44227

BOLT

-, Serial Range: cap-carrier

4шт.

7

391-636

ELECTRICAL WIRE

WIRE - lock

2шт.

8

A45666

LOCK

- adjusting nut, left

1шт.

9

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

10

A52308

LOCK

- adjusting nut, right

1шт.

11

A52304

BOLT

- adjusting lock

1шт.

12

A52307

ADJUSTER

NUT - adjusting, left bearing

1шт.

13

A7892

BEARING, CUP

CUP - left bearing

1шт.

14

A7983

CONE - left bearing

1шт.

A52386

DIFFERENTIAL

ASSEMBLY - axle, Includes: Ref. 19 - 22

1шт.

19

A45680

LOCK BOLT

BOLT - hex lock, 9.16 NC x 2-3/4 inch

12шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - plain half (Order A52386)

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - flange half (Order A52386)

1шт.

A52385

KIT

SIDE PINION AND GEAR KIT - differential, Includes: Ref. 23 - 27

1шт.

23

S68331

WASHER

- thrust, side gear

1шт.

24

NSS

NOT SOLD SEPARAT

GEAR - side

2шт.

25

S68333

U-JOINT SPIDER

SPIDER - differential pinion

1шт.

26

NSS

NOT SOLD SEPARAT

PINION - drive gear

4шт.

27

S68335

WASHER

- thrust

1шт.

A45112

GEAR

SET - matched pinion and drive gear (Replaces A44220), Includes: Ref. 35 and 36

1шт.

35

A45112

GEAR

- drive (Order A45112)

1шт.

36

NSS

NOT SOLD SEPARAT

PINION - drive (Order A45112)

1шт.

37

A52291

SQUARE BOLT,1/2" - 20 x 27/32", Gr 8

BOLT - drive, Serial Range: gear-case

16шт.

38

A44264

NUT

- gear bolt

16шт.

39

A52289

ROLLER BEARING,3.8125" ID x 1.1406"

CONE - right bearing

1шт.

40

L33255

BEARING, CUP

CUP - right bearing

1шт.

41

A52306

ADJUSTER

NUT - adjusting, right bearing

1шт.

42

A52310

COVER

- opening

1шт.

43

113-316

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5, Full Thd

- hex, 7/16 NC x 1 inch

2шт.

44

192-162

LOCK WASHER,7/16"

7/16"

2шт.

Выбрано товаров: 36
