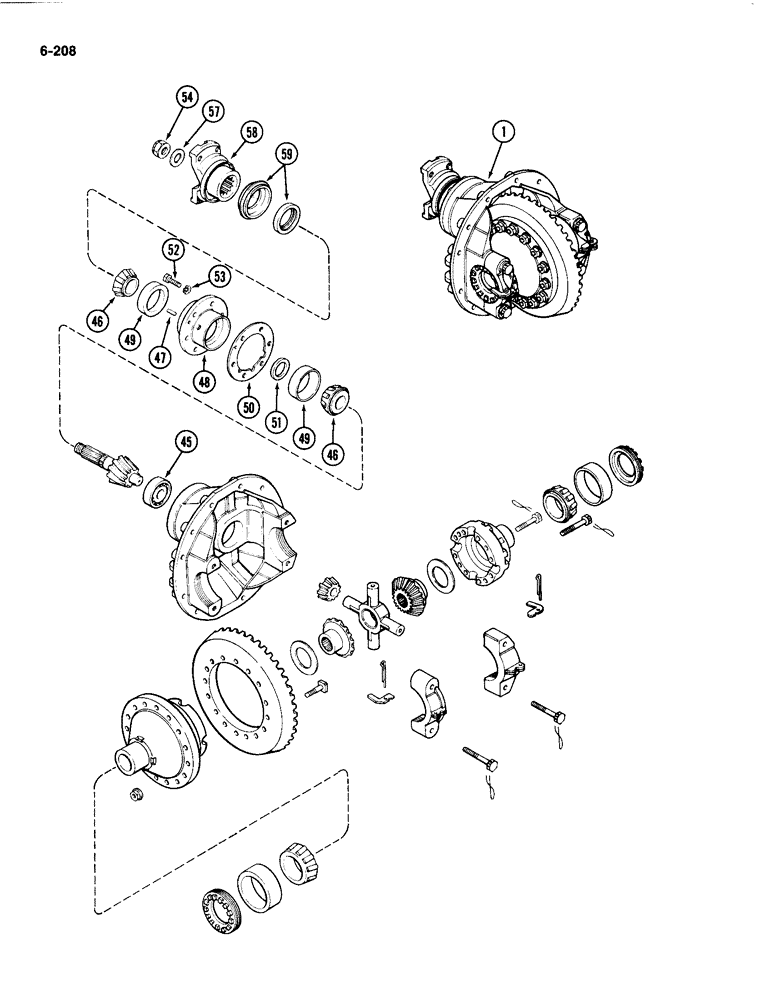

Запчасти Case IH 4494 (6-208) - FRONT AXLE DIFFERENTIAL AND CARRIER, STANDARD DIFFERENTIAL, PRIOR TO AXLE SERIAL NO. 13015953 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A153676
CARRIER
ASSEMBLY - standard differential, front axle (Continued from Figure 6-206), Includes: Ref. 45 - 59 and 3 - 41 on Fig. 6-206
1шт.
45
L33062
ROLLER BEARING
BEARING - roller, drive pinion
1шт.
46
A44210
ROLLER BEARING,1.75" ID x 1.25"
CONE - bearing, pinion shaft, 1-3/4 inch (44 mm) ID
2шт.
46
A44230
CAGE ASSY.,4.250" OD
CAGE ASSEMBLY - pinion bearing, Includes: Ref. 47 - 50
1шт.
47
A45631
PIN
- guide
1шт.
48
NSS
NOT SOLD SEPARAT
CAGE - bearing (Order A44230)
1шт.
49
F61284
BEARING CUP
CUP - bearing, pinion shaft, 3-3/4 inch (95 mm)
2шт.
50
A44232
SHIM,.003" Thk
Bearing cage (0.076 mm) .003" Thk
1шт.
50
A44233
SHIM,.005" Thk
Bearing cage (0.127 mm) .005" Thk
1шт.
50
A44234
SHIM,.010" Thk
Bearing cage (0.254 mm) .010" Thk
1шт.
50
A44236
SHIM,.030" Thk
Bearing cage (0.762 mm) .030" Thk
1шт.
51
A45587
BUSHING
SPACER - pinion bearing, 0.514 (13.056 mm)
1шт.
51
A45588
BUSHING
SPACER - pinion bearing, 0.522 inch (13.259 mm)
1шт.
51
A45589
BUSHING
SPACER - pinion bearing, 0.530 inch (13.462 mm)
1шт.
51
A45590
BUSHING
SPACER - pinion bearing, 0.538 inch (13.665 mm)
1шт.
51
A45591
BUSHING
SPACER - pinion bearing, 0.542 inch (13.767 mm)
1шт.
52
A44212
BOLT
- bearing cage
6шт.
53
193-62
LOCK WASHER,Int Tooth, 9/16"
WASHER - lock, 9/16 inch external shakeproof
6шт.
54
A45567
NUT
- yoke to pinion shaft
1шт.
57
A44209
WASHER
- yoke to pinin shaft
1шт.
58
A47568
YOKE
- drive shaft
1шт.
REF: 58 ECN C971234 IS RELEASING A 6C YOKE ASSY TO REPLACE A47568 YOKE. CUSTOMER WILL ALSO NEED NEW METRIC HWD. PARTS AS FOLLOWS: 317788A1 6 C YOKE WITH MUD SLING 253863A1 PINION GEAR SET 253988A1 PINION SHAFT WASHER AND 258056A1 DIFF PIN BEARING.
1шт.
59
A47594
OIL SEAL
ASSEMBLY - oil, pinion shaft (Replaces A48857)
1шт.
Выбрано товаров: 24
