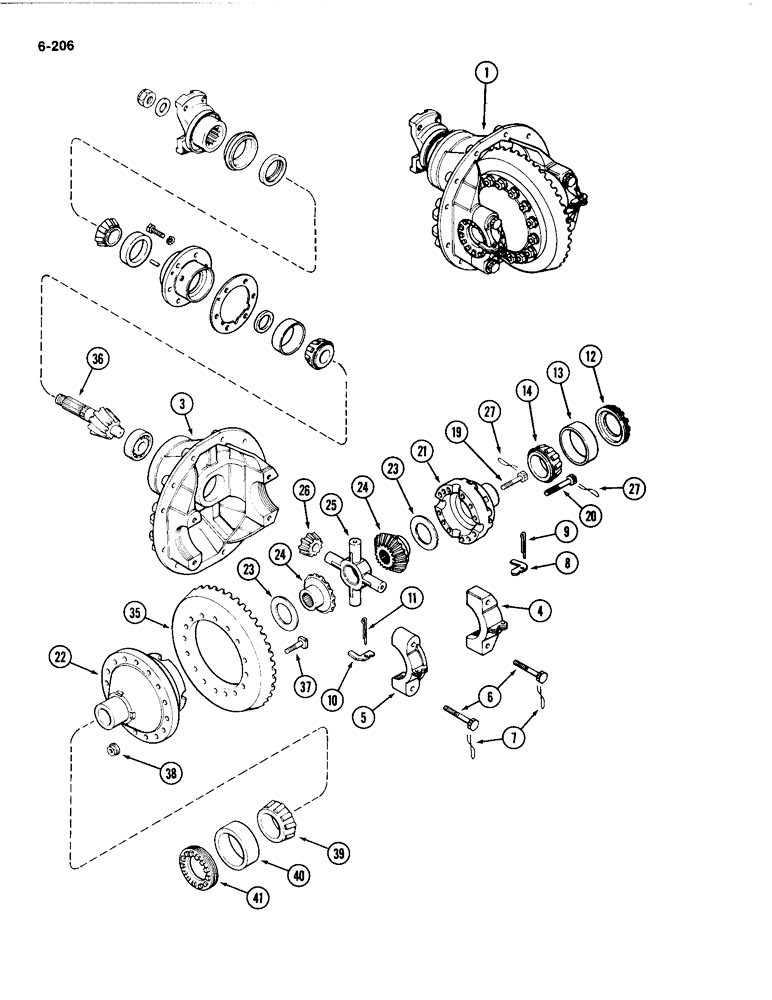

Запчасти Case IH 4494 (6-206) - FRONT AXLE DIFFERENTIAL AND CARRIER, STANDARD DIFFERENTIAL PRIOR TO AXLE SERIAL NO. 13015953 (06) - POWER TRAIN

1

A153676

CARRIER

ASSEMBLY - standard differential, front axle, Includes: Ref. 1 - 41 and 45 - 59 on fig. 6-208

1шт.

A44224

CARRIER

ASSEMBLY - differential, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

CARRIER - differential (Order A44224)

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - bearing

1шт.

5

NSS

NOT SOLD SEPARAT

CAP - bearing

1шт.

6

A44227

BOLT

-, Serial Range: cap-carrier

4шт.

7

391-621

ELECTRICAL WIRE

WIRE - lock, 16 gauge x 13 inch (2 x 330 mm) (Order 391-636)

4шт.

8

A44216

LOCK

- adjusting nut, left

1шт.

9

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

10

S44217

LOCK - adjusting nut, right

1шт.

11

132-348

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

12

A44214

NUT

- adjusting, left bearing

1шт.

13

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - left bearing, 4-7/16 inch (113 mm) O.D.

1шт.

A153802

DIFFERENTIAL

ASSEMBLY - axle, Includes: Ref. 19 - 22

1шт.

Ref #13 - Use ST963 Taper Brg.

1шт.

19

A44239

BOLT,Hex, 1/2" - 13 x 2 1/8", Gr 7, Gr 8 Optional, Drilled

- hex drilled, housing, 1/2 NC x 2-1/8 inch

4шт.

20

A44241

BOLT,1/2" x 2 7/8", Gr 7

- hex drilled, housing, 1/2 NC x 2-7/8 inch

8шт.

21

A44352

HOUSING

- plain half

1шт.

Ref #21 & 22 Order A48406 Case Kit - includes Ref. 21 & 22.

1шт.

22

A44351

HOUSING

- flange half

1шт.

Ref #21 & 22 Order A48406 Case Kit - includes Ref. 21 & 22.

1шт.

A153803

GEAR-SET

SIDE PINION AND GEAR KIT - differential, Includes: Ref. 23 - 26

1шт.

23

A45248

WASHER

- thrust, side gear, 0.058 inch (1/473 mm)

1шт.

23

A44204

WASHER

- thrust, side gear, 0.064 inch (1/549 mm)

1шт.

23

A44355

WASHER

- thrust, side gear, 0.064 inch (1.625 mm)

1шт.

23

A44356

WASHER

- thrust, side gear, 0.067 inch (1.702 mm)

1шт.

23

A44357

WASHER

- thrust, side gear, 0.070 inch (1.778 mm)

1шт.

23

A44358

WASHER

- thrust, side gear, 0.073 inch (1.854 mm)

1шт.

23

A44359

WASHER

- thrust, side gear, 0.076 inch (1.930 mm)

1шт.

Ref: 23, 24, 25 & 26 - Order A153803Gear Assy includes Refs.s 23 through 26 NAPO TECH NOTE

1шт.

24

NSS

NOT SOLD SEPARAT

GEAR - side

2шт.

Ref: 23, 24, 25 & 26 - Order A153803Gear Assy includes Refs.s 23 through 26 NAPO TECH NOTE

1шт.

25

A140051

U-JOINT SPIDER

SPIDER - differential pinion

1шт.

Ref: 23, 24, 25 & 26 - Order A153803Gear Assy includes Refs.s 23 through 26 NAPO TECH NOTE

1шт.

26

NSS

NOT SOLD SEPARAT

PINION - drive gear

4шт.

Ref: 23, 24, 25 & 26 - Order A153803Gear Assy includes Refs.s 23 through 26 NAPO TECH NOTE

1шт.

27

391-709

ELECTRICAL WIRE

WIRE - lock, 18 gauge, 84 inch (1 x 134 mm) roll

1шт.

A45112

GEAR

SET - matched pinion and drive gear, Includes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

GEAR - drive, 39 teeth (Order A45112)

1шт.

36

NSS

NOT SOLD SEPARAT

PINION - drive, 8 teeth (Order A45112)

1шт.

37

A44263

STEP BOLT

BOLT - drive, Serial Range: gear-case

16шт.

38

A44264

NUT

- gear bolt

16шт.

39

A31243

ROLLER BEARING

CONE - right bearing, 2-7/8 inch (73 mm) ID

1шт.

40

A31242

CUP

- right bearing, 5 inch (127 mm) O.D.

1шт.

41

A44215

NUT

- adjusting, right bearing

1шт.
