(1-005) - PICTORIAL INDEX, FRONT STEERING HYDRAULICS

Запчасти Case IH 4494 (1-005) - PICTORIAL INDEX, FRONT STEERING HYDRAULICS (00) - PICTORIAL INDEX

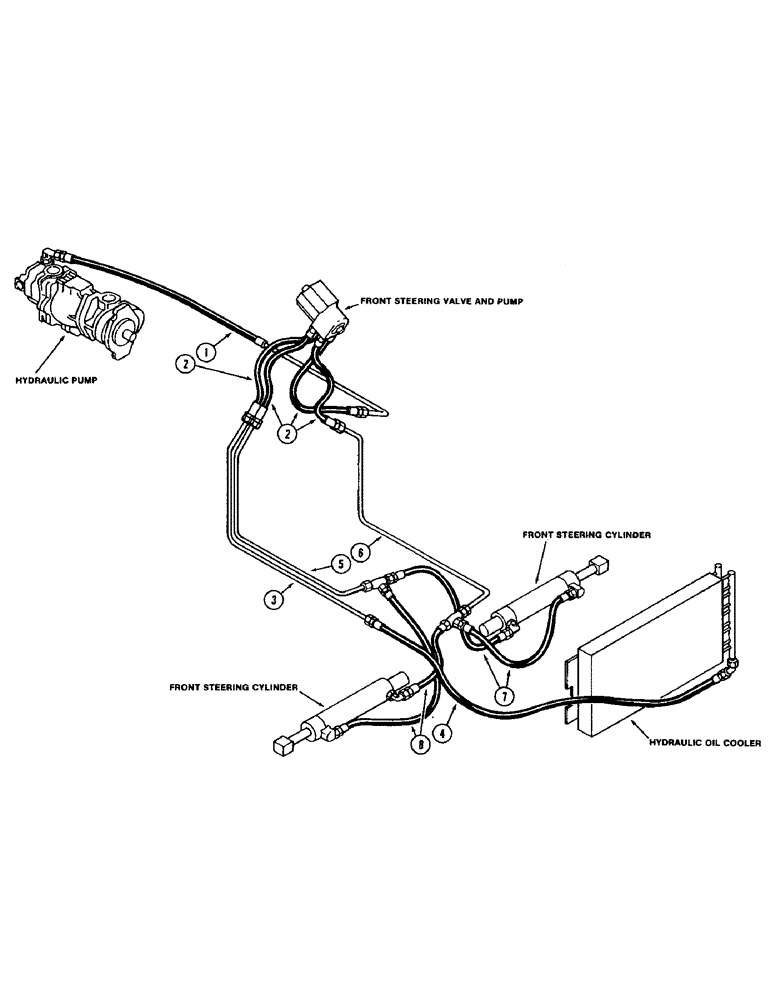

Схема запчастей Case IH 4494 - (1-005) - PICTORIAL INDEX, FRONT STEERING HYDRAULICS (00) - PICTORIAL INDEX
5
4
1
2
2
3
7
8
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Hydraulic pump hose to front steer pump and valve, Page 5-115

1шт.

2

Front steering valve and pump port hoses, Page 5-115

1шт.

3

Steering valve tube to oil cooler return, Page 5-115, 8-305

1шт.

4

Oil cooler return hose to steering valve, Page 8-305

1шт.

5

Steering valve tube for right steering cylinder, Page 5-115

1шт.

6

Steering valve tube for left steering cylinder, Page 5-115

1шт.

7

Left steering cylinder hoses, Page 5-115

1шт.

8

Right steering cylinder hoses, Page 5-115

1шт.
