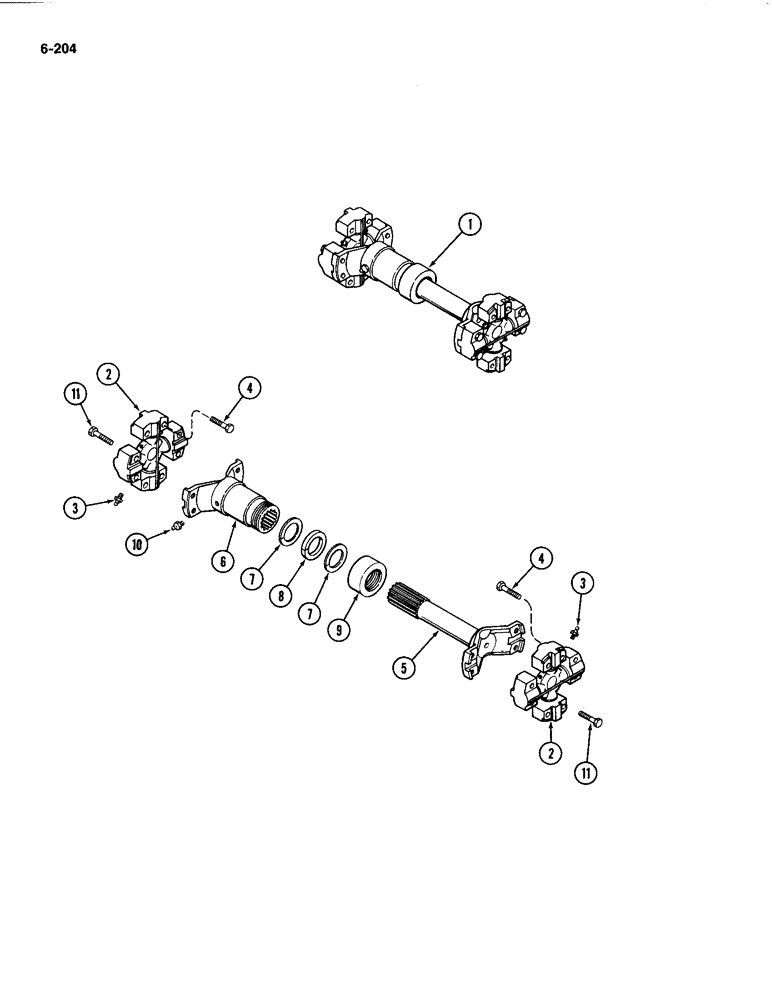

Запчасти Case IH 4494 (6-204) - FRONT AXLE DRIVE SHAFT, AXLE SERIAL NO. 13015953 AND AFTER (06) - POWER TRAIN

1

A182431

SHAFT

ASSEMBLY - drive, front axle (Order components), Includes: Ref. 2 - 11

1шт.

2

A182456

U-JOINT SPIDER

BEARING ASSEMBLY - drive shaft, Includes: Ref. 3 and 4

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight lube, 1/8 inch PT

4шт.

4

A17298

BOLT,Hex, 3/8" x 1 11/16"

SCREW - hex, cap, 3/8 NF x 1-11/16 inch

8шт.

5

A47530

TUBE

- drive shaft yoke

1шт.

D73676

YOKE

ASSEMBLY - slip, Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

YOKE - slip (Order D73676)

1шт.

7

D73712

WASHER

- retainer, felt seal

2шт.

8

D73711

FELT SEAL

- felt

1шт.

9

A19923

CAP

- seal

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight lube, 1/8 inch PT

1шт.

11

A17298

BOLT,Hex, 3/8" x 1 11/16"

SCREW - hex cap

8шт.
