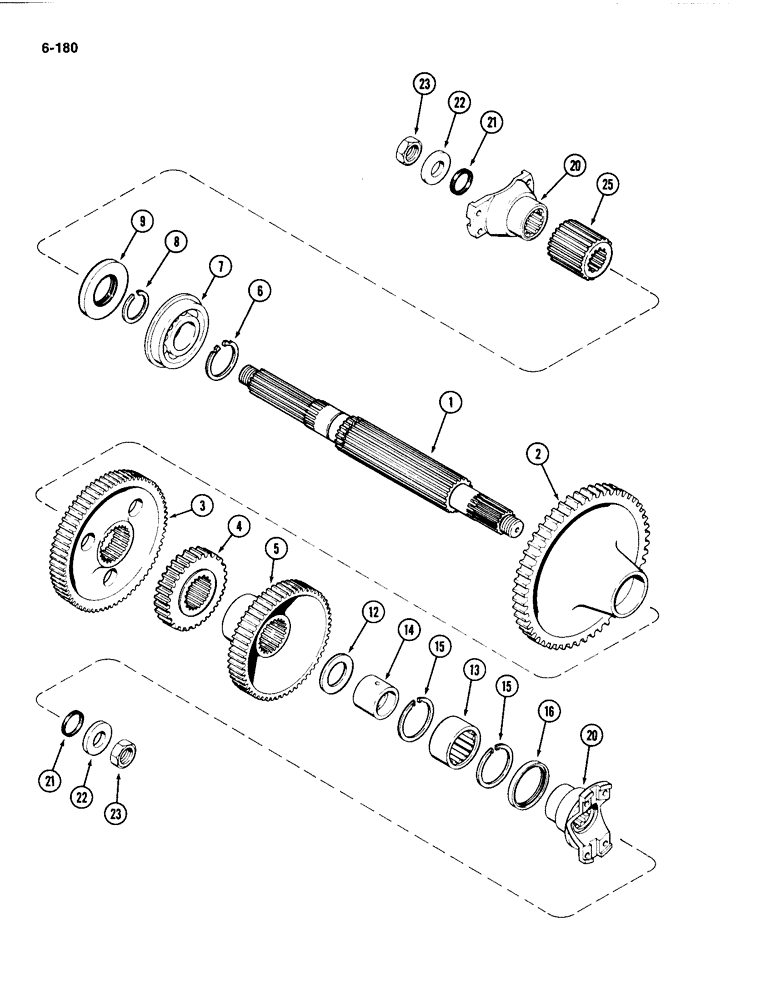

Запчасти Case IH 4494 (6-180) - TRANSMISSION OUTPUT SHAFT (06) - POWER TRAIN

1

A152337

SHAFT

- output

1шт.

2

A75143

GEAR

- first driven, 76 teeth

1шт.

3

A75142

GEAR

- second driven, 65 teeth

1шт.

4

A155291

GEAR

- fourth driven, 39 teeth

1шт.

5

A75140

GEAR

- third driven, 55 teeth

1шт.

6

A152350

RING

- snap, first gear

1шт.

7

A58098

BALL BEARING,1.9685" ID x 4.58" OD x 1.063"

BEARING - rear

1шт.

8

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, rear bearing

1шт.

9

A152352

OIL SEAL

- oil, brake housing

1шт.

12

A152341

WASHER

- thrust, front bearing

1шт.

13

H748087

NEEDLE BEARING,Needle, 63.78mm ID x 76.2mm OD x 38.1mm W

BEARING - front

1шт.

14

A152339

ROLLER BEARING,1.75" ID x 2.2489" OD x 2.01"

RACE - bearing, front

1шт.

15

A76298

SNAP RING,#300, 3.222", Int

RING - snap, front bearing

2шт.

16

A38231

OIL SEAL,66.67mm ID x 85.22mm OD x 9.53mm Thk

- oil, front

1шт.

20

A153631

CLEVIS

YOKE - drive shaft, front and rear

2шт.

21

A76373

SEALING WASHER

- yoke

2шт.

22

A75138

WASHER

- retainer

2шт.

23

131-584

LOCK NUT,1 1/8"-12

NUT - hex lock, 1-1/8 inch NF

2шт.

25

A152348

HUB

- brake adapter

1шт.
