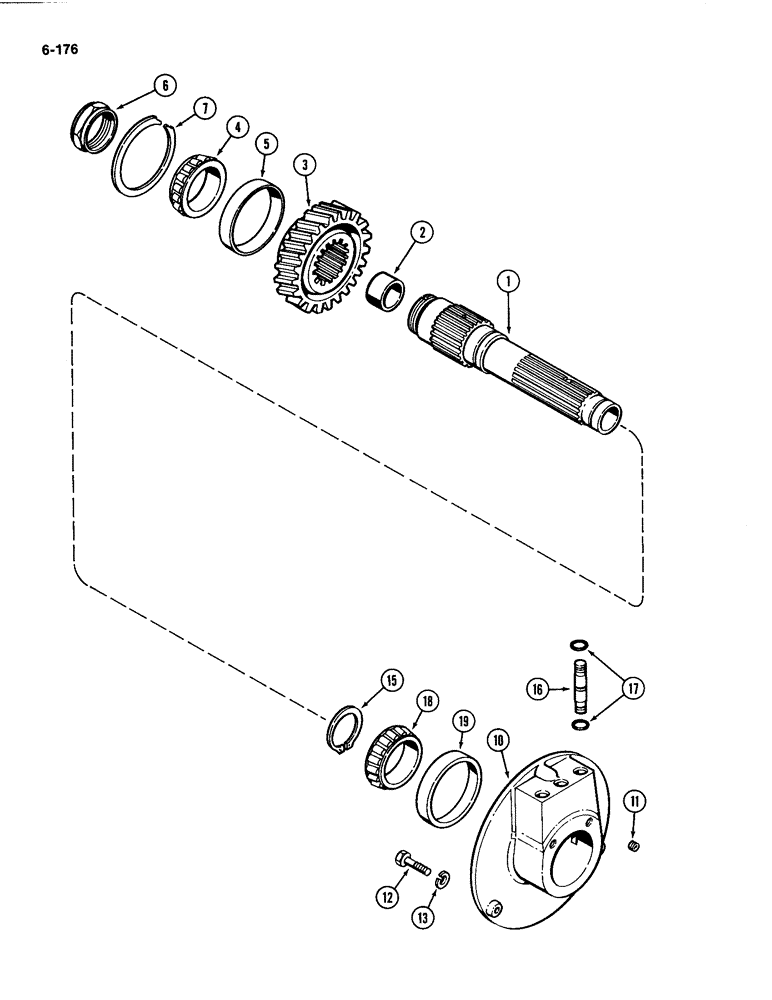

Запчасти Case IH 4494 (6-176) - TRANSMISION CLUTCH ASSEMBLY PLANETARY OUTPUT DRIVE SHAFT,TRANSMISSION SERIAL NO. 16248468 AND AFTER (06) - POWER TRAIN

1

A182296

SHAFT

ASSEMBLY - output, Includes: Ref. 2

1шт.

2

A76228

BUSHING,34.87mm ID x 41.31mm OD x 25.4mm L

- shaft

1шт.

3

A168312

GEAR WHEEL

GEAR - drive, intermediate shaft

1шт.

4

A7891

ROLLER BEARING

CONE - bearing, output shaft

1шт.

5

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - bearing

1шт.

6

A168497

NUT

- lock, rear bearing

1шт.

7

A179020

RING, SNAP

RING - snap, bearing, 0.091 inch

1шт.

7

A179018

RING, SNAP

RING - snap, bearing, 0.103 inch

1шт.

7

A179017

RING, SNAP

RING - snap, bearing, 0.115 inch

1шт.

7

S115909

RING, SNAP

RING - snap, bearing, 0.119 inch

1шт.

7

A179016

RING, SNAP

RING - snap, bearing, 0.121 inch

1шт.

7

A179015

RING, SNAP

RING - snap, bearing, 0.127 inch

1шт.

7

A179014

RING, SNAP

RING - snap, bearing, 0.133 inch

1шт.

10

A168311

CARRIER

- oil distributor

1шт.

11

221-841

PLUG

- socket head, 1/4 inch PT, oil distributer carrier

3шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Oil distributer carrier Hex, 3/8"-16 x 1 1/2", G5

3шт.

13

80682

LOCK WASHER,1/4"

Washer, Lock, , Oil distributer carrier 1/4"

3шт.

15

F40807

SNAP RING,#225, Ext

Ring, Snap, , carrier bearing, oil distributer #225, Ext

1шт.

16

A76120

TUBE

- oil, distributer carrier

3шт.

17

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- tube (Included in A46286 kit. See Figure 6-170, oil distributer carrier

6шт.

18

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

CONE - bearing, 2-1/4 inch ID, oil distributer carrier

1шт.

19

A50179

BEARING CUP

CUP - bearing, oil distributer carrier

1шт.

19

A168300

CLUTCH

ASSEMBLY - power shift and planetary (Complete Unit) (Includes parts listed on Figures 6-164 through 6-176)

1шт.
