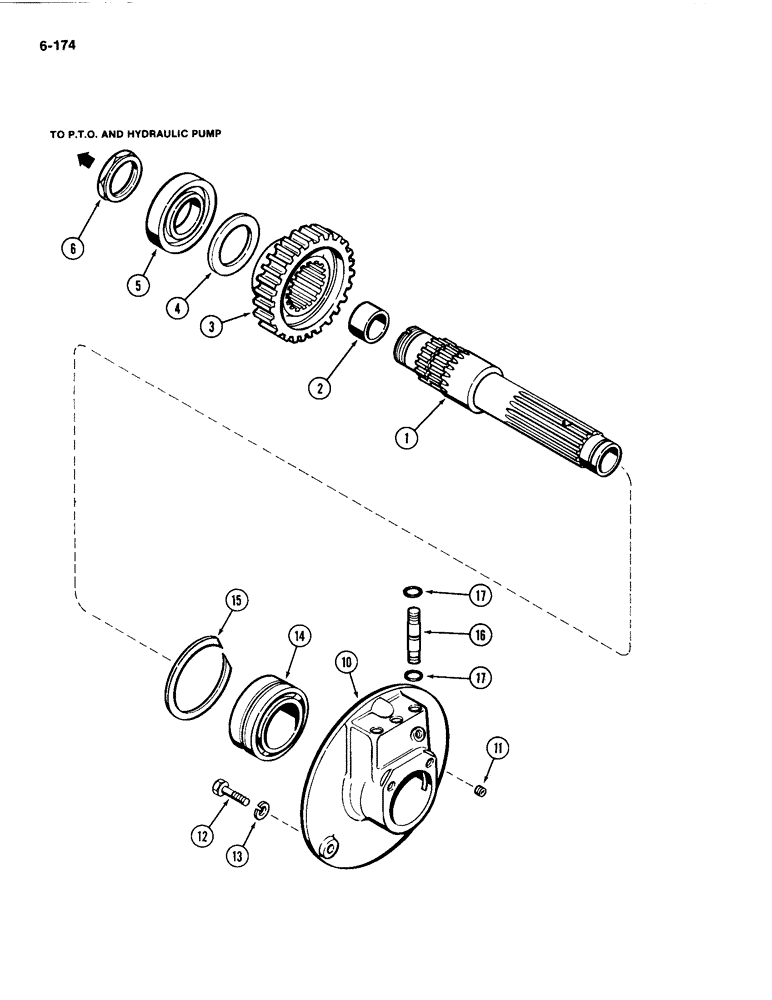

Запчасти Case IH 4494 (6-174) - TRANSMISSION CLUTCH ASSEMBLY PLANETARY OUTPUT DRIVE SHAFT, PRIOR TO TRANSMISSION SERIAL NO. 16258468 (06) - POWER TRAIN

1

A158316

SHAFT

ASSEMBLY - output, Includes: Ref. 2

1шт.

2

A76228

BUSHING,34.87mm ID x 41.31mm OD x 25.4mm L

- shaft

1шт.

3

A168010

DRIVE

GEAR - drive, intermediate shaft (37 external teeth)

1шт.

4

A154943

SPACER

- drive gear

1шт.

5

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - rear, output shaft

1шт.

6

A157950

NUT

- lock, rear bearing

1шт.

10

A152329

CARRIER

- oil distributor

1шт.

11

221-841

PLUG

- socket head, 1/4 inch PT, oil distributer carrier

3шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Oil distributer carrier Hex, 3/8"-16 x 1 1/2", G5

3шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Oil distributer carrier 3/8"

3шт.

14

A152343

BEARING, ROLLER, CYL,65mm ID x 105mm OD x 54mm W

BEARING - carrier, oil distributer

1шт.

15

A138737

RING

- snap, carrier bearing, oil distributer

1шт.

16

A76120

TUBE

- oil, distributer carrier

3шт.

17

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- tube (Included in A46286 kit. See Figure 6-170), oil distributer carrier

6шт.

A153169

CLUTCH

ASSEMBLY - power shift and planetary (Complete Unit) (Includes parts listed on Figures 6-162 through 6-174), oil distributer carrier

1шт.
