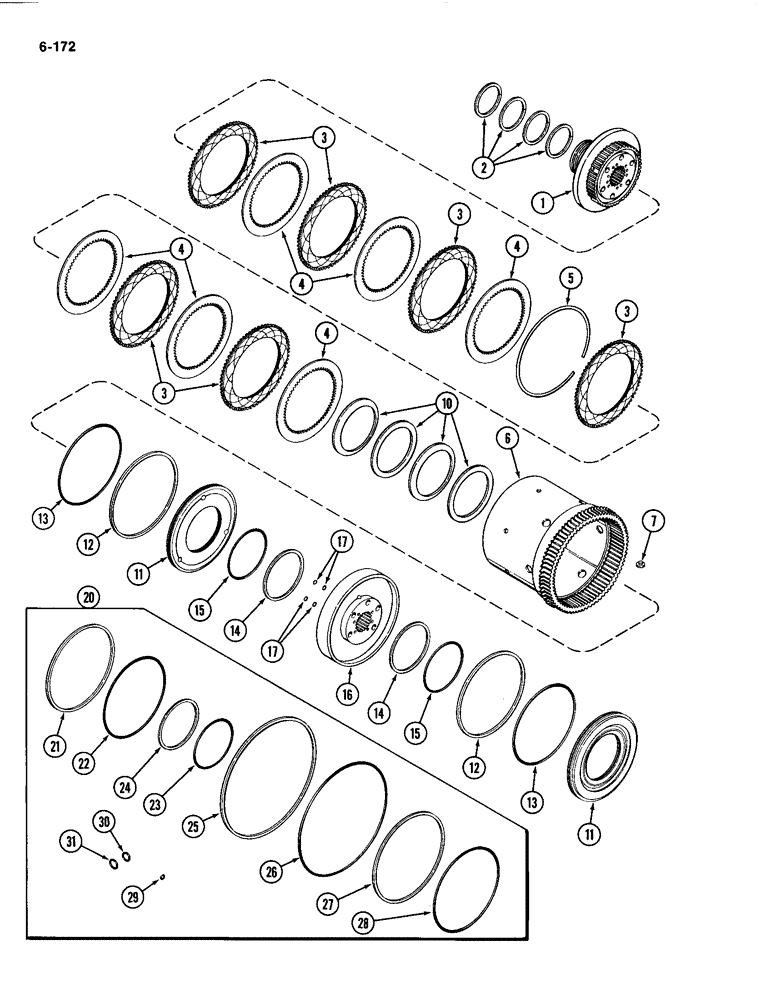

Запчасти Case IH 4494 (6-172) - TRANSMISSION CLUTCH ASSEMBLY, (C2) AND (C3) CLUTCHES, TRANSMISSION SERIAL NO. 16258468 AND AFTER (06) - POWER TRAIN

1

A168310

HUB

ASSEMBLY - (C3) clutch

1шт.

2

A58384

RING

- oil distributor seal

4шт.

3

A61981

PLATE

- sintered, (C3) clutch

6шт.

4

A155461

PLATE

- steel, (C3) clutch

6шт.

5

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, ring gear

1шт.

6

A168309

GEAR

- planetary ring

1шт.

7

A58413

BUTTON

BEARING - button, ring gear

6шт.

10

A58094

SPRING

- return, (C3) piston

4шт.

11

A146670

PISTON

- (C2) and (C3) clutch

2шт.

12

A146682

RING

- external seal, 8-1/4 inch (210 mm) ID (See A46286 kit, Ref. 20)

2шт.

13

A150753

O-RING,7.84" ID x 0.107"

- external seal, 7-3/4 inch (197 mm) ID (See A46286 kit, Ref. 20)

2шт.

14

A146683

RING

- internal seal, 4-1/2 inch (114 mm) O.D. (See A46286 kit, Ref. 20)

2шт.

15

A150754

O-RING,4.718" ID x 0.107"

- internal seal, 5 inch (127 mm) O.D. (See A46286 kit, Ref. 20)

2шт.

16

A150105

CARRIER

- piston, (C2) and (C3) clutch

1шт.

17

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - oil seal (See A46286 kit, Ref 20)

1шт.

20

A46286

SEAL KIT,Power Shift

KIT - seal, clutch piston, Includes: Ref. 21 - 31

1шт.

21

A146682

RING

- seal, external (C1), (C2) and (C3) 8-1/4 x 8-1/2 x 1/8 inch (210 x 221 x 3 mm)

3шт.

22

A150753

O-RING,7.84" ID x 0.107"

- external (C1), (C2) and (C3) 7-3/4 ID x 7/64 inch (197 ID x 3 mm)

3шт.

23

A146683

RING

- seal, internal (C1), (C2) and (C3) 4-1/4 ID x 1/8 inch width (108 ID x 3 mm width)

3шт.

24

A150754

O-RING,4.718" ID x 0.107"

- internal (C1), (C2) and (C3) 4-3/4 ID x 7/64 inch width (121 ID x 3 mm width)

3шт.

25

A146680

RING

- seal, exteranl (C4) 12-1/2 ID x 1/8 inch width (318 ID x 3 mm width)

1шт.

26

A150751

O-RING,12.09" ID x 0.107"

- external (C4), 11-3/4 ID x 7/64 inch width (298 ID x 3 mm width)

1шт.

27

A146681

SEAL

- seal, internal (C4), 8-3/4 ID x 1/8 inch width (227 ID x 3 mm width)

1шт.

28

A150752

O-RING,9.206" ID x 0.107" OD

- internal (C4), 9-1/8 ID x 7/64 inch width (2321 ID x 3 mm width)

1шт.

29

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - piston carrier, 5/16 ID x 1/16 inch square width (8 ID x 2 mm width)

4шт.

30

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- lube tube, 1/2 ID x 1/16 inch (13 ID x 2 mm width)

7шт.

31

A65918

O-RING,0.551" ID x 0.691" OD

- oil seal, 9/16 ID x 1/16 inch width (14 ID x 2 mm width)

5шт.

A168300

CLUTCH

ASSEMBLY - power shift and planetary (Complete Unit) (Includes parts on figures 6-164 through 6-176)

1шт.
