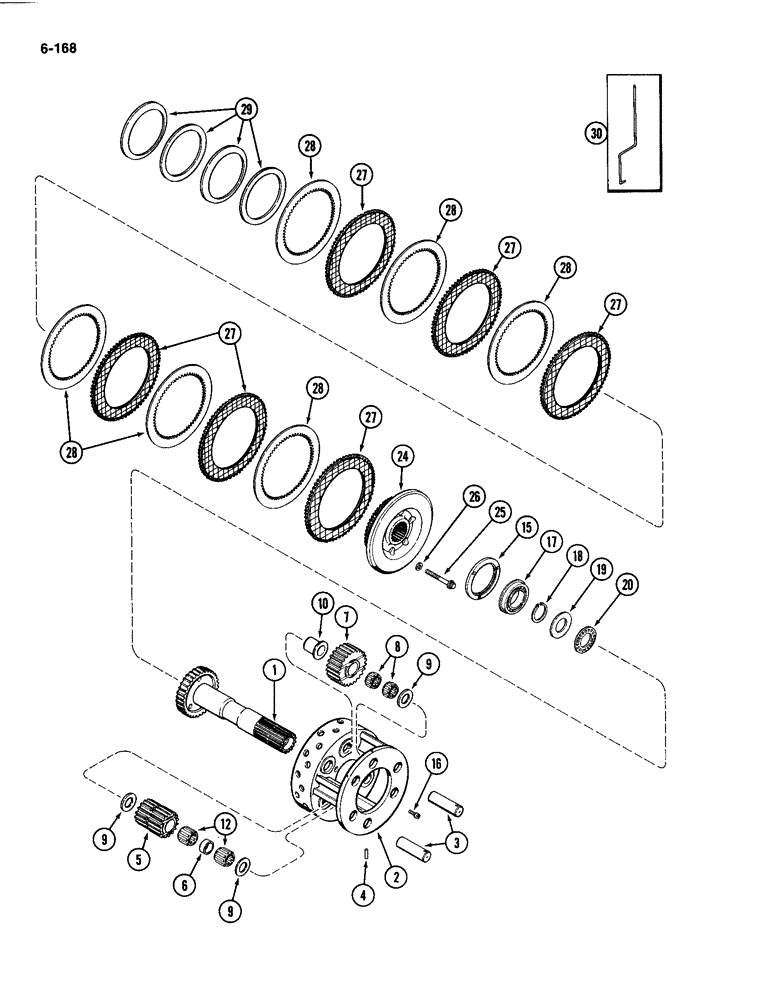

Запчасти Case IH 4494 (6-168) - TRANSMISSION CLUTCH ASSEMBLY, (C2) CLUTCH AND PLANETARY, TRANSMISSION SERIAL NO. 16258468 AND AFTER (06) - POWER TRAIN

1

A168992

SHAFT

- drive gear, input

1шт.

2

A168305

CARRIER

- planetary

1шт.

3

A168912

PIN,25.4mm OD x 105.28mm L

- planetary gear

6шт.

4

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

6шт.

5

A179196

GEAR

- planet long

3шт.

6

A146606

SPACER

BEARING - needle, long planet gear

3шт.

7

A179099

GEAR

- planet, short

3шт.

8

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

BEARING - roller, short planet gear

6шт.

9

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, needle bearing

9шт.

10

A151046

SPACER

- rear, short planet gear

3шт.

12

A62543

NEEDLE BEARING,25.39mm ID x 33.36mm OD x 31.56mm W

BEARING - needle, long planetary gears

6шт.

15

A146603

RETAINER

REATAINER - planetary carrier

1шт.

16

62-410

HEX SOC SCREW,1/4"-28 x 5/8"

SCREW - socket head cap, 1/4 NF x 5/8 inch

3шт.

17

A63109

BEARING, BALL

BEARING - carrier (Includes snap ring)

1шт.

18

A7611

SNAP RING,#175, Ext

Ring, Snap, , output shaft #175, Ext

1шт.

19

A54021

WASHER

RACE - thrust, drive gear

1шт.

20

A154648

THRUST BEARING,44.5mm ID x 66.04mm OD x 2.69mm W

BEARING ASSEMBLY - thrust, drive gear

1шт.

24

A168930

HUB

- (C2) clutch

1шт.

25

166-129

12 PT SCREW,Flg, 1/2" - 13 x 3 3/4", Gr 8

SCREW - 12 point head, 1/2 NC x 3-3/4 inch

6шт.

26

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- hardened

6шт.

27

A61981

PLATE

- sintered, (C2) clutch

6шт.

28

A155461

PLATE

- steel, (C2) clutch

6шт.

29

A58094

SPRING

- return

4шт.

30

A44341

HOLDER

- clutch plate (Service tool)

2шт.

A168300

CLUTCH

ASSEMBLY - power shift and planetary (Complete Unit) (Includes parts on Figures 6-164 through 6-176)

1шт.
