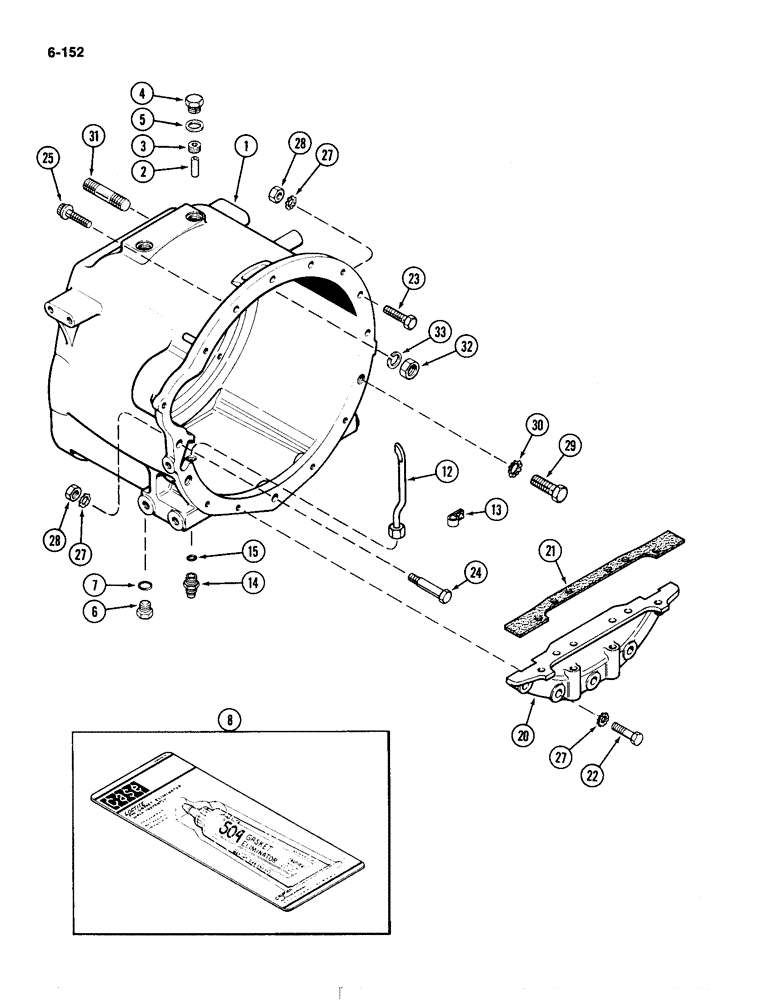

Запчасти Case IH 4490 (6-152) - CLUTCH HOUSING (06) - POWER TRAIN

1

A140730

HOUSING

- clutch

1шт.

2

A58049

TUBE

- oil fill, (C1) and (C4) clutch

2шт.

3

A58050

PLUG

- fill tube

2шт.

4

214389

PLUG,3/4" - 16 ORB

Assy, Tube opening, Includes Ref. 5 Hex Hd, 3/4"-16 ORB

2шт.

5

2185006

O-RING - 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.

6

214389

PLUG,3/4" - 16 ORB

Assy, Drain, 1/2" tube, Includes Ref. 7 Hex Hd, 3/4"-16 ORB

1шт.

8

B17428

LOCTITE

- gasket eliminator, 2 oz (50 cc) tube

1шт.

12

A146773

TUBE

- lubricating, (C1) clutch

1шт.

13

49838

CLAMP

- tube

1шт.

14

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- tube, 3/4"-16 x 2-7/16"

1шт.

20

A144906

PLATE

- cover, flywheel

1шт.

21

REF

INSTRUCTION

GASKET - cover plate and oil pan (Order A152424 Figure 2-048)

1шт.

22

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

5шт.

23

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

1шт.

23

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

23

113-836

BOLT - 1/2 x 2-1/4" NC hex (Grade 5)

1шт.

24

A149764

STEP BOLT

BOLT - dowel (1/2 x 3-9/64" NC)

1шт.

24

A149765

STEP BOLT

BOLT - dowel (1/2 x 2-21/ 32" NC

2шт.

25

166-89

12 PT SCREW,1/2" - 13 x 2", Gr 8

BOLT - 1/2 x 2" NC 12 point head (Grade 8)

2шт.

25

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

BOLT - 1/2 x 1-3/4" NC 12 point head (Grade 8)

3шт.

27

A34650

LOCK WASHER

- lock (1/2" external type)

14шт.

28

129-105

NUT,Hex, 1/2" - 13, Gr 5

Grade 8 1/2"-13, G5

3шт.

29

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4 x 2-1/2" NC hex

2шт.

30

195-15

WASHER,#12

- lock, (3/4" enternal type)

2шт.

31

A151866

STUD

- transmission case (7/8" NF x 4")

4шт.

32

129-125

NUT,1/2"-20, G5

- 7/8" NF hex

4шт.

33

193-75

LOCK WASHER,7/8"

WASHER - lock, internal shakeproof 7/8"

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.
