Запчасти Case IH 4490 (5-148) - REAR STEERING CONTROL VALVE (05) - STEERING

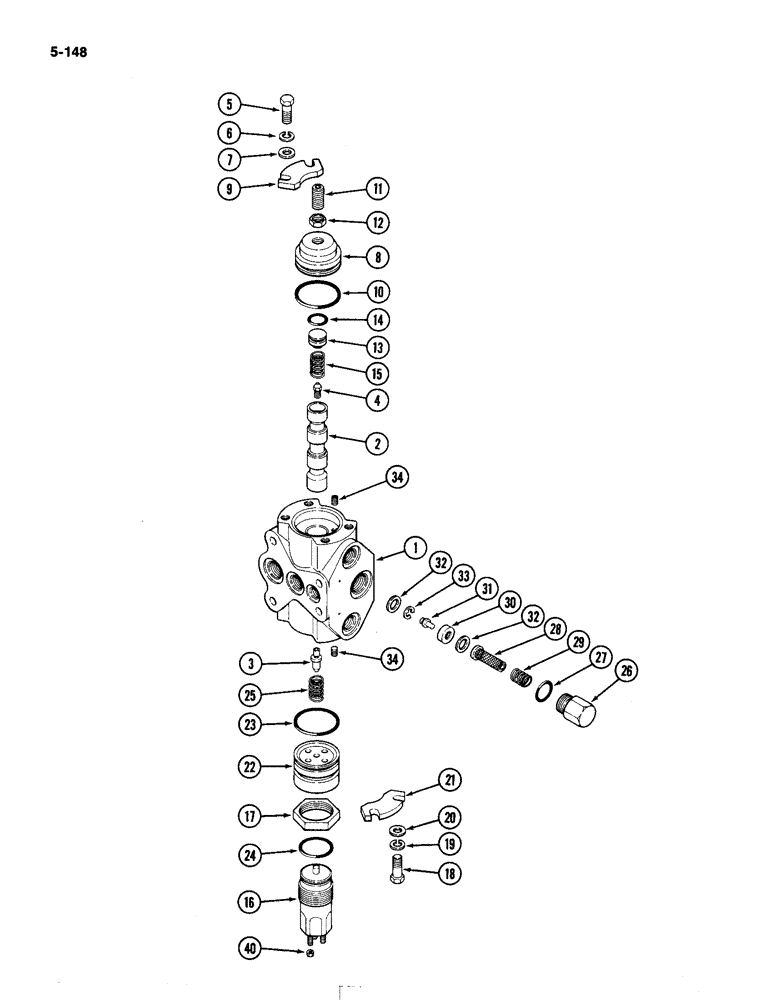

Схема запчастей Case IH 4490 - (5-148) - REAR STEERING CONTROL VALVE (05) - STEERING
14
34
30
18
11
34
32
12
8
32
5
15
27
4
10
24
29
1
13
28
33
23
7
17
3
21
20
26
40
25
22
16
2
6
9
19
31

Артикул

Название

Примечание

Количество

A145924

VALVE

ASSEMBLY - rear steering control, Includes: Ref. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - valve (Order A145924), Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A145924)

1шт.

3

NSS

NOT SOLD SEPARAT

NOZZLE - valve spool (Order A145924)

1шт.

4

NSS

NOT SOLD SEPARAT

ORIFICE - valve spool (Order A145924)

1шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

195-25

WASHER,3/8"

- flat, 13/32 x 13/16 x 1/16" (10.3 x 20.6 x 1.6 mm)

4шт.

8

A47511

GLAND

- valve, spool orifice

1шт.

9

A47510

RETAINER

- gland

2шт.

10

R20570

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

gland

1шт.

11

178-1385

SET SCREW,Hex Soc, 1/2"-20 x 1 1/4"

SCREW - set, 1/2 x 1-1/2 NF hex socket

1шт.

12

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

13

A47503

GUIDE

- spring, orifice

1шт.

14

F10894

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

- spring guide

1шт.

15

A47517

SPRING

- orifice

1шт.

16

A47512

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - force control

1шт.

17

A47515

LOCK NUT

- hex, force motor

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

195-25

WASHER,3/8"

- flat, 13/32 x 13/16 x 1/16" (10.3 x 20.6 x 1.6 mm)

4шт.

21

A47510

RETAINER

- gland

2шт.

22

A47507

GLAND

ASSEMBLY - nozzle, valve spool

1шт.

23

R20570

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

- outer, nozzle gland

1шт.

24

A59066

O-RING,1.239" ID x 1.379" OD

- inner, nozzle gland

1шт.

25

A47517

SPRING

- nozzle

1шт.

26

A47508

CAP

PLUG - filter

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- cap plug, 3/4 ID x 3/4 ID x 3/32" width (19.18 ID x 2.46 mm width)

1шт.

28

A47504

FILTER

- valve

1шт.

29

A47514

SPRING

- filter

1шт.

30

A47506

PLATE

- filter

1шт.

31

A47505

PIN

- filter plate

1шт.

32

A47550

SEAL,11.48mm ID x 15.85mm OD x 1.35mm Thk

GASKET - filter plate

2шт.

32

A31196

CIRCLIP,#25, .207" Dia, E-Type

Ring, Retaining, #25, .207" Dia, E-Type

2шт.

34

A47509

ORIFICE

- orifice, filter passage

2шт.

40

129-16

NUT,#8-32

3шт.

Выбрано товаров: 36
