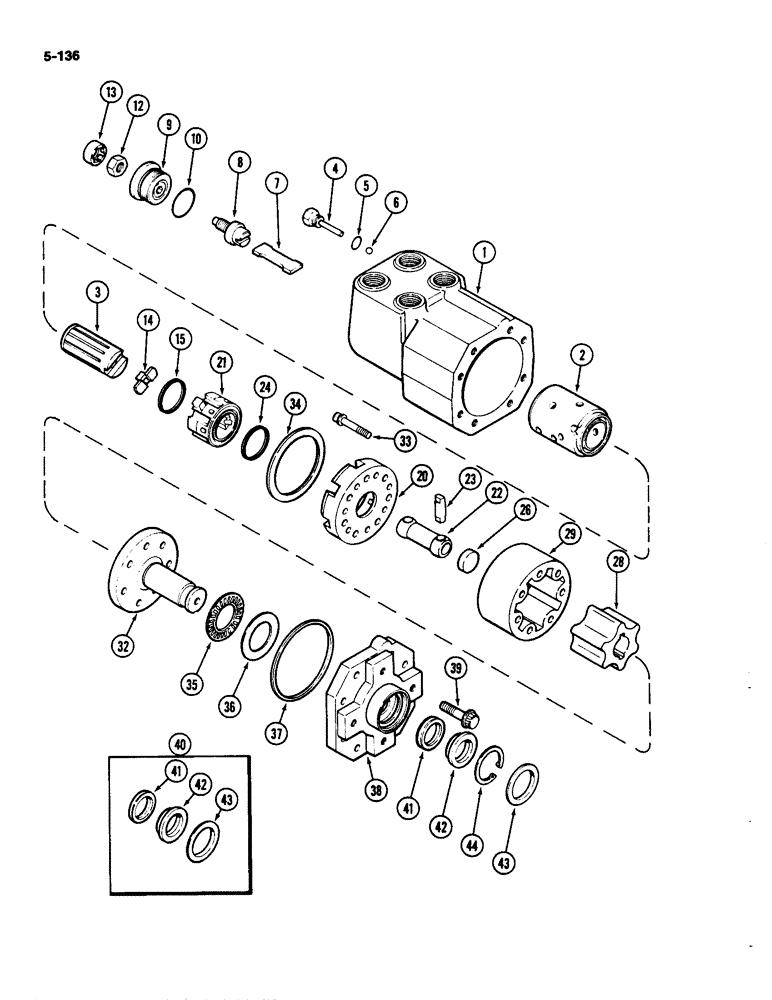

Запчасти Case IH 4490 (5-136) - FRONT STEERING PUMP AND VALVE, PRIOR TO P.I.N. 8860322 (05) - STEERING

A47840

PUMP

AND VALVE ASSEMBLY - steering (Remanufactured), Includes: Ref. 1 - 44

1шт.

A47841

RETURN NUMBER - steering valve and pump (Use this number to return pump core for credit)

1шт.

A145862

PUMP

AND VALVE ASSEMBLY - front steering, Includes: Ref. 1 - 44

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - (Order A145862)

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - valve (Order A145862)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A145862)

1шт.

4

A47019

PLUG

ASSEMBLY - pump port, Includes: Ref. 5

1шт.

5

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

6

A47018

BALL

- 9/32" (7.14 mm) diameter

1шт.

7

A45196

FAN

BLADE - torsion

2шт.

8

A45193

ADJUSTMENT SCREW,3/8" - 24 x 1.44"

SCREW - adjusting

1шт.

9

A47006

PLUG

ASSEMBLY - PUMP, Includes: Ref. 10

1шт.

10

A47005

O-RING,1.053" ID

- pump plug

1шт.

12

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam, 3/8" NC hex

1шт.

13

A47007

CAP

- pump

1шт.

14

A47668

RING

- drive

1шт.

15

A47421

SEALING RING

RING ASSEMBLY - seal

1шт.

A47419

MANIFOLD

ASSEMBLY - pump, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

MANIFOLD - pump (Order A47419)

1шт.

21

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump (Order A47419)

1шт.

22

F19635

LINK

- drive

1шт.

23

F19636

PIN

- lock

1шт.

24

A47421

SEALING RING

RING ASSEMBLY - seal

1шт.

26

A47413

SPACER

- 47/64" (18.77 mm) diameter x 1/8" (3.17 mm) wide

1шт.

A47395

ROTOR

SET - pump, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

ROTOR - pump (Order A47395)

1шт.

29

NSS

NOT SOLD SEPARAT

STATER - pump (Order A47395)

1шт.

32

A47009

SHAFT

- input

1шт.

33

A47417

SCREW,1/4" x 1 7/8"

- cap, 1/4 x 1-7/8" NF 12 point

7шт.

34

A160850

WASHER

- hardened

1шт.

35

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING - thrust, needle

1шт.

A47670

KIT

- thrust washer, Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.035" (0.89 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 1.141" (1.02 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.047" (1.19 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.053" (1.35 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.059" (1.50 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.065" (1.65 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.071" (1.80 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.077" (1.96 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.083" (2.11 mm)

1шт.

37

A47004

RING

- seal

1шт.

38

A47016

COVER

- upper

1шт.

39

A45197

12 PT SCREW,1/4" - 28 x 0.875"

SCREW - cap, 1/4 x 1" NF 12 point

8шт.

40

A47038

SEAL KIT,Pump Shaft

KIT - cover seal, Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

42

NSS

NOT SOLD SEPARAT

SEAL - spacer

1шт.

43

A47038

SEAL KIT,Pump Shaft

SEAL - shaft (replaces D70586)

1шт.

44

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.
