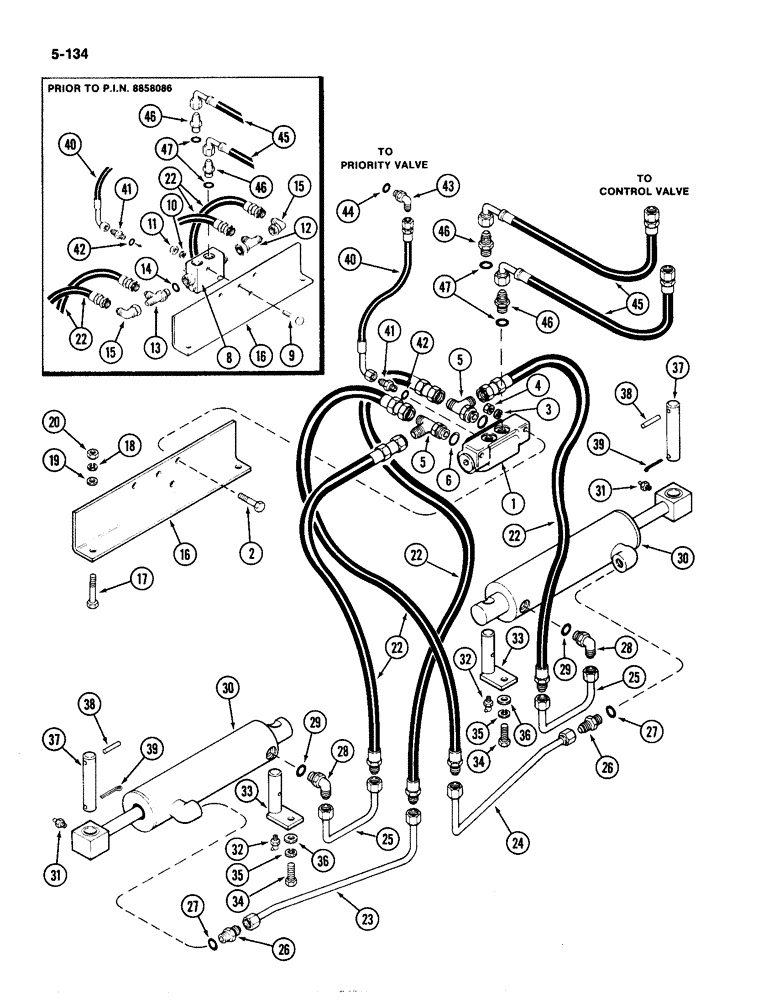

Запчасти Case IH 4490 (5-134) - REAR STEER HYDRAULICS, CHECK VALVE AND CYLINDERS (05) - STEERING

1

A161709

VALVE

ASSEMBLY - check (P.I.N. 8858086 and after)(See Figure 5-150)

1шт.

2

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

3

92-5

LOCK WASHER,5/16"

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

2шт.

5

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

CONNECTOR ASSEMBLY - branch, 1/2" tube x 3/4"-16, Includes: Ref. 6

2шт.

8

A147823

VALVE

ASSEMBLY - check (Prior to P.I.N. 8858086) (Order A161709 and 218-5242)(See Figure 5-150)

1шт.

9

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

CONNECTOR - tee branch, 1/2" tube x 3/4"-16

1шт.

13

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

CONNECTOR ASSEMBLY - tee branch, 1/2" tube x 3/4"-16 (RH hose), Includes: Ref. 14

1шт.

15

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree. 1/2" x 3/4"-16

2шт.

16

A161785

ANGLE

- mounting, check valve (Replaces A160004)

1шт.

17

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex (Grade 5)

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.1 x 25.4 x 2.8 mm)

2шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

22

A162278

HOSE,0.38" ID x 20.00", SAE 100R2 per SAE J517

- Valve to cylinder tube 0.38" ID x 20.00", SAE 100R2 per SAE J517

4шт.

23

A77058

TUBE

- hose to RH steering cylinder

1шт.

24

A77059

TUBE

- hose to LH steering cylinder

1шт.

25

A77057

TUBE

- valve, Serial Range: hose-cylinder

2шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2" tube x 3/4"-16, Incl. Ref 27

2шт.

28

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, 1/2" tube, Includes: Ref. 29 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

29

218-500

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

O-RING - 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.

30

REF

INSTRUCTION

CYLINDER ASSEMBLY - rear steer (See Figure 5-144)

2шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

32

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

33

A160384

PIN

- inner, steering cylinder (Replaces A76545)

2шт.

34

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

35

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

36

195-106

WASHER,1/2"

- -/16 x 1-3/8 x 7/64" (14.3 x 34.9 x 2.8 mm)

2шт.

37

A160382

PIN,25.4mm OD x 132.08mm L

- outer, steering cylinder

2шт.

38

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

PIN - groove, 1/4 x 1/2"

2шт.

39

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

40

A161535

TUBE

HOSE - priority valve to check valve (See Figure 5-132 for P.I.N. 8860450 and after)

1шт.

41

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSEMBLY - straight, 3/8" tube x 9/16"-18 (at check valve), Incl. Ref. 42

1шт.

42

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.89 ID x 1.98 mm width)

1шт.

43

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

ASSEMBLY - 90 degree, 3/8" tube x 7/16"-20 (at priority valve), Incl. Ref. 44

1шт.

44

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 ID x 5/64" width (8.92 ID x 1.83 mm width)

1шт.

45

A160449

HOSE

- control valve to check valve

2шт.

46

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2" tube x 3/4"-16 (at check valve), Incl. Ref 47

2шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID X 3/32" width (16.36 ID x 2.21 mm width)

1шт.

47

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.
