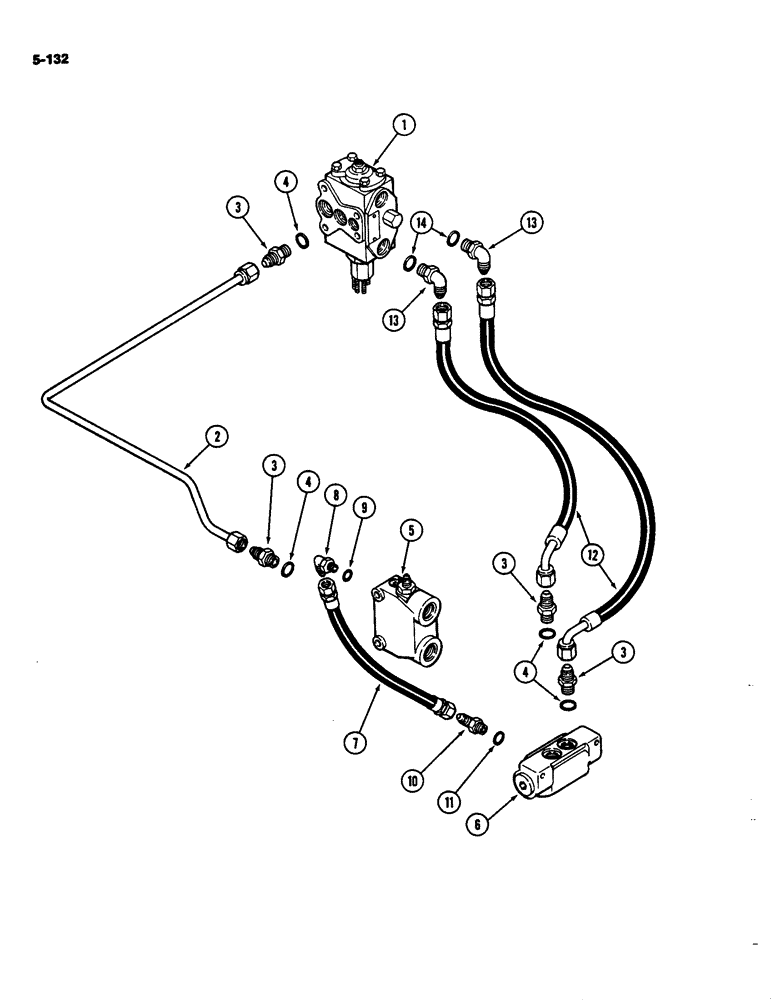

Запчасти Case IH 4490 (5-132) - REAR STEER HYDRAULICS, CHECK VALVE, P.I.N. 8860450 AND AFTER (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - rear steering (See Figure 5-148)

1шт.

2

A161879

TUBE

ASSEMBLY - priority valve to steering valve

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2" tube x 3/4-16" thread, Incl. Ref 4

4шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - priority (See Figure 5-146)

1шт.

6

REF

INSTRUCTION

VALVE ASSEMBLY - check (See Figure 5-150)

1шт.

7

A161882

HOSE

ASSEMBLY - priority, Serial Range: valve-check

1шт.

8

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

ASSEMBLY - 90 degree adjustable, 3/8" tube with 9/16" thread x 1/4" tube with 7/16" thread, Incl. Ref. 9

1шт.

9

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 ID x 5/64" width (8.92 ID x 1.83 mm width)

1шт.

10

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSEMBLY - 90 degree adjustable, 3/8" tube with 9/16" thread, Includes: Ref. 11

1шт.

11

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.89 ID x 1.98 mm width)

1шт.

12

A160449

HOSE

ASSEMBLY - steering valve to check valve

2шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Adjustable, 1/2" tube, Includes: Ref. 14 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32" width (16.36 ID x 2.21 mm width)

1шт.
