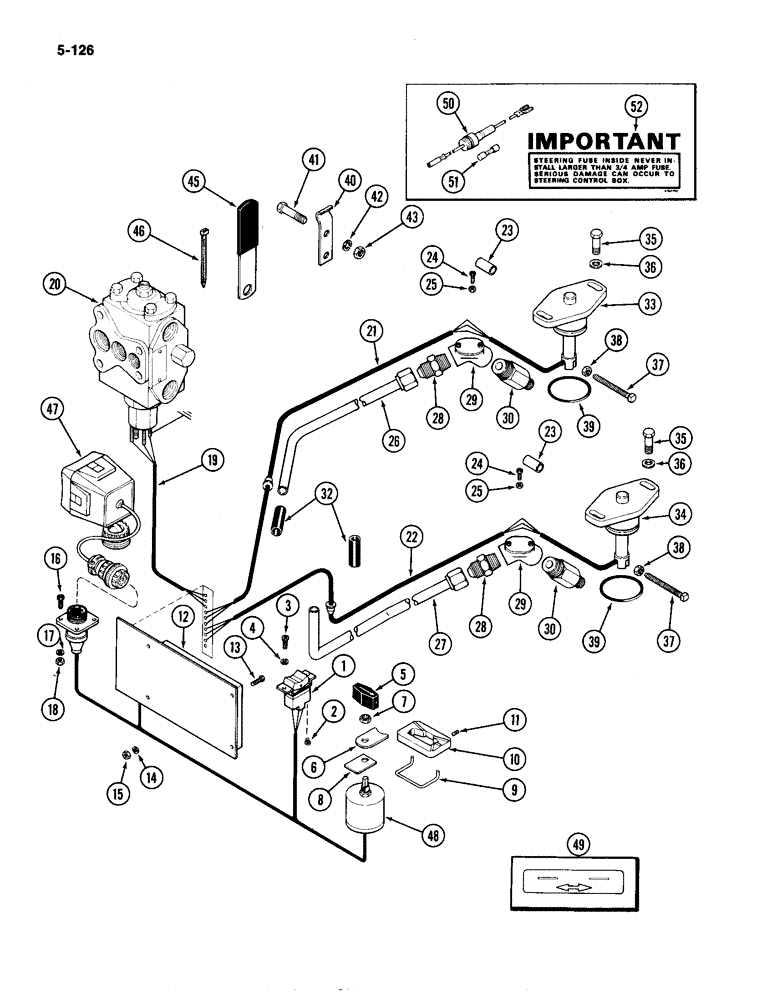

Запчасти Case IH 4490 (5-126) - REAR STEERING ELECTRIC CONTROLS (05) - STEERING

1

A162070

SWITCH

ASSEMBLY - rocker, rear steering control (Replaces A160186), Includes: Ref. 2

1шт.

2

182-583

SCREW,Slotted Pan Hd, #6-32 x 3/16"

- brass, #6-32 x 3/16" slotted pan head

3шт.

3

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- #6-32 x 1/2" Phillips pan head

2шт.

4

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

5

A160272

KNOB

- control box, steering

1шт.

6

A162042

PLATE

STRAP - switch retaining (Replaces 195-525)

1шт.

7

A39888

NUT

- spring (3/8" -32)

1шт.

8

A160501

SPRING

- selector knob

1шт.

9

A160502

ELECTRICAL WIRE

WIRE - stop

1шт.

10

A162250

KNOB

- stop wire (Replaces A160531)

1шт.

11

178-850

SET SCREW,Hex Soc, #6-32 x 1/4"

SCREW - #6-32 x 1/4" hex socket (Replaces 176-409)

2шт.

12

A162852

ELEC CONNECTOR

MODULE - control (Replaces A160049)

1шт.

13

182-551

SCREW

- #8-32 x 5/8" pan head

5шт.

14

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

4шт.

15

129-16

NUT,#8-32

5шт.

16

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- #6-32 x 1/2" pan head

4шт.

17

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

4шт.

18

129-15

NUT,#6-32

4шт.

19

A160043

HARNESS

- wire, control box to control valve

1шт.

129-16

NUT,#8-32

(Harness to valve) (Not shown) #8-32

3шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - rear steer control (See Figure 5-148)

1шт.

21

A160042

HARNESS

- wire, rear, Serial Range: sensor-box

1шт.

22

A160041

HARNESS

- wire front, Serial Range: sensor-box

1шт.

23

A161254

SLEEVE

- shrink, harness to sensor lugs (Set of 3)

2шт.

Use 345-92 silicone protector.

1шт.

24

182-583

SCREW,Slotted Pan Hd, #6-32 x 3/16"

- #6-32 x 2/16" brass pan head (harness terminals)

6шт.

25

129-15

NUT,#6-32

6шт.

26

A149688

CONDUIT

- rear wire harness

1шт.

27

A149685

CONDUIT

- front wire harness

1шт.

28

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

CONNECTOR - straight, 3/4" PT x 3/4" -16

2шт.

29

A149530

FITTING

ELBOW - conduit to axle trunnion

2шт.

30

A149605

CONNECTOR, ELEC

CONNECTOR - straight, 3/4" PT x 5/8" -11

2шт.

32

A161375

SLEEVE

- shrink, harness to conduit (Set of 2)

1шт.

33

A149695

TRANSMITTER

SENSOR - rear axle LH trunnion

1шт.

33

A185742R

REMAN-SENSOR

4490 CASE TRACTOR, SENSOR, rear axle LH trunnion (1/79-12/83), Reman for New PN A149695

1шт.

33

A185742C

CORE-SENSOR

Return Number

1шт.

34

A149694

TRANSMITTER

SENSOR - front axle LH trunnion

1шт.

34

A185741R

REMAN-SENSOR

4490 CASE TRACTOR, SENSOR, front axle LH trunnion (1/79-12/83), Reman for New PN A149694

1шт.

34

A185741C

CORE-SENSOR

Return Number

1шт.

35

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

36

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.1 x 25.4 x 1.9 mm)

4шт.

37

A160466

SQUARE BOLT,1/4" - 20, SST

- set, Serial Range: sensor-trunnion

2шт.

38

129-141

JAM NUT,Jam, 1/4"-20, G5

2шт.

39

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- 2 ID x 1/8" width (50.8 ID x 3.17 mm width)

2шт.

40

A27886

BRACKET

- front wire conduit to frame (If equipped)

1шт.

41

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(If equipped) Hex, 3/8"-16 x 1 1/2", G5

1шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (If equipped) 3/8"

1шт.

43

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (If equipped) 3/8"-16, G5

1шт.

45

A149744

CLAMP

- rear wire conduit

1шт.

46

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, wire harness

1шт.

47

REF

INSTRUCTION

INDICATOR - turn, rear wheel (See Figure 4-082)

1шт.

48

A47749

SWITCH

ROTARY SWITCH - replacement kit

1шт.

49

321-5319

DECAL

- selector (Used with A160531 knob)

1шт.

50

A164655

HARNESS

ASSEMBLY - rear steering system in line fuse (Prior to P.I.N. 8859751)

1шт.

51

223-40

FUSE,3/4 Amp, Type 3AG

- AGC 3/4 AMP

1шт.

52

A164700

DECAL

- rear steering fuse (IMPORTANT)(Prior to P.I.N. 8859751)

1шт.
