Запчасти Case IH 4490 (5-122) - ADJUSTABLE STEERING COLUMN, STANDARD OR DELUXE STEERING WHEEL (05) - STEERING

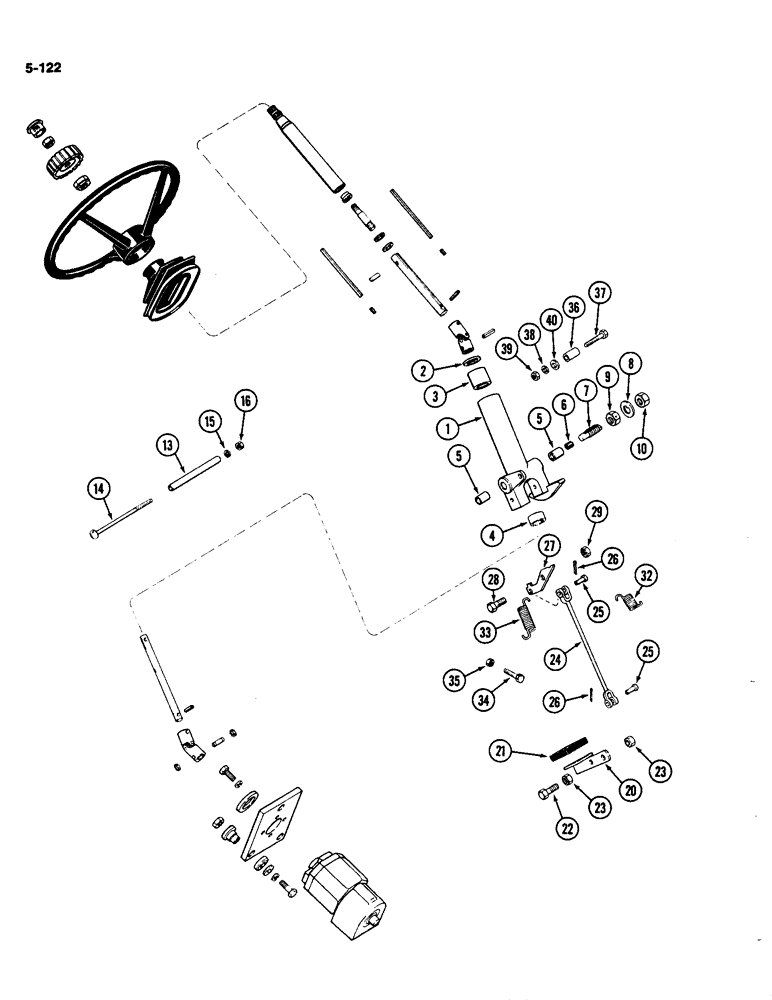

Схема запчастей Case IH 4490 - (5-122) - ADJUSTABLE STEERING COLUMN, STANDARD OR DELUXE STEERING WHEEL (05) - STEERING
29
24
25
21
23
10
37
1
14
39
4
32
26
33
5
6
40
16
26
36
34
15
2
9
7
13
38
25
22
28
8
35
23
27
20
5

Артикул

Название

Примечание

Количество

1

A76204

SHAFT ASSY.

COLUMN ASSEMBLY - adjustable, Includes: Ref. 2 - 5

1шт.

2

A61736

WIPER SEAL

- wiper

1шт.

3

A76206

BUSHING

- upper, 1-3/8" ID x 1-3/4" OD (34.9 x 44.4 mm)

1шт.

4

A76207

BUSHING

- lower, 1-1/4" ID x 1-3/4" OD (31.7 x 44.4 mm)

1шт.

5

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- pivot

2шт.

6

A59842

BUMPER

SNUBBER - pivot, column

2шт.

7

A137354

STUD

- pivot, adjustable column

2шт.

8

A137355

WASHER

- tongued, column pivot

2шт.

9

131-1113

JAM NUT,Jam, 5/8"-11

NUT - lock, NC hex (inside)

2шт.

10

425-1410

JAM NUT,Jam, 5/8"-11, G5

- jam, 5/8" NC hex (outside)

2шт.

13

A76203

BUSHING

SPACER - column to support plates

2шт.

14

115-107

BOLT,Hex, 5/16" - 18 x 7", Gr 5

- 5/16 x 7" NC round head (Grade 5)

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

2шт.

20

A64127

PEDAL

- release and lock, column tilt

1шт.

21

A75351

SKID/SHOE

PAD - foot pedal

1шт.

22

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

24

A64126

ROD

- pedal to tilt latch

1шт.

25

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

28

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

27

A64338

LATCH

- tilt, steering column

1шт.

28

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

29

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

32

A64125

SPRING

- tilt latch, 1-13/16" (46.04 mm) overall length

1шт.

33

A63690

SPRING

- tilt return, 3-5/32" (80.17 mm) overall length

1шт.

34

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Stop Hex, 3/8"-16 x 1 1/2", G5

1шт.

35

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

36

G49623

SUPPORT TUBE,0.625" OD x 1.255" L

SPACER - column tilt stop

1шт.

37

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

38

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

39

9635082

NUT,5/16" - 18, Gr 5

1шт.

40

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (9.5 x 22.2 x 1.9 mm)

1шт.

Выбрано товаров: 33
