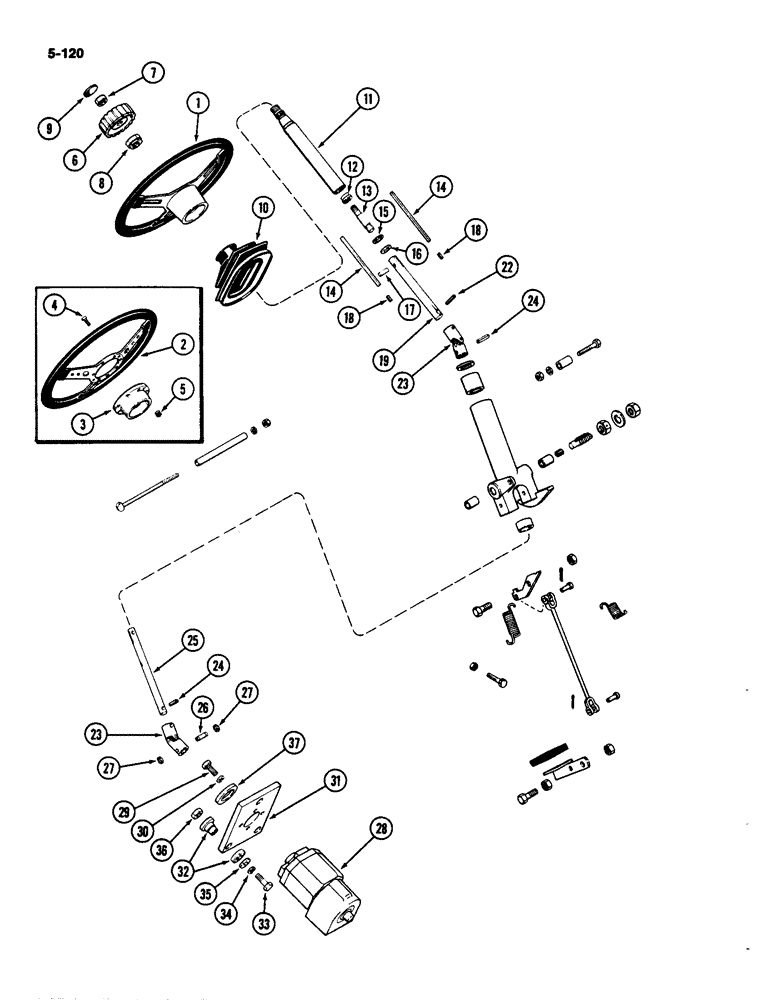

Запчасти Case IH 4490 (5-120) - DELUXE STEERING WHEEL, SHAFT AND PUMP (05) - STEERING

1

A164267

HUB

WHEEL - steering (Replaces A161183 and A161182)

1шт.

2

A161183

WHEEL

- steering, leather covered (Order A164267)

1шт.

3

A161182

HUB

- wheel

1шт.

4

171-80

SCREW - #8-32 x 3/4" socket head (Obtain Locally)

9шт.

5

129-653

NUT,#10-32

- knurled, #8-32

9шт.

6

A141827

CAP

- center, steering wheel

1шт.

7

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

8

A14567

JAM NUT

-, Serial Range: wheel-shaft

1шт.

9

A161347

INSERT

- cap, solid state selective steering

1шт.

10

A61910

BOOT

- steering shaft

1шт.

11

A63681

SHAFT

- outer steering

1шт.

12

A63684

LOCK NUT

- lock, LH thread (1/2" NC)

1шт.

13

A63683

SHAFT

- lock, telescoping shaft

1шт.

14

A63686

KEY

- lock, steering shaft

2шт.

15

A63688

FRICTION WASHER

- retainer, friction lock

1шт.

16

A58116

RING

- snap

1шт.

17

A63685

PIN

- stop

1шт.

18

A63687

LOCK

- friction

2шт.

19

A162020

SHAFT

- inner steering

1шт.

22

A139174

PIN

- inner shaft to joint (3/8 x 1-3/16")

1шт.

23

A63689

JOINT

- universal, steering shaft

2шт.

24

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

2шт.

25

A150368

SHAFT

- upper shaft to valve assembly

1шт.

26

A64000

PIN,9.42mm OD x 38.1mm L

- valve shaft (3/8 x 1-1/2" with grooves)

1шт.

27

A164905

SNAP RING,#37, Ext

Ring, Snap, , steering valve pin (replaces A27795) #37, Ext

2шт.

28

REF

INSTRUCTION

VALVE AND PUMP ASSEMBLY - steering (See Figure 5-136 and 5-138)

1шт.

29

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

31

A145914

PLATE

- mounting, valve and pump

1шт.

32

A141515

ISOLATOR

MOUNT - isolator

3шт.

33

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

35

195-524

WASHER,5/16"

- 3/8 x 1-1/8 x 1/16" (9.5 x 28.6 x 1.6 mm)

3шт.

36

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

37

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

- firewall

1шт.
