Запчасти Case IH 4490 (5-118) - STANDARD STEERING WHEEL, SHAFT AND PUMP (05) - STEERING

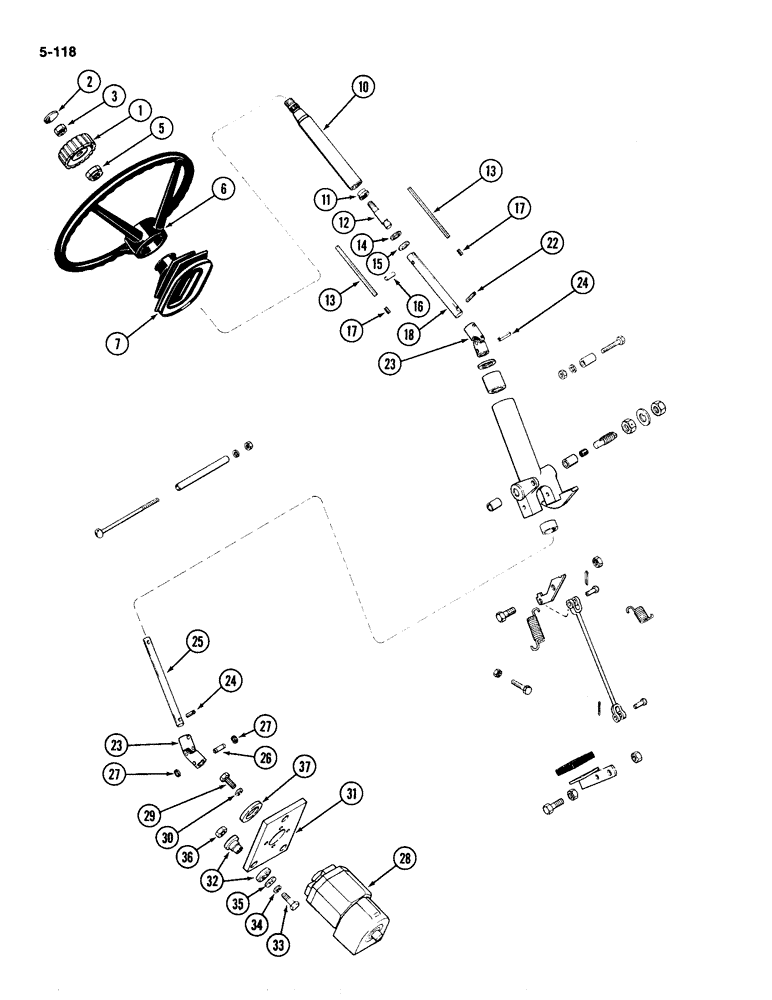

Схема запчастей Case IH 4490 - (5-118) - STANDARD STEERING WHEEL, SHAFT AND PUMP (05) - STEERING
12
37
16
23
7
3
30
33
35
13
22
27
11
2
5
26
17
10
29
15
18
14
24
13
1
23
36
32
31
24
6
28
27
25
17
34

Артикул

Название

Примечание

Количество

1

A141827

CAP

- steering wheel

1шт.

2

A161347

INSERT

- cap, solid state selective steering

1шт.

3

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" hex

1шт.

5

A14567

JAM NUT

- wheel to shaft (13/16" NF hex)

1шт.

6

NSS

NOT SOLD SEPARAT

WHEEL - steering (See Page 5-121)

1шт.

7

A61910

BOOT

- steering shaft

1шт.

10

A63681

SHAFT

- outer steering

1шт.

11

A63684

LOCK NUT

- lock, LH thread (1/2" NC)

1шт.

12

A63683

SHAFT

- lock, telescoping shaft

1шт.

13

A63686

KEY

- lock, steering shaft

2шт.

14

A63688

FRICTION WASHER

- retainer, friction lock

1шт.

15

A58116

RING

- snap

1шт.

16

A63685

PIN

- stop

1шт.

17

A63687

LOCK

- friction

2шт.

18

A162020

SHAFT

- inner steering

1шт.

22

A139174

PIN

- inner shaft to joint (3/8 x 1-3/16")

1шт.

23

A63689

JOINT

- universal, steering shaft

2шт.

24

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

2шт.

25

A150368

SHAFT

- upper shaft to valve assembly

1шт.

26

A64000

PIN,9.42mm OD x 38.1mm L

- valve shaft (3/8 x 1-1/2" with grooves)

1шт.

27

A164905

SNAP RING,#37, Ext

Ring, Snap, , steering valve pin (replaces A27795) #37, Ext

2шт.

28

REF

INSTRUCTION

VALVE AND PUMP ASSEMBLY - steering (See Figure 5-136)

1шт.

29

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

31

A145914

PLATE

- mounting, valve and pump

1шт.

32

A141515

ISOLATOR

MOUNT - isolator

3шт.

33

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

35

195-524

WASHER,5/16"

- 3/8 x 1-1/8 x 1/16" (9.5 x 28.6 x 1.6 mm)

3шт.

36

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

37

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

- firewall

1шт.

Выбрано товаров: 31
