Запчасти Case IH 4490 (4-116) - ELECTRIC HITCH WIRING, P.I.N. 8860450 AND AFTER (04) - ELECTRICAL SYSTEMS

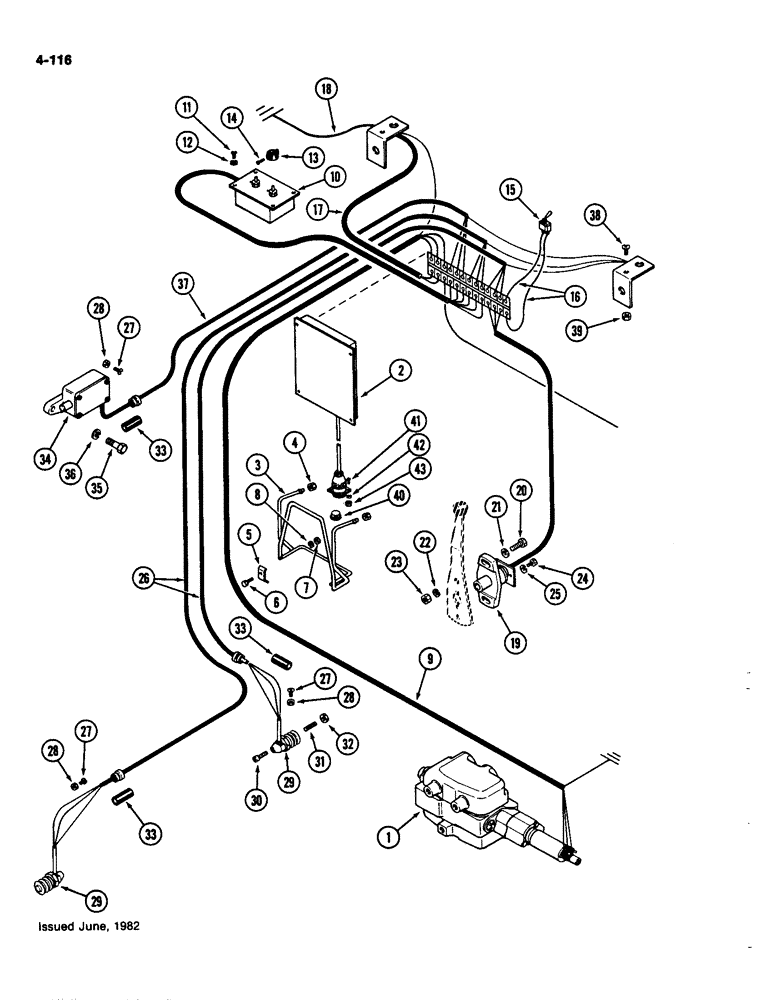

Схема запчастей Case IH 4490 - (4-116) - ELECTRIC HITCH WIRING, P.I.N. 8860450 AND AFTER (04) - ELECTRICAL SYSTEMS
15
33
25
32
21
30
19
7
16
13
40
24
9
27
5
4
12
2
11
8
17
35
34
33
18
10
33
37
28
14
22
43
20
6
23
31
27
29
39
29
3
42
27
41
38
28
36
28
1
26

Артикул

Название

Примечание

Количество

1

A161686

VALVE

ASSEMBLY - hitch, control (See Figure 8-318)

1шт.

2

A161940

BOX

- hitch control (includes the box that all the small wires lead to (located to the left of #16--does not have a number on it). This box is nss.)

1шт.

3

A162600

BRACKET

- control box

1шт.

4

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - 7/16" self threading

2шт.

5

A60224

CLAMP

-, Serial Range: bracket-console

1шт.

6

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

9

A161981

HARNESS

ASSEMBLY - wire, hitch valve

1шт.

10

A161933

BOX

CONTROL BOX - sensitivity, hitch

1шт.

11

182-545

SCREW,Slotted Pan Hd, #8-32 x 5/16"

- #8 x 5/16" pan head

1шт.

12

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

13

A161989

KNOB

- control box, sensing and draft

2шт.

14

176-408

SCREW - set, #6-32 x 3/16" slotted

2шт.

15

A162764

SWITCH

- reset

1шт.

16

A165198

ELECTRICAL WIRE

WIRE - reset switch

2шт.

17

A162427

CABLE PULLING GRIP

WIRE - ground, hitch valve

1шт.

18

A163035

ELECTRICAL WIRE

WIRE - hitch ground, Serial Range: console-frame

1шт.

19

A162359

TRANSMITTER

SENSOR - hitch lever

1шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

21

195-104

WASHER,3/8"

- flat, 3/8"

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

26

A161975

HARNESS

ASSEMBLY - wire, draft arm

2шт.

27

182-583

SCREW,Slotted Pan Hd, #6-32 x 3/16"

- #6-32 x 1/4" pan head machine (brass)

9шт.

28

129-15

NUT,#6-32

9шт.

29

A165422

TRANSMITTER

SENSOR - draft arm (Replaces A161960)

2шт.

30

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

SCREW - 5/16 x 1-1/4" hex socket head

2шт.

31

A164769

SET SCREW,Hex, 3/8" - 24 x 1 1/2"

- 3/8 x 1-1/2" special (sensor adjuster)(Replaces 178-887)

2шт.

32

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam, 3/8" NC hex

2шт.

33

A163365

SLEEVE

- shrink, sensor to harness lugs (Order A161254)

9шт.

A161254

SLEEVE

- shrink, (packet of 3)

1шт.

34

A162103

TRANSMITTER

SENSOR - rockshaft

1шт.

35

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

36

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

37

A161974

HARNESS

ASSEMBLY - wire, rockshaft sensor

1шт.

38

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- #8 x 5/8" pan head machine (ground wire to console)

2шт.

39

129-16

NUT,#8-32

2шт.

40

353-409

PLUG,Dome, .812" hole, Nylon

- protective (Heyco Type)

1шт.

41

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- #6-32 x 5/8" Phillips head

3шт.

42

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

43

129-15

NUT,#6-32

3шт.

Выбрано товаров: 44
