Запчасти Case IH 4490 (4-110) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

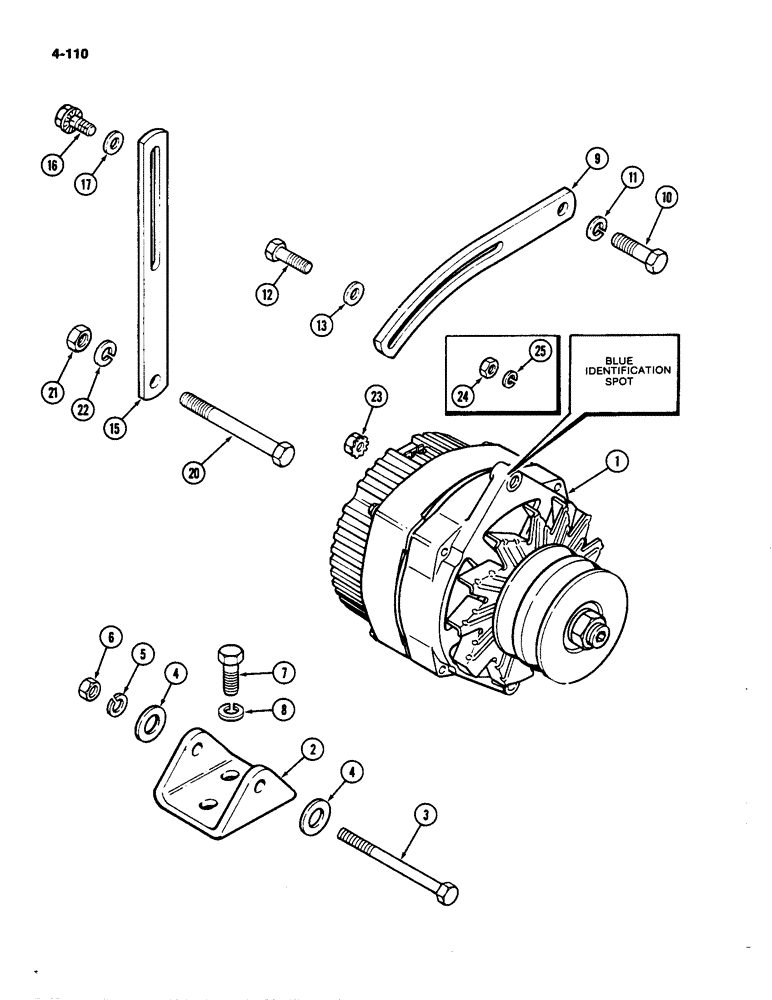

ALTERNATOR ASSEMBLY - engine (See Figure 4-112 and 4-114)

1шт.

2

A139871

BRACKET

- mounting

1шт.

3

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3" NC hex (Grade 5) (replaces 113-241)

1шт.

4

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (9.5 x 22.2 x 1.9 mm)

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

A34705

ADJUSTER

STRAP - adjusting, alternator belt

1шт.

10

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

12

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- 8 x 1.25 x 25 mm hex

1шт.

Metric alternator has blue identification spot on upper mounting leg.

1шт.

13

95-6

WASHER,3/8"

- 7/16 x 1 x 7/64" (11.1 x 25.4 x 2.8 mm)

1шт.

15

A59098

STRAP

- support, alternator rear

1шт.

16

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

16

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- 8 x 1.25 x 25 mm hex

1шт.

Metric alternator has blue identification spot on upper mounting leg.

1шт.

17

A139874

SPACER

- support

1шт.

20

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

(Timing gear cover bolt) Hex, 3/8"-16 x 3 3/4", G5

1шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

22

92-6

LOCK WASHER,3/8"

1шт.

23

193-1008

NUT,Keps, w/LW,#12-24

- #12-24 hex Keps (battery terminal)

1шт.

24

825-1106

NUT,Hex, M6, Cl 8

- 6 x 1 mm hex (Battery terminal)

1шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (with metric nut) 1/4"

1шт.
