Запчасти Case IH 4490 (4-109C) - A162469 STARTER ASSEMBLY, P.I.N. 8860931 AND AFTER (04) - ELECTRICAL SYSTEMS

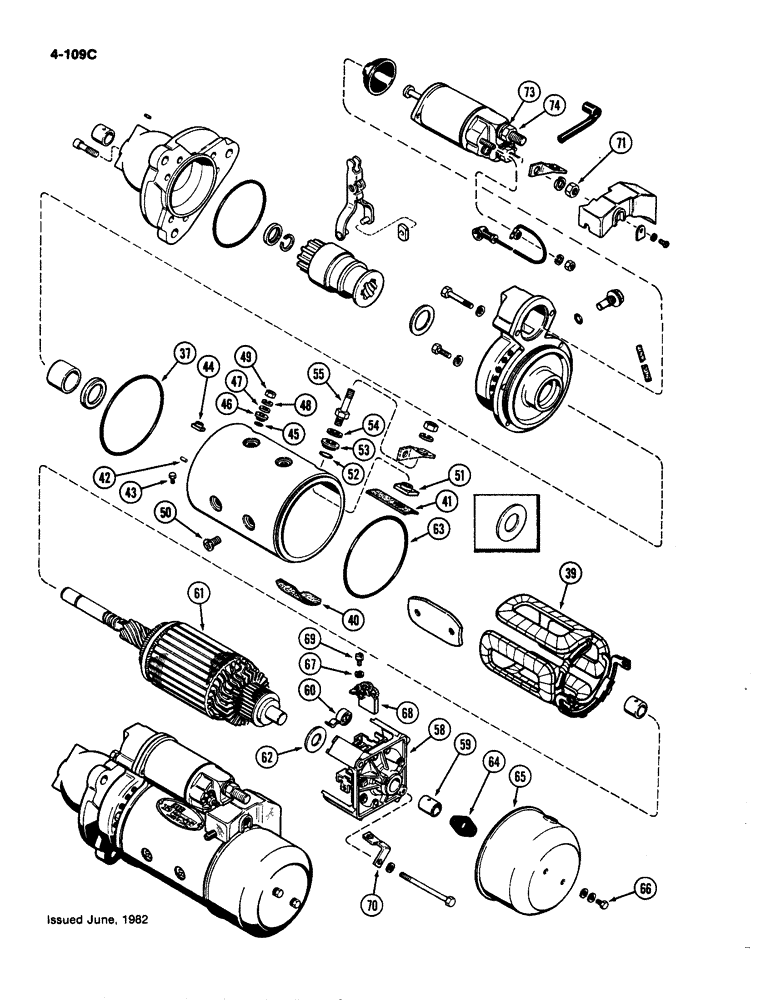

Схема запчастей Case IH 4490 - (4-109C) - A162469 STARTER ASSEMBLY, P.I.N. 8860931 AND AFTER (04) - ELECTRICAL SYSTEMS
74
48
45
66
67
60
52
55
41
63
51
46
54
70
69
43
49
37
39
42
65
68
44
71
61
40
53
47
59
50
58
62
64
73

Артикул

Название

Примечание

Количество

A162469

STARTING MOTOR

STARTER ASSEMBLY - continued from Page 4-109A, Includes: Ref. 37 - 74 and 2 - 33 on Figure 4-109A

1шт.

37

A47820

O-RING

- yoke to center bearing

1шт.

A47821

YOKE

ASSEMBLY - field coil, Includes: Ref. 39 - 55

1шт.

39

A47822

COIL

ASSEMBLY - field

1шт.

40

A47833

INSULATOR

- field

1шт.

41

A47832

INSULATOR

- field

1шт.

42

A47824

PIN

- yoke level

1шт.

43

814-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

- coil to frame, M5 x.8 x 10 hex

1шт.

44

A47825

BUSHING

- terminal insulating, inner

1шт.

45

A47826

RING

O-RING - terminal

1шт.

46

A47827

BUSHING

- terminal insulating, outer

1шт.

47

195-513

WASHER,#10

- 7/32 x 1/2 x 3/64" (5.56 x 12.7 x 1.40 mm)

1шт.

48

892-1105

LOCK WASHER,M5

WASHER - lock M5

2шт.

49

825-1105

NUT,M5, Cl 8

- M5 hex

1шт.

50

A47823

SCREW,M10 x 1.5 x 1.5mm

- coil, M10 x 1.5 x 20 flat head

8шт.

51

A47829

BUSHING

- terminal insulating, inner

1шт.

52

A47830

RING

O-RING - terminal

1шт.

53

A47831

BUSHING

- terminal insulating, outer

1шт.

54

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (9.52 x 22.22 x 1.98 mm)

1шт.

55

A47828

BOLT

- terminal

1шт.

58

A47814

FRAME

ASSEMBLY - commutator end, Includes: Ref. 59 and 60

1шт.

59

A47784

BUSHING

- commutator end frame

1шт.

60

A47815

SPRING

- brush

4шт.

61

A47812

ARMATURE

ASSEMBLY - starter

1шт.

62

A47813

WASHER

- armature end

1шт.

63

39738

O-RING,4.609" ID x 0.139" Width

- end cover

1шт.

64

A47835

GASKET

- end cover

1шт.

65

A47834

COVER

- starter end

1шт.

66

814-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

- cover retaining, M5 x .8 x 10 hex

2шт.

67

892-1006

LOCK WASHER,M6

WASHER - lock M6

2шт.

68

A47817

BRUSH, COMMUTATOR

BRUSH - starter

4шт.

69

A47816

SCREW,Pan Cross, M5 x 0.8 x 12mm

- brush retaining, M5 x 0.8 x 12

4шт.

70

A47818

CONNECTOR, ELEC

CONNECTOR - brush

2шт.

71

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

73

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

74

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

Выбрано товаров: 36
