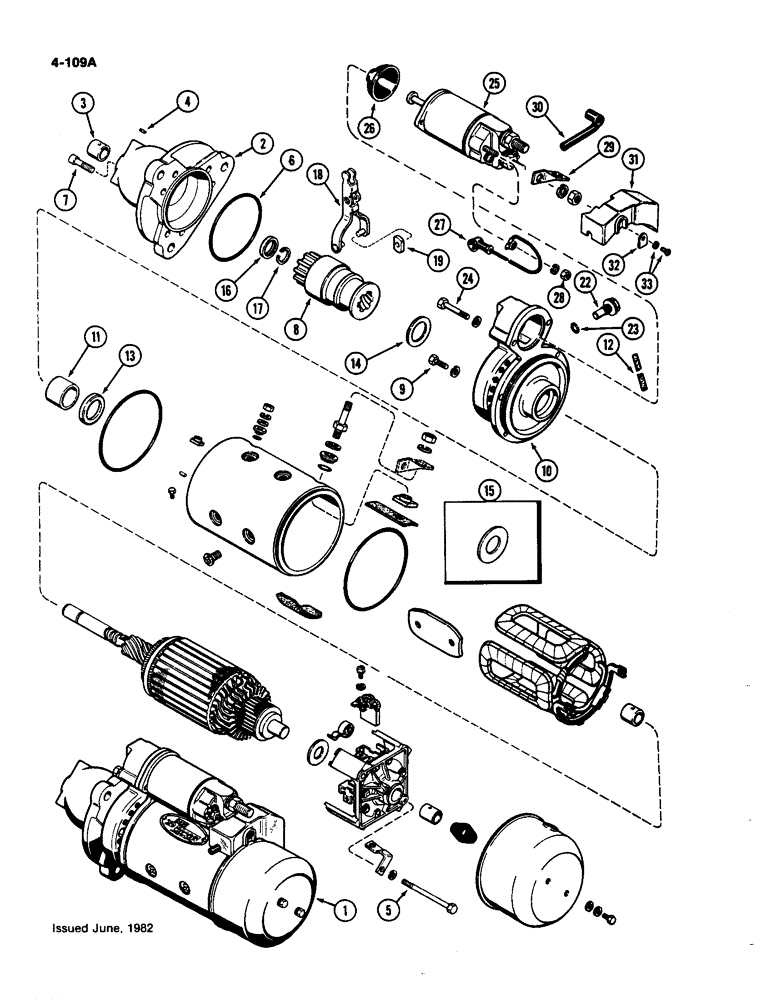

Запчасти Case IH 4490 (4-109A) - A162469 STARTER ASSEMBLY, P.I.N. 8860931 AND AFTER (04) - ELECTRICAL SYSTEMS

1

A162469

STARTING MOTOR

STARTER ASSEMBLY - Nippondenso no. 028000-7430, Includes: Ref. 2 - 33 and 37 - 74 on Figure 4-109C

1шт.

2

A47783

HOUSING

ASSEMBLY - drive, Includes: Ref. 3 and 4

1шт.

3

A47784

BUSHING

- drive housing

1шт.

4

A47785

PLUG

- housing cover

1шт.

5

A47819

BOLT

- through, M7 x 1 x 86 hex

2шт.

6

A47786

SEAL

PACKING - housing to center bearing

1шт.

7

A47787

BOLT

- housing to center bearing, M8 x 1.25 x 31 special

6шт.

8

A47788

CLUTCH

ASSEMBLY - drive

1шт.

9

A47809

BOLT

- bearing housing to frame, M7 x 1 x 20

5шт.

10

A47805

HOUSING

- center bearing, Includes: Ref. 11 - 13

1шт.

11

A47806

BUSHING

- center bearing

1шт.

12

A47807

FELT

- bearing oil

1шт.

13

A47808

OIL SEAL

- oil

1шт.

14

A47811

WASHER

- oil seal backup

1шт.

15

A47810

WASHER

- brake

1шт.

16

A47789

COLLAR

- pinion stop

1шт.

17

A47790

RING, SNAP

RING - collar to shaft retaining snap

1шт.

18

A47791

LEVER

ASSEMBLY - starter drive, Includes: Ref. 19

1шт.

19

A47792

RING

- drive lever

2шт.

22

A47793

BOLT

- pivot

1шт.

23

NLS

NO LONGER SERVICED

O-RING - drive lever pivot bolt

1шт.

24

A47795

BOLT

- switch retaining, M6 x 1 x 42 hex

2шт.

25

A47796

SWITCH

ASSEMBLY - magnetic, Includes: Ref. 26 - 28

1шт.

A187795R

REMAN-SOLENOID

4490 P.I.N. 8860931 AND AFTER (1/79-12/83), Reman For New P/N A47796

1шт.

A187795C

CORE-SOLENOID

Return Number

1шт.

26

A47797

COVER

- magnetic switch

1шт.

27

A47798

ELECTRICAL WIRE

WIRE - lead

1шт.

28

A47799

NUT

- #10-32 hex special

1шт.

29

A47800

CONNECTOR, ELEC

CONNECTOR - terminal

1шт.

30

A47801

TUBE

- switch drain

1шт.

31

A47802

COVER

- terminal

1шт.

32

A47803

PLATE

- terminal cover

1шт.

33

A47804

SCREW,M4 x 0.7 x 0.7mm

- plate retaining, M4 x .7 x 9

1шт.
