Запчасти Case IH 4490 (4-108) - STARTER ASSEMBLY, PRIOR TO P.I.N. 8860931 (04) - ELECTRICAL SYSTEMS

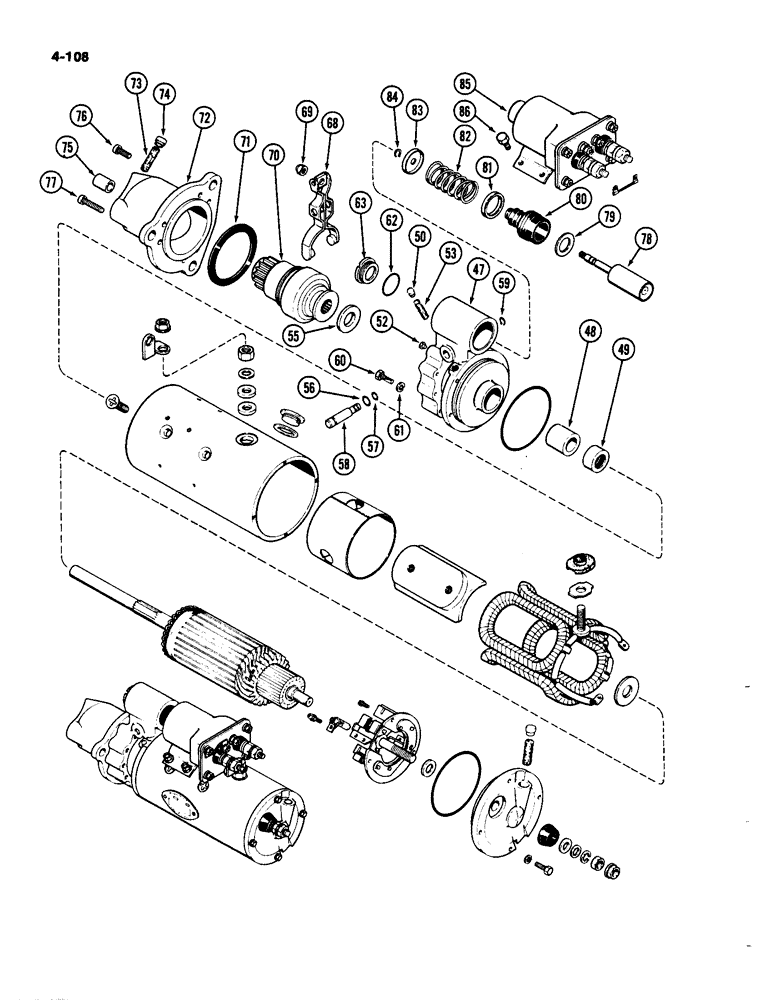

Схема запчастей Case IH 4490 - (4-108) - STARTER ASSEMBLY, PRIOR TO P.I.N. 8860931 (04) - ELECTRICAL SYSTEMS
48
76
52
85
82
73
80
53
63
47
58
56
62
74
84
78
72
77
70
55
57
49
75
81
79
50
60
71
59
69
61
86
83
68

Артикул

Название

Примечание

Количество

A162578

ENGINE

STARTER ASSEMBLY - (Continued from Figure 4-106), Includes: Ref. 47 - 86 and 2 - 43 on Figure 4-106

1шт.

47

A47935

HOUSING

ASSEMBLY - shift lever, Includes: Ref. 48 - 55

1шт.

48

A47261

BUSHING

- shift lever housing (Replaces A47842)

1шт.

49

R21582

OIL SEAL

- oil

1шт.

50

A47889

PLUG

- oil reservoir

1шт.

52

A47897

PLUG

- housing

1шт.

53

A47888

WICK

- oil

1шт.

55

R15145

DISC

WASHER - brake

1шт.

56

A47259

O-RING,0.244" ID x 0.391" OD

- stud

1шт.

57

A47258

O-RING,0.369" ID x 0.515" OD

- stud

1шт.

58

A42199

PIN

STUD - shift lever pivot

1шт.

59

G46146

SNAP RING,#37, Ext

Ring, Snap, , stud retaining #37, Ext

1шт.

60

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

5шт.

61

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

62

A41924

GASKET

- plug

1шт.

63

R21587

PLUG

- shift lever housing

1шт.

68

D32547

LEVER

ASSEMBLY - shifter

1шт.

69

131-31

LOCK NUT,5/16"-24, G8

NUT - lock, 5/16" NF hex

1шт.

70

A47523

DRIVE

ASSEMBLY - starter clutch

1шт.

71

R21562

GASKET

- drive and housing

1шт.

72

A47898

HOUSING

ASSEMBLY - drive end

1шт.

73

A47888

WICK

- oil, Includes: Ref. 74 and 75

1шт.

74

A47889

PLUG

- 1/8" PT slotted headless

1шт.

75

A47257

BUSHING

- drive end

1шт.

76

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive and housing (5/16 x 23/64" NC special socket)

1шт.

77

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - drive and housing (5/16 x 1-1/2" NC special socket)

5шт.

78

A42309

PLUNGER

- solenoid core

1шт.

79

A41922

WASHER

SEAT - boot

1шт.

80

A42308

BOOT

COVER - plunger

1шт.

81

A43380

BACK-UP RING

SEAT - spring, solenoid end

1шт.

82

A41242

SPRING

- plunger return

1шт.

83

A43419

SEAT

- spring, lever end

1шт.

84

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger retainer #37, Ext

1шт.

85

A47931

SOLENOID

ASSEMBLY - starter

1шт.

86

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid mounting

4шт.

Выбрано товаров: 35
