Запчасти Case IH 4490 (4-102) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

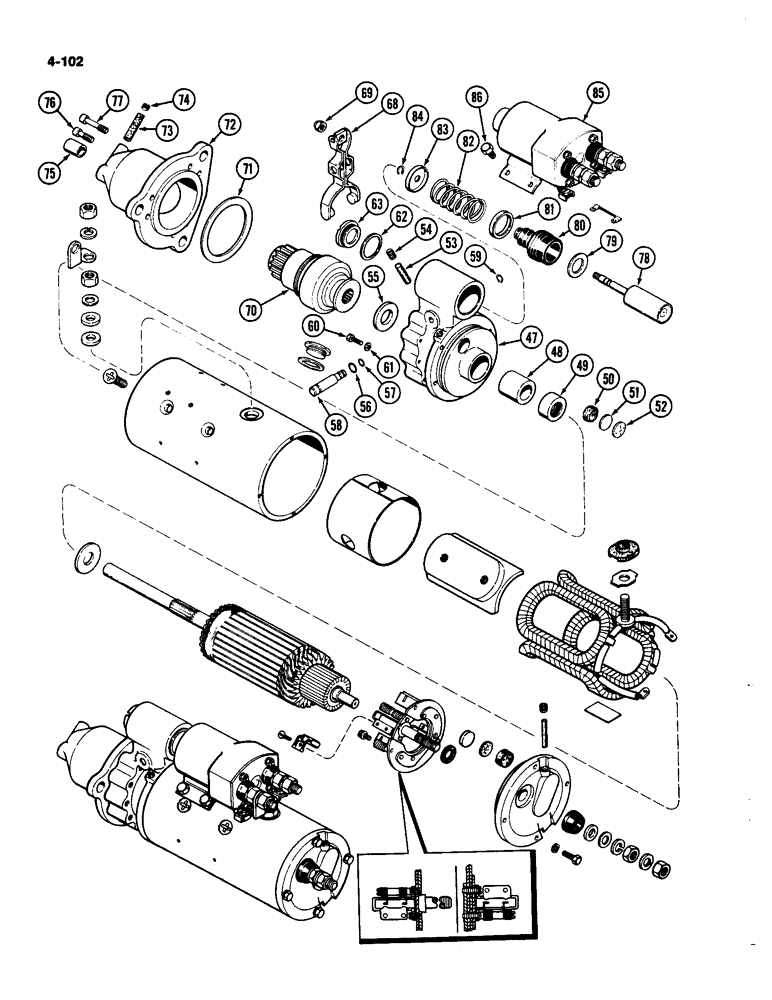

Схема запчастей Case IH 4490 - (4-102) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS
61
52
59
51
73
56
62
53
84
83
50
57
49
54
58
69
77
72
86
79
80
74
70
48
76
63
78
68
47
75
71
55
85
82
60
81

Артикул

Название

Примечание

Количество

A75864

STARTING MOTOR

STARTER ASSEMBLY - (Continued from Figure 4-100), Includes: Ref. 47 - 86 and 2 - 42 on Figure 4-100

1шт.

47

A43367

HOUSING

ASSEMBLY - shift lever, Includes: Ref. 48 - 55

1шт.

48

A47848

BUSHING

- shift lever housing (Replaces R21580)

1шт.

49

R21582

OIL SEAL

- oil

1шт.

50

A41923

PLUG

- oil reservoir

1шт.

51

A41973

GASKET

- plug

1шт.

52

41-57

PLUG,Exp, 1 1/32"

- expansion, 1-1/32" diameter (26.2 mm)

1шт.

53

R15023

WICK

- oil

1шт.

54

221-1041

PLUG

- 1/8" PT slotted headless

1шт.

55

R15145

DISC

WASHER - brake

1шт.

56

A47259

O-RING,0.244" ID x 0.391" OD

- stud, (Replaces R21574)

1шт.

57

A47258

O-RING,0.369" ID x 0.515" OD

- stud

1шт.

58

A42199

PIN

STUD - shift lever pivot

1шт.

59

G46146

SNAP RING,#37, Ext

Ring, Snap, , stud retaining #37, Ext

1шт.

60

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

5шт.

61

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

62

A41924

GASKET

- plug

1шт.

63

R21587

PLUG

- shift lever housing

1шт.

68

D32547

LEVER

ASSEMBLY - shifter

1шт.

69

131-31

LOCK NUT,5/16"-24, G8

NUT - lock, 5/16" NF hex

1шт.

70

A47073

DRIVE

ASSEMBLY - Bendix

1шт.

71

R21562

GASKET

- drive and housing

1шт.

72

A44168

HOUSING

ASSEMBLY - drive end, Includes: Ref. 73 - 75

1шт.

73

R15023

WICK

- oil

1шт.

74

221-1041

PLUG

- 1/8" PT slotted headless

1шт.

75

A47257

BUSHING

- drive end (Replaces A40893)

1шт.

76

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive end housing (5/16 x 23/64" NC special socket)

1шт.

77

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - drive and housing (5/16 x 1-1/2" NC special socket)

5шт.

78

A42309

PLUNGER

- solenoid core

1шт.

79

A41922

WASHER

SEAT - boot

1шт.

80

A42308

BOOT

COVER - plunger

1шт.

81

A43380

BACK-UP RING

SEAT - spring, solenoid end

1шт.

82

A41242

SPRING

- plunger return

1шт.

83

A43419

SEAT

- spring, lever end

1шт.

84

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger retaining #37, Ext

1шт.

85

A47931

SOLENOID

ASSEMBLY - starter (See Figure 4-104)(Replaces A25430)

1шт.

86

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid mounting

4шт.

Выбрано товаров: 37
