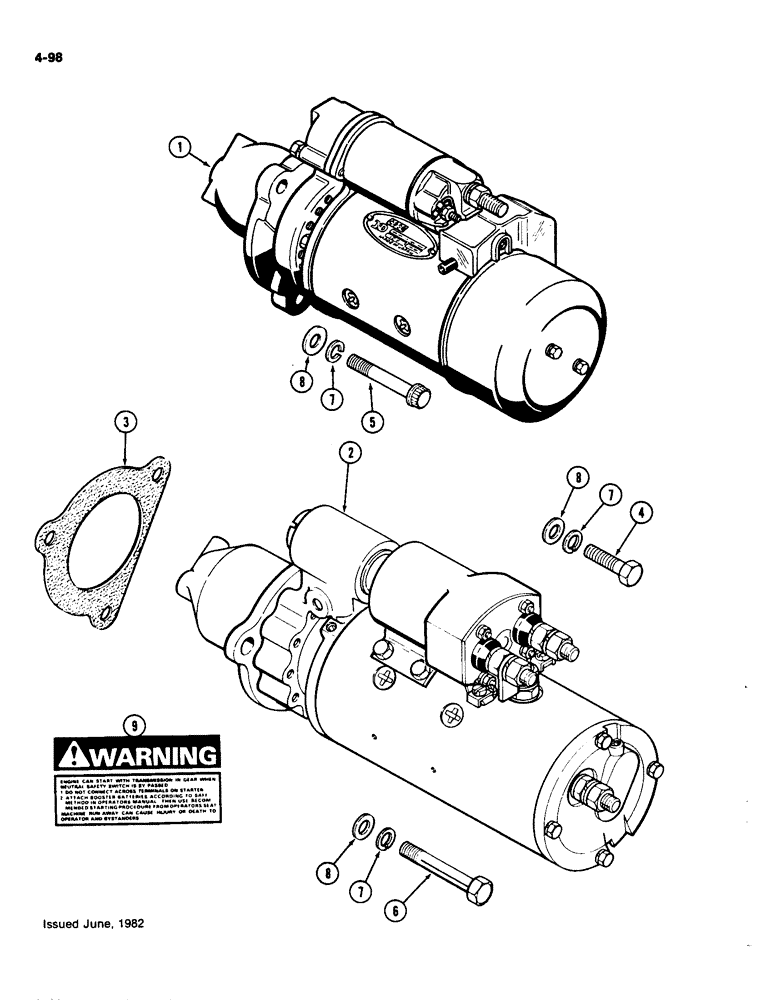

Запчасти Case IH 4490 (4-098) - STARTER MOUNTING (04) - ELECTRICAL SYSTEMS

1

A162469

STARTING MOTOR

STARTER ASSEMBLY - engine (P.I.N. 8860931 and after) (See Figure 4-109A and 4-109C)

1шт.

2

A162578

ENGINE

STARTER ASSEMBLY - engine (Prior to P.I.N. 8860931) (See Figure 4-106)(Replaces A75864)

1шт.

2

A75864

STARTING MOTOR

STARTER ASSEMBLY - engine (Order A162578)(See Figure 4-100)

1шт.

87297380

REMAN-STARTER

Remanufactured Starter; For N.A. only

1шт.

87297381

CORE-STARTER

Return number - For N.A. only

1шт.

3

A27933

GASKET

GASKET - mounting

1шт.

4

113-2432

BOLT,Locking, 1/2" - 13 x 2", Gr 5

BOLT - lock, 1/2 x 2" NC hex (Grade 5)

2шт.

5

166-1007

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

BOLT - 1/2 x 3-1/4" NC, 12 point head (P.I.N. 8860931 and after)

1шт.

6

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

BOLT, (Prior to P.I.N. 8860931) Hex, 1/2"-13 x 3 1/4", G5

1шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

8

A75865

WASHER

WASHER - starter mounting

3шт.

9

321-3709

DECAL

DECAL - warning

1шт.
