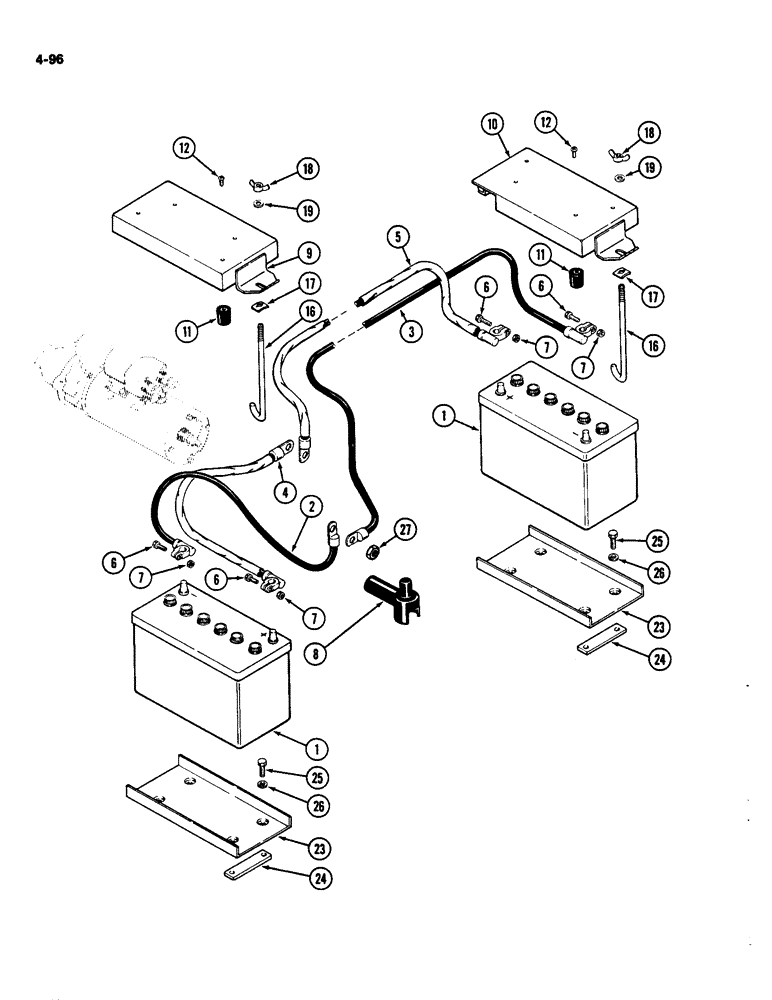

Запчасти Case IH 4490 (4-096) - BATTERIES, CABLES AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

- dry (12 volt)

2шт.

2

A165027

CABLE

ASSEMBLY - battery, negative, 18-1/2" long (469.9 mm) (P.I.N. 8860931 and after)

1шт.

2

A75818

CABLE

ASSEMBLY - RH negative, 31-1/2" (800.0 mm) (Prior to P.I.N. 8860931)

1шт.

2

A165028

CABLE

ASSEMBLY - battery, negative, 60" long (1 524 mm) (P.I.N. 8860931 and after)

1шт.

3

A75819

CABLE

ASSEMBLY - LH negative, 73" (1854.0 mm) (Prior to P.I.N. 8860931)

1шт.

4

A75820

CABLE

ASSEMBLY - RH positive, 40-1/2" (1028.7 mm)

1шт.

5

A75821

CABLE

ASSEMBLY - LH positive, 46" (1168.4 mm)

1шт.

6

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" NC square head (Grade 2)

4шт.

7

129-516

NUT

- shoulder, 5/16" NC hex

1шт.

8

A153796

BOLT

COVER - terminal, cable to starter solenoid

1шт.

9

A76440

COVER

- RH battery

1шт.

10

A76441

COVER

- LH battery

1шт.

11

A75847

FENDER

BUMPER - rubber, Serial Range: cover-battery

8шт.

12

175-454

SCREW,Phil Truss Hd, 1/4" - 20 x 3/8"

- 1/4 x 3/8" NC Phillips head

8шт.

16

A143936

BOLT,Hook, 5/16" - 18 x 10mm

BOLT - hook (5/16" NC)

4шт.

17

131-640

NUT

- speed, 5/16"

4шт.

18

G49020

NUT

- wing, 5/16" NC

4шт.

19

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.7 x 17.5 x1.6 mm)

4шт.

23

A75848

CARRIER

- RH and LH battery

2шт.

24

A75849

SPACER

- carrier, 3/8" thick (9.5 mm)

4шт.

25

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

27

131-1308

JAM NUT,Jam, 1/2"-13

NUT - jam, 1/2" NC hex self locking

1шт.
