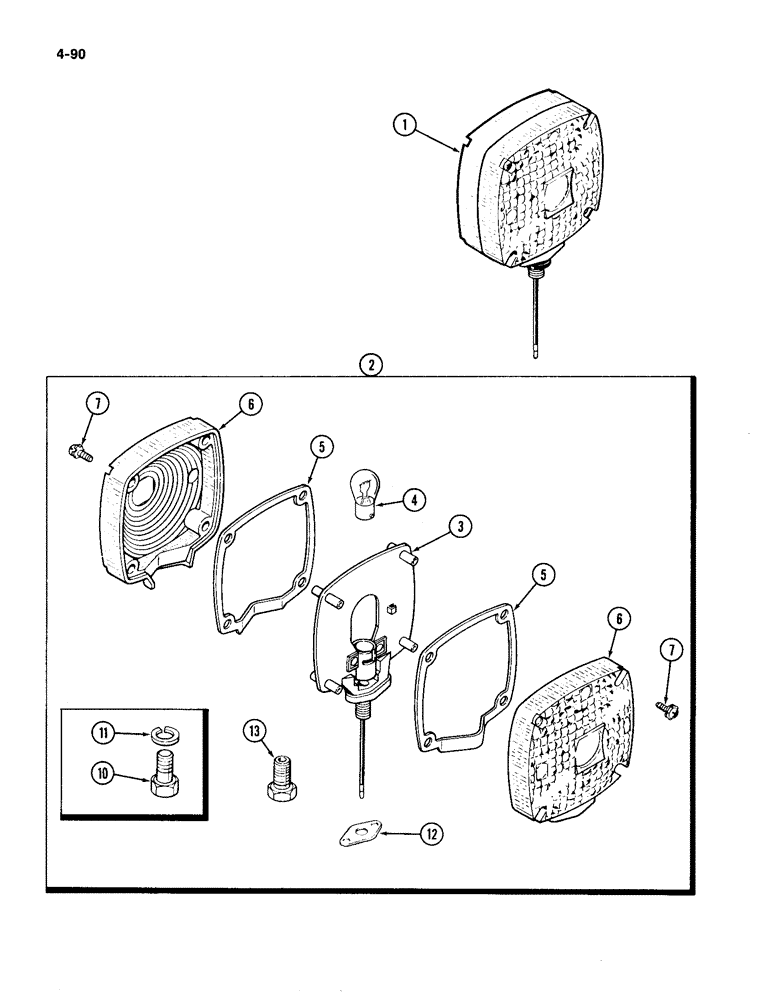

Запчасти Case IH 4490 (4-090) - FLASHER WARNING LAMP (04) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

LAMP ASSEMBLY - flasher warning (Order A44201)

2шт.

2

A44201

LIGHT ASSY.

KIT - lamp replacement, Includes: Ref. 3 - 7

2шт.

3

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A44201)

1шт.

4

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

5

A43731

GASKET

- lens

2шт.

A44202

KIT

- lens replacement, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

LENS - (Order A44202)

2шт.

7

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8-32 x 3/4" round head Phillips

8шт.

10

113-38

BOLT,Hex, 1/4" - 20 x 5/8", Gr 2

- 1/4 x 5/8" NC hex (Grade 5)

2шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

12

F63435

GASKET

- base

2шт.

13

REF

INSTRUCTION

STUD - fender mounting (Not used this unit)

2шт.
