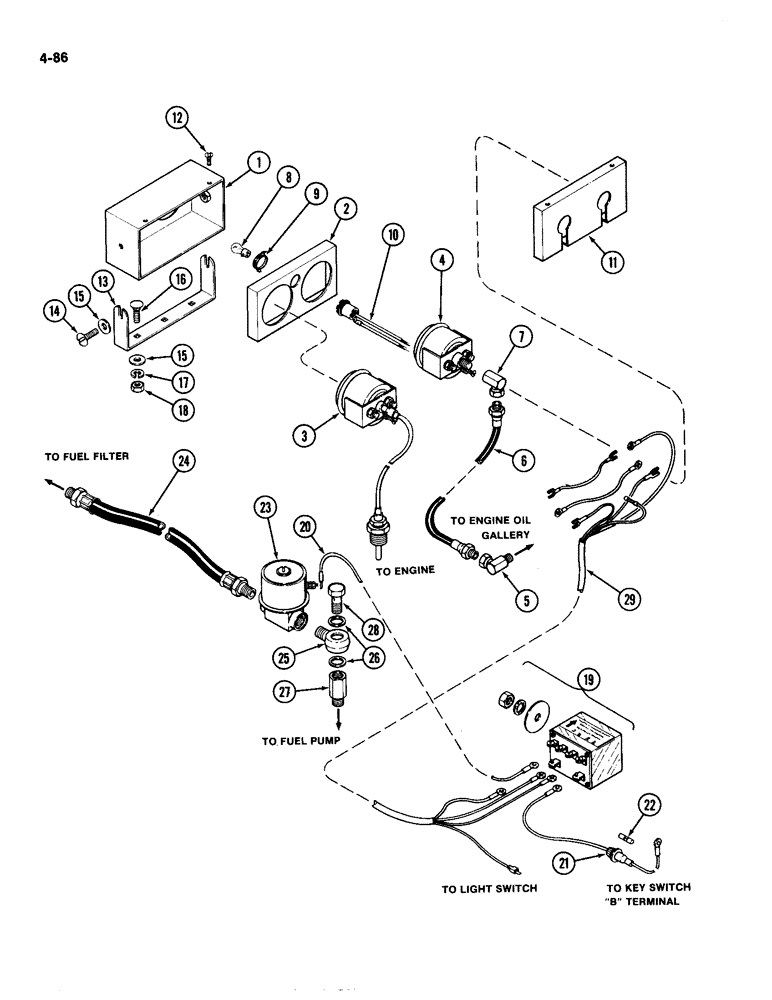

Запчасти Case IH 4490 (4-086) - ENGINE AUTOMATIC SHUT OFF KIT (04) - ELECTRICAL SYSTEMS

A162967

SHUT OFF KIT - engine, automatic (Machinery Item), Includes: Ref. 1 - 29

1шт.

1

A47906

PANEL

- gauge

1шт.

2

A47908

PLATE

- gauge holder

1шт.

3

A47911

GAUGE

ASSEMBLY - water temperature

1шт.

4

A47910

GAUGE

ASSEMBLY - oil pressure

1шт.

5

218-933

ELBOW,90 Degree, 1/8" NPTF Male x 1/8" NPSM Fem Sw

- swivel, 90 degree 1/8" PT x 1/8" PSM

1шт.

6

A47943

HOSE,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- oil pressure, 90" (2 286 mm) long

1шт.

7

218-1403

FITTING

ELBOW - swivel, 90" degree 1/8" PT x 1/8" PMS

1шт.

8

B50213

BULB

- light, (GE 53)

1шт.

9

A47916

CLAMP

- holding

1шт.

10

A47915

SOCKET

ASSEMBLY - light

1шт.

11

A47907

COVER

- panel, rear

1шт.

12

182-525

SCREW,Sl Pan Hd, #10 - 32 x 3/8"

- #6 x 3/8" NC pan head

2шт.

13

A47909

BRACKET

- mounting panel

1шт.

14

163-8

SCREW - #10 x 1/2" NF machine

2шт.

15

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 5/64" (7.1 x 15.9 x 2 mm)

4шт.

16

412-410

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 5/8", Gr 2

BOLT - 1/4 x 3/4" NC round head square neck

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

19

A47925

SWITCH

ASSEMBLY - magnetic

1шт.

20

A47926

WIRE - magnetic switch to fuel valve, 79" (2 007 mm)

1шт.

21

A47927

ELECTRICAL WIRE

WIRE AND HOLDER ASSEMBLY - switch to key switch, Includes: Ref. 22

1шт.

22

223-14

FUSE,10 Amp, Type SFE

- wire assembly, SFE 14 AMP

1шт.

23

A47917

VALVE

ASSEMBLY - fuel

1шт.

24

A47946

HOSE

- fuel, 15-3/8" (390.5 mm) long

1шт.

23

A47919

FITTING

- banjo type

1шт.

26

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

- banjo fitting (copper)

2шт.

27

A47944

ADAPTER

- extension

1шт.

28

A47945

BOLT

- connector (hollow)

1шт.

29

A47913

HARNESS

ASSEMBLY - shut off kit

1шт.
