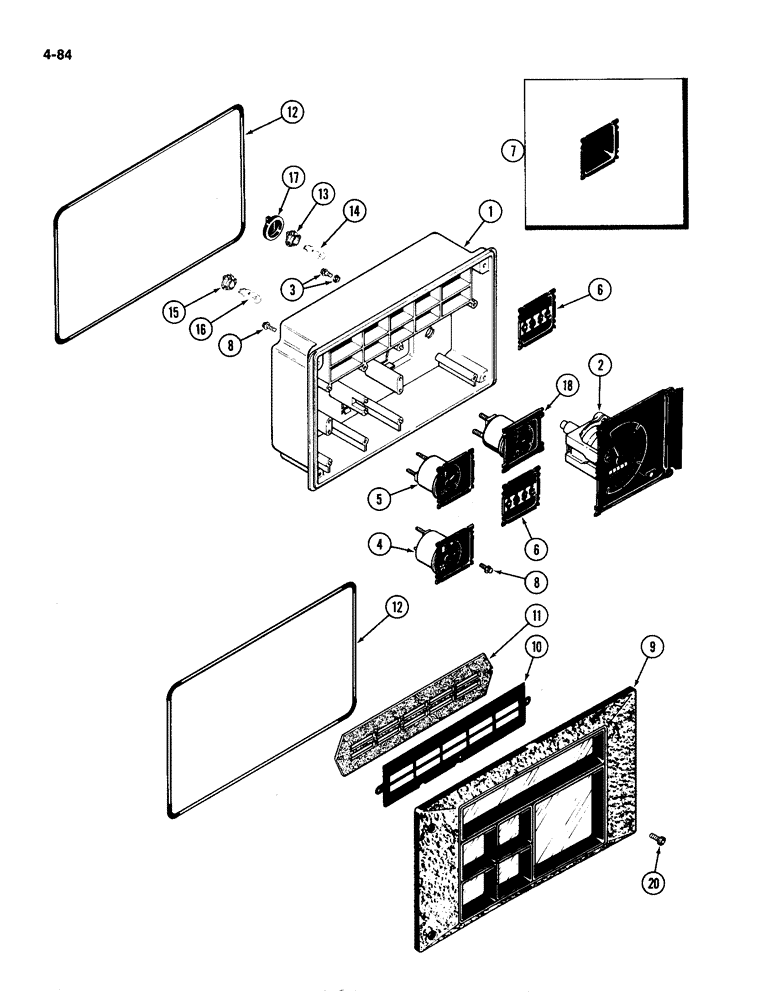

Запчасти Case IH 4490 (4-084) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

D71335

CASE ASSY.

CASE ASSEMBLY - cluster (Includes printed circuit)(Replaces A47690)

1шт.

2

A47684

TACHOMETER

- engine

1шт.

3

A47122

BOLT

ASSEMBLY - tachometer

2шт.

4

A47688

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

5

A47687

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - with CASE name (Order A45010)

1шт.

7

A45010

COVER

- blank, gauge opening (Service only)

1шт.

8

A45093

SCREW,Hex Slotted, 12.70"

- self-tapping

12шт.

9

A45007

LENS

LENS - bezel, instrument

1шт.

10

A47689

STRIP

- identification, warning lamps

1шт.

11

D71342

GASKET,3.05mm Thk

- strip

1шт.

12

D71343

GASKET,4.45mm Thk x 249.68mm ID

- lens and case

2шт.

13

A47125

PEDESTAL

SOCKET - lamp (green)

3шт.

14

W10478

LAMP

- warning (#194)

3шт.

15

A47123

SOCKET/RECEPTACLE

SOCKET - lamp (blue grey)

9шт.

16

D71346

TAIL LAMP,12V

BULB - lamp, gauge (#168)

9шт.

17

D71344

COVER

- lamp socket

3шт.

18

A154254

ELECTRICAL GAUGE

GAUGE - exhaust temperature (Replaces A47686)

1шт.

20

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- cluster mounting, #10-24 x 5/8" pan head

4шт.
