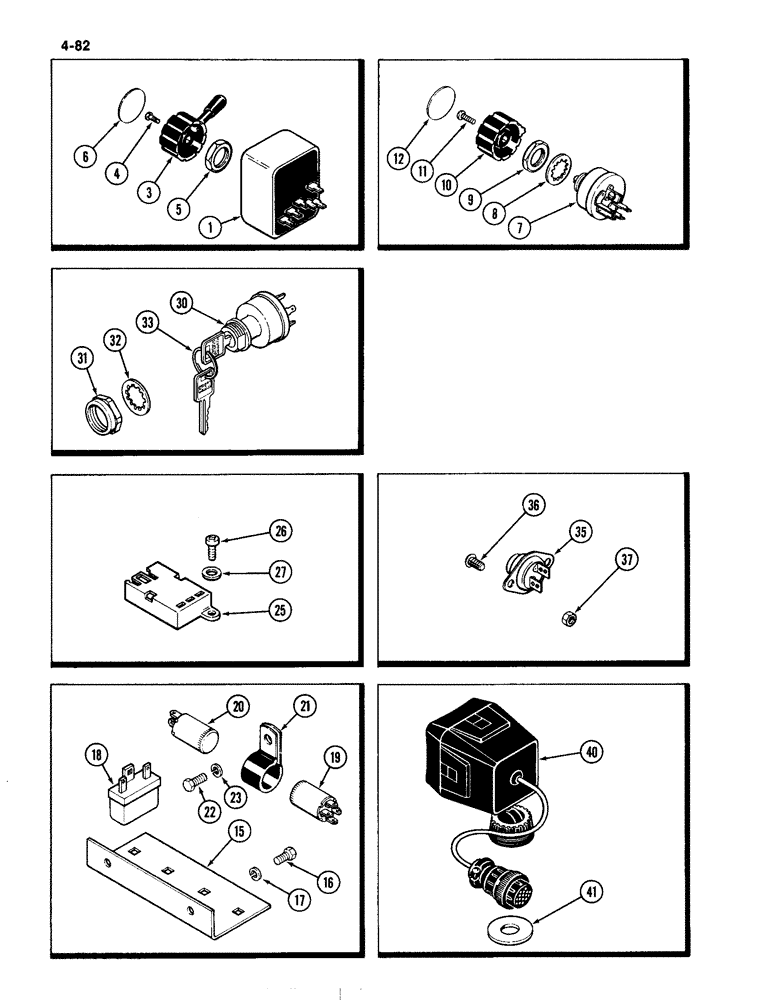

Запчасти Case IH 4490 (4-082) - INSTRUMENT PANEL COMPONENTS (04) - ELECTRICAL SYSTEMS

1

A77184

SWITCH

- turn signal or flasher

1шт.

3

A141736

KNOB

HANDLE - operating

1шт.

4

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

- #5-40 x 1/2" round head

1шт.

5

131-428

LOCK NUT,PAL, 3/4"-20

NUT - lock, 3/4" NF

1шт.

6

A160035

PLATE

- control handle

1шт.

7

A141607

SWITCH

- lamp

1шт.

8

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - lock, 5/8" internal Shakeproof

1шт.

9

A20467

NUT

- lock

1шт.

10

A141735

KNOB

- control

1шт.

11

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- #8-24 x 5/8" pan head

1шт.

12

A160035

PLATE

- control knob

1шт.

15

A149782

BRACKET

- warning buzzer

1шт.

16

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

18

A143506

BUZZER

- warning

4шт.

19

A160116

RELAY

- time delay, transmission pressure

1шт.

20

A145677

RELAY

- time delay

1шт.

21

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- relay mounting

1шт.

22

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

25

A162294

CONNECTOR, ELEC

MODULE - low coolant indicator (Replaces A147382)

1шт.

26

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- #10-24 x 3/4" pan head Phillips (replaces182-541)

2шт.

27

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16" (Replaces 192-18)

2шт.

30

A77312

SWITCH

- starting

1шт.

31

A776314

NUT - mounting

1шт.

32

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - lock, 1" internal Shakeproof

1шт.

33

A77313

SET OF 2 KEYS

KEYS - starting switch (Set of 2)(Also use for cab door)

1шт.

35

A36948

SWITCH

- push-button, cold start

1шт.

36

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

- #10-24 x 1/2" round head

2шт.

37

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - #10-24 hex Keps

2шт.

40

A160988

INDICATOR

ASSEMBLY - turn, rear wheel

1шт.

41

A30171

WASHER

- mounting

1шт.
